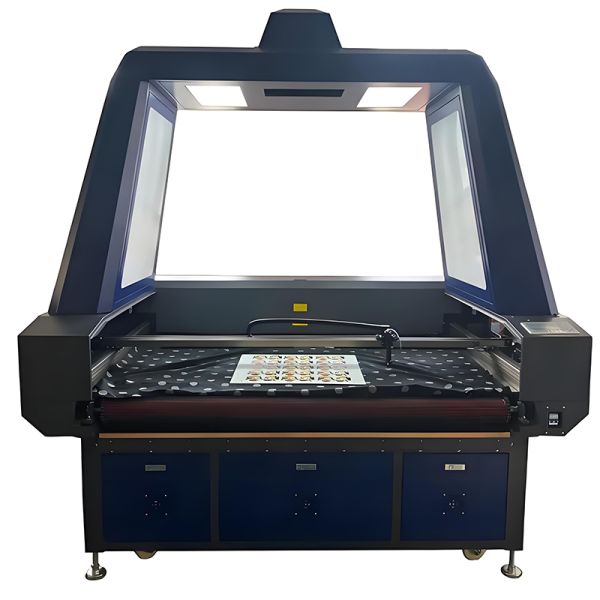

High-Speed 100W CCD Laser Label Cutting Machine CNC 1610 Fabric Laser Cutter for Rubber Supports AI BMP PLT Formats Gantry Type
High-Speed 100W CCD Laser Label Cutting Machine CNC 1610 Fabric Laser Cutter for Rubber Supports AI BMP PLT Formats Gantry Type
High-Speed 100W CCD Laser Label Cutting Machine CNC 1610 Fabric Laser Cutter for Rubber Supports AI BMP PLT Formats Gantry Type
High-Speed 100W CCD Laser Label Cutting Machine CNC 1610 Fabric Laser Cutter for Rubber Supports AI BMP PLT Formats Gantry Type
High-Speed 100W CCD Laser Label Cutting Machine CNC 1610 Fabric Laser Cutter for Rubber Supports AI BMP PLT Formats Gantry Type
High-Speed 100W CCD Laser Label Cutting Machine CNC 1610 Fabric Laser Cutter for Rubber Supports AI BMP PLT Formats Gantry Type
High-Speed 100W CCD Laser Label Cutting Machine CNC 1610 Fabric Laser Cutter for Rubber Supports AI BMP PLT Formats Gantry Type
High-Speed 100W CCD Laser Label Cutting Machine CNC 1610 Fabric Laser Cutter for Rubber Supports AI BMP PLT Formats Gantry Type
High-Speed 100W CCD Laser Label Cutting Machine CNC 1610 Fabric Laser Cutter for Rubber Supports AI BMP PLT Formats Gantry Type
High-Speed 100W CCD Laser Label Cutting Machine CNC 1610 Fabric Laser Cutter for Rubber Supports AI BMP PLT Formats Gantry Type
High-Speed 100W CCD Laser Label Cutting Machine CNC 1610 Fabric Laser Cutter for Rubber Supports AI BMP PLT Formats Gantry Type
High-Speed 100W CCD Laser Label Cutting Machine CNC 1610 Fabric Laser Cutter for Rubber Supports AI BMP PLT Formats Gantry Type
Specifications
Applicable Material :
Other, Acrylic, PAPER, RUBBER, leather
laser type :
CO2
Brand Name :
HM
Place of Origin :
Hubei, China
cnc or not :
Yes
condition :
New
configuration :
Gantry Type
control system brand :
Ruida
cooling mode :
Water Cooling
Cutting Speed :
500m/min
cutting thickness :
0-10 mm
Feature :
Programmable
graphic format supported :
AI, DXF, PLT, BMP, DXP
guiderail brand :
HIWIN
Key Selling Points :
Flexible Manufacturing
laser head brand :
Other
mode of operation :
Continuous Wave
optical lens brand :
II-VI
products handled :
Sheet Metal And Tube
servo motor brand :
Leadshine
warranty :
1 Year
Weight :
800
Product name :
C02 Laser Engraving Cutting Machine
Working area :
1600*1000mm
Power :
100-130w
Application meterial :
Roll fabric, textiles, lyrca, leather, vinyl, etc
MOQ :
1
Price :
$5,000-6,000
Description
SPECIFICATIONS FOR SCU1610 CO2 laser fabric cutting machine
Working platform size
1600*1000 mm
Laser Power
100w/130w/150w
Controlling system
RUIDA
Software
RDCAM
Support format
PLT, BMP, DXF, DST, T100, etc
Process Material
Non-metal Materials
Max Cutting speed
500mm/s
Engraving speed
2000mm/s
Repeated accuracy
±0.2mm
Min. cutting character
3mm
Max. cutting depth
0-20mm(it's up to the material)
Cooling ways
Circulation water cooling
Working temperature
0-35°C
Working humidity
5-95%
Working Power
220V/50Hz/2.5kVA(Customize)
Accessories
Air pump
Exhausting Fan
Air Cooling
Dimension
2280*1600*1230mm
Net weight
460KGS

FAQ:
Q: How to choose suitable model?
A: Please provide a photo of the product you used before or advise us your needs, we will give suggestions.
Q: What's your MOQ?
A:Normally one piece. If more, we can talk about discount. We can ship all parts you ordered together.
Q: Can I get discount?
A: The more you order, the more discount you will get.
Q: What is your terms of payment?
A: 100% in advance. Payment>=50000USD, 50% T/T in advance, balance before shipment.
Q: How long is your delivery time?
A: When the order is confirmed, 3-5 working days for the small order, 2-6 weeks for the bulk depending on the quantity and product type.
