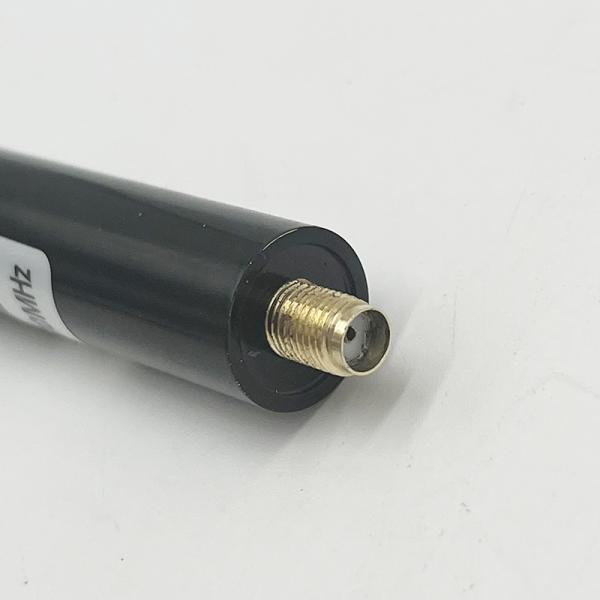

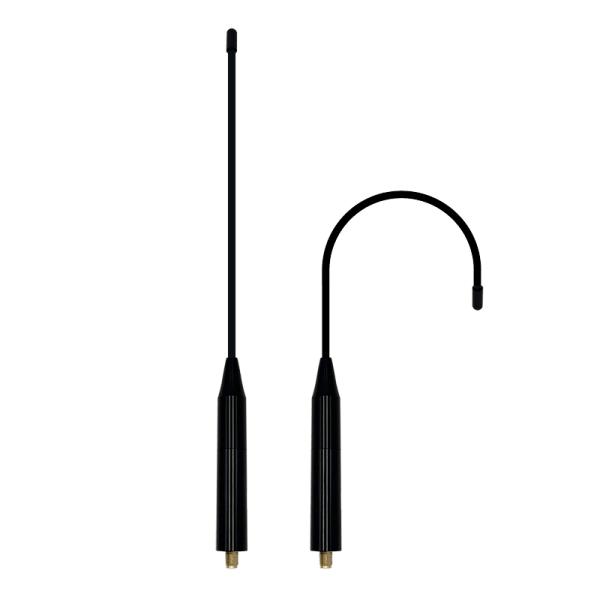

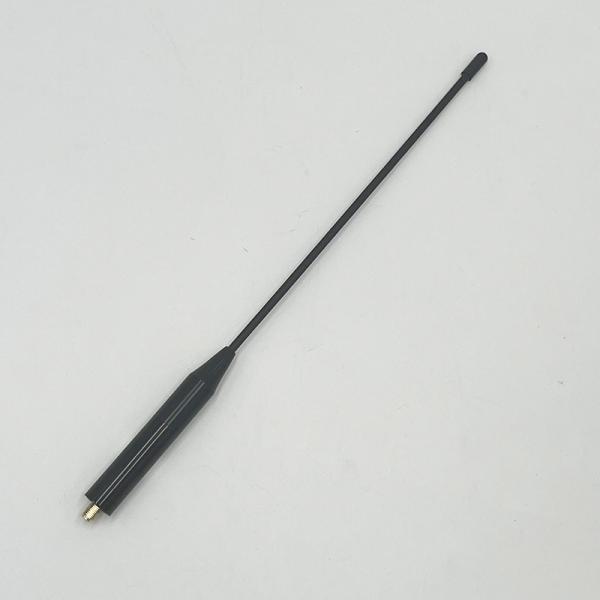

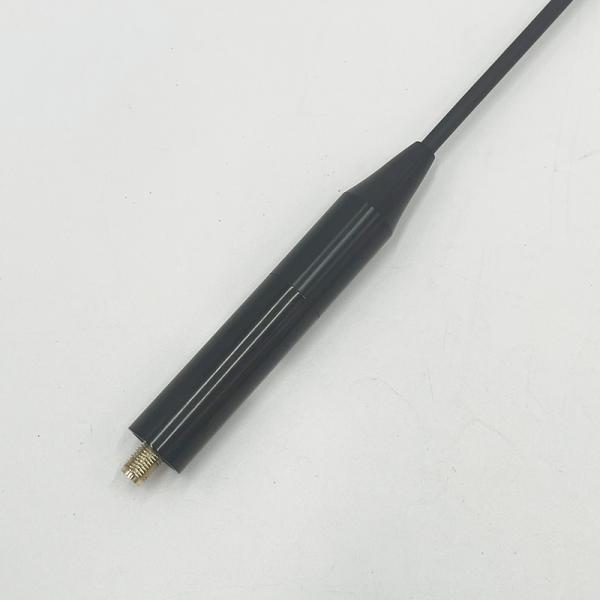

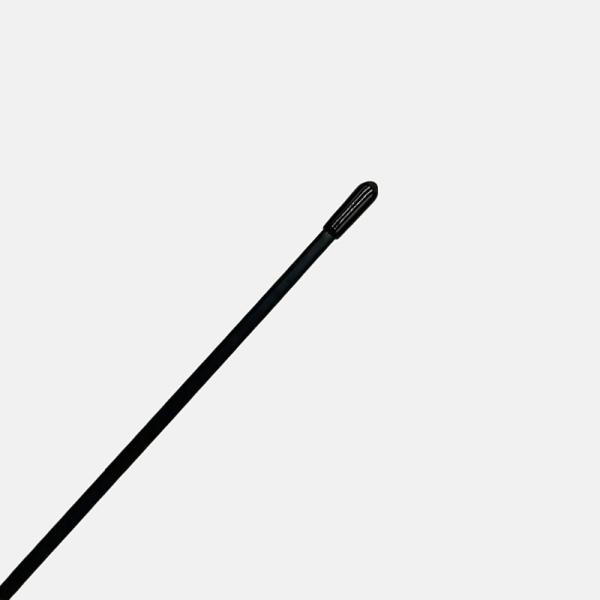

SMA Female 20-512M Handheld Device Soft Antenna
SMA Female 20-512M Handheld Device Soft Antenna
SMA Female 20-512M Handheld Device Soft Antenna
SMA Female 20-512M Handheld Device Soft Antenna
SMA Female 20-512M Handheld Device Soft Antenna
SMA Female 20-512M Handheld Device Soft Antenna
SMA Female 20-512M Handheld Device Soft Antenna
SMA Female 20-512M Handheld Device Soft Antenna
SMA Female 20-512M Handheld Device Soft Antenna
SMA Female 20-512M Handheld Device Soft Antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11855-B
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
20-512MHz
VSWR :
<2.0
Peak Gain :
1dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 20-512MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 1dBi
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 46-98°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA-K connector
Dimension Φ15*300mm
Weight 0.05Kg
Antenna material Copper Rod
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

SMA Female 20-512M Handheld Device Soft Antenna

2.2 Total Efficiency & Gain:

Frequency (MHz) 20 50 100 150 200 250 300 350 400 450 500
Gain (dBi) -1.9 -1.7 -2.3 -2.2 -1.8 -2.1 -2.0 -0.1 -1.4 -3.0 -2.8
Efficiency (%) 11.1 24.6 27.9 32.3 27.5 27.0 23.1 26.5 32.2 31.4 30.6
SMA Female 20-512M Handheld Device Soft Antenna
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
100MHz SMA Female 20-512M Handheld Device Soft Antenna SMA Female 20-512M Handheld Device Soft Antenna SMA Female 20-512M Handheld Device Soft Antenna
300MHz SMA Female 20-512M Handheld Device Soft Antenna SMA Female 20-512M Handheld Device Soft Antenna SMA Female 20-512M Handheld Device Soft Antenna
500MHz SMA Female 20-512M Handheld Device Soft Antenna SMA Female 20-512M Handheld Device Soft Antenna SMA Female 20-512M Handheld Device Soft Antenna
