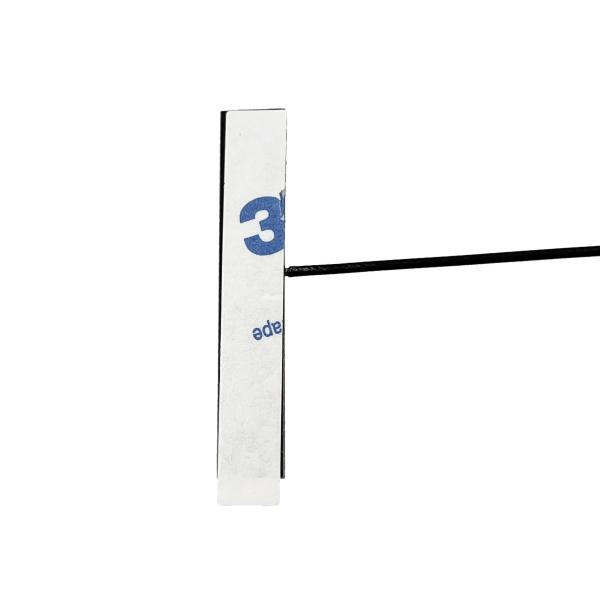

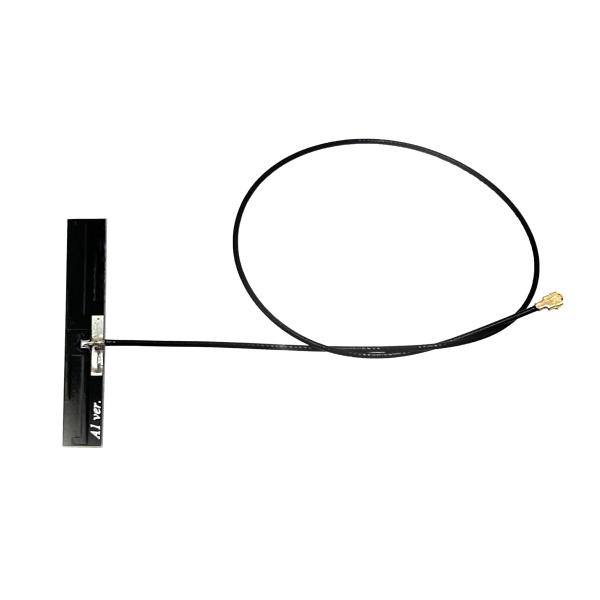

2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7
2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7
2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7
2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7
2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7
2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10221-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz; 5150-5850MHz
VSWR :
<2.0
Peak Gain :
2dBi
Impedance :
50 OHM
Description

2.4G5.8G dual-band wifi Bluetooth built-in laptop antenna IPEX-1 omnidirectional PCB antenna 42x7

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz 5150-5850MHz
S.W.R. <= 2.0 <= 2.0
Antenna Gain 1.5dBi 2dBi
Efficiency ≈56% ≈52%
Polarization Linear Linear
Horizontal Beamwidth 360° 360°
Vertical Beamwidth 93-97° 16-68°
Impedance 50 Ohm
Max Power 50W
B. Material & Mechanical Characteristics
Cable Type RF1.13 Cable
Connector Type MHF1 Plug
Dimension 42*7mm
Weight 0.001Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 65 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7

2.2 Total Efficiency & Gain:

Frequency (MHz) Gain (dBi) Efficiency (%)
2400 1.0 60.1
2410 0.9 59.0
2420 0.8 56.2
2430 0.9 55.1
2440 0.9 54.8
2450 1.0 56.1
2460 1.2 58.7
2470 1.3 58.4
2480 1.2 55.0
2490 1.3 53.9
2500 1.5 56.2
5150 1.6 54.6
5200 1.6 58.2
5250 0.9 50.0
5300 1.3 50.6
5350 1.8 50.1
5400 2.2 50.3
5450 2.2 49.7
5500 2.4 51.4
5550 1.9 50.0
5600 2.0 52.7
5650 1.8 53.5
5700 1.6 53.4
5750 1.4 51.2
5800 1.8 56.0
5850 1.8 54.8
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
2400MHz 2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7 2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7 2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7
2450MHz 2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7 2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7 2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7
2500MHz 2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7 2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7 2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7

5.8G 3D 2D-Horizontal 2D-Vertical
5150MHz 2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7 2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7 2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7
5500MHz 2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7 2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7 2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7
5850MHz 2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7 2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7 2.4G 5.8G Dual Band Wifi Bluetooth Built In Laptop Antenna IPEX-1 Omnidirectional PCB Antenna 42x7
