Portable Leeb Hardness Measuring Device With RS232 PC Connection
Portable Leeb Hardness Measuring Device With RS232 PC Connection
Specifications
Brand Name :
LEEB
Model Number :
Leeb140
Certification :
CE, FCC, EAC, ISO
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Based on quantity
Payment Terms :
T/T, L/C, Western Union, Paypal
Supply Ability :
1000pcs per month
Delivery Time :
7 work days
Packaging Details :
Equipemnt box
Name :
Hardness tester
Hardness scales :
HL, HRC,HRB, HS,HB,HV
Standard :
ISO, ASTM, GB/T
Accuracy :
Within ±6HLD/ ±1.5HRC
Memory :
600 groups
Display :
Digita, LED Screen
Dimension :
230×86×46mm
Theory :
Leeb, Dynamic Test
Application :
Metal
Probe Options :
D,DC,D,DC,DL,D+15,G,C,E
Calibration :
On HL, HB, HRC Blocks
PC connection :
Available RS232/ USB
Shell :
Lightweigt Plastic
Warranty :
1 Year
Description

Portable Leeb Hardness Measuring Device With RS232 PC Connection

Portable Leeb Hardness Gauge For Metal Materials

Features and Function:

  • With built-in thermal printer
  • PC Software for data transmission, analysis and measurement reports printing
  • Direct calibrate on HL,HRC,HB, and freely switch to 6 different hardness scales
  • Large LCD screen with back-light, showing all functions and parameters
  • Test at any angle and direction, even upside down
  • Conversion to tensile strength (U.T.S)
  • Optional probe D,DC,D,DC,DL,D+15,G,C,E
  • Rechargeable Li-ion battery

Measuring Materials:

  • Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel.

Application Fields:

  • Mechanical or permanent assembly components have been installed, the test space is very narrow, requires the original record regular test results
  • The bearings and other parts, heavy work-pieces, metal material, pressure vessel, failure analysis of turbine generator unit and equipment
  • Large work-piece within a wide range of more rapid test measurement site

Technical Specification

Model Leeb140
Measuring Range (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB
Hardness parameter HL, HRC,HRB, HS,HB,HV
Accuracy ±6HLD/ ±1.5HRC
Display LCD with back-light
Memory 600 groups
PC Connection Available
Printer

Build-in High-speed Thermal Printer,

Width for printer paper:44.5±0.5mm
Battery type Rechargeable Li-ion battery
Operating temperature -20℃~+60℃
Dimensions 230×86×46mm
Impact Device Type D,DC,DL,D+15,G,C,E
Weight 400g

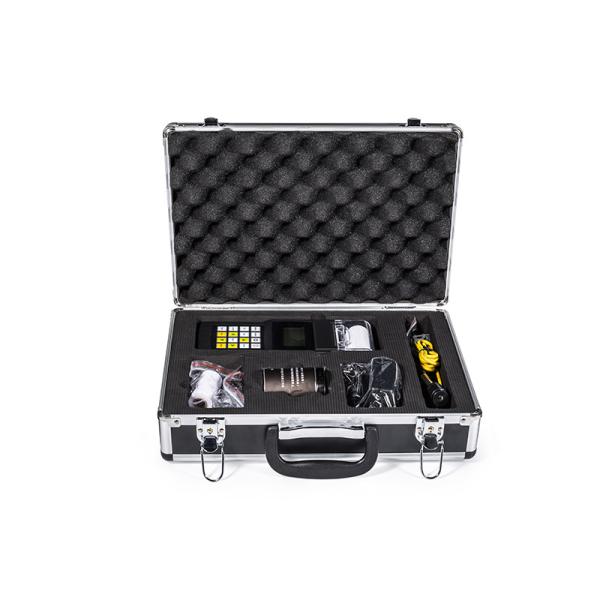

Standard Delivery Main unit,Impact Device type D,Operation manual,Power adapter,Small supporting ring,Cleaning brush,Certificate,Calibration block,paper of Printer.
Optional Accessories Optional Impact Devices,Shaped support ring,Paper for printer
Portable Leeb Hardness Measuring Device With RS232 PC Connection
Portable Leeb Hardness Measuring Device With RS232 PC Connection
