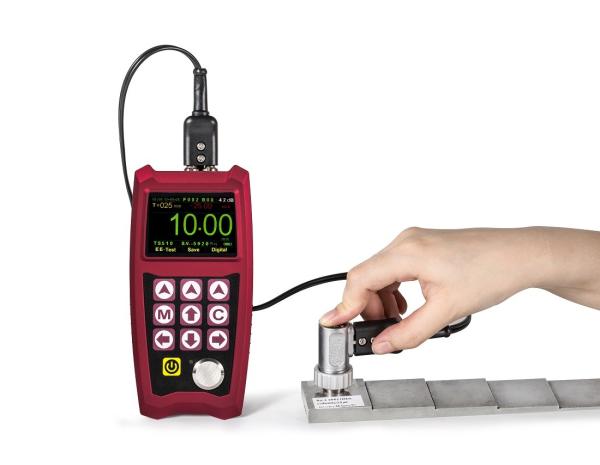

High Definition Color Display Ultrasonic Thickness Gauge For Plastic
High Definition Color Display Ultrasonic Thickness Gauge For Plastic
High Definition Color Display Ultrasonic Thickness Gauge For Plastic
High Definition Color Display Ultrasonic Thickness Gauge For Plastic
Specifications
Brand Name :
LEEB
Model Number :
Uee960
Certification :
CE, FCC, EAC, ISO Certification
Place of Origin :
China
MOQ :
1 Set
Price :
Based on quantity
Payment Terms :
T/T, Paypal, L/C, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
7 work days
Packaging Details :
Equipment box
Product :
Ultrasonic Thickness Gauge(EE and PE test)
Function :
Measuring the thickness through the coating
Feature :
High-speed of reflection and measuring
Data Memory :
128,000 groups of data, 255 groups of B Scan
Screen :
High-definition color display
Warranty :
3 years
Description

High Definition Color Display Ultrasonic Thickness Gauge For Plastic

Ultrasonic Thickness Gauge, through the coating, with B scan,3 years warranty

Functions & Features

● High Precise measuring performance.

● Two ways of measuring: PE-testing and EE-testing.

● EE-test function (Echo to Echo), measuring the thickness of the workpiece through the coating on its surface.

● Large measuring range with B scan function, showing graphs directly.

● High-speed of reflection and measuring: Application with 2 industrial control CPU systems allow independent work of instrument measuring control and the data processing.

● Measuring sound velocity: according to the known thickness of the object, the sound velocity of it can be measured directly.

● Large memory to save 128,000 groups of measuring data and 255 groups of B Scan graphs.

● PC Software for data transmission, analysis, and measurement reports printing

● High-definition color display.

● Integrated with a 4mm calibration block.

● With Calendar and clock, auto-recording measuring date and time.

● With Auto power-off function.

● 3 years warranty and life-long services.

Measuring Materials

● Adapted to all kinds of materials( with or without coating surface), which are good conductor of ultrasonic wave, such as metals(steel, cast iron, aluminum, copper and etc), plastic, ceramics, composites, epoxies, glass and etc.

Technical Parameters

Model Uee960
Measuring range(mm) 0.75～1000.00mm
Frequency (MHz) 0.5～15.0MHz
Resolution(mm) 0.01mm

Accuracy(mm)

± 0.1 mm ( H ＜10mm)

±(0.5%H+0.01) (H＞10mm)

H refers to the thickness of testing piece
Max coating thickness 1mm
Measuring range (through coating) 2～150mm
Velocity range(m/s) 1000～9999m/s
Type of probe Double crystal
Storage 128,000 groups (measuring data); 255 groups(B Scan graphs)
Display 2.4" High-definition color display
Display units mm & inch
Output port Mini USB
Operating temperature -20℃～50℃
Power supply 3 * AA
Dimensions 150×75×32(mm)
Weight 275g

Standard Configuration

Name Quantity Name Quantity
Main unit 1 Coupling agent 1
Standard probe 1 AA alkaline battery 3
Cable for probe 1 PC software 1
Users’ Manual 1 Packing list 1
Qualified Certificate 1 Warranty card 1

High Definition Color Display Ultrasonic Thickness Gauge For PlasticHigh Definition Color Display Ultrasonic Thickness Gauge For Plastic

High Definition Color Display Ultrasonic Thickness Gauge For PlasticHigh Definition Color Display Ultrasonic Thickness Gauge For Plastic

High Definition Color Display Ultrasonic Thickness Gauge For Plastic

High Definition Color Display Ultrasonic Thickness Gauge For Plastic
