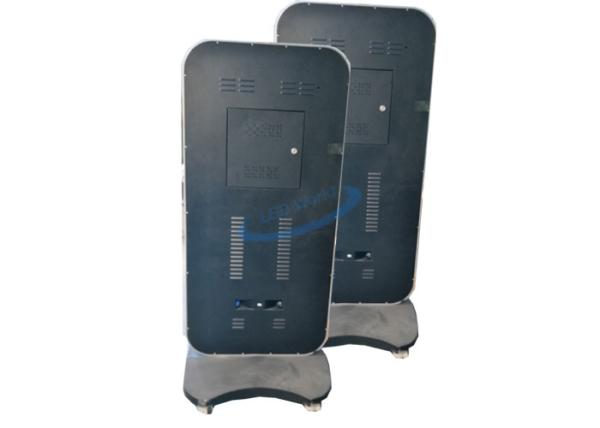

P6 full color led advertising player display board for outdoor use
Product description:
- Voice Channel--Inbuilt Mini-speaker makes audio and video synchronize to get more attraction;
- Brightness requirements, we design this players for both indoor & outdoor application, and the brightness ranges from 1000 to 5000cd;
- Covered by tempered glass, make the display screen stable, safe and good viewing effect;
- Can be with wheels below;
- Cooling control principle;
- The brightness can up to 5000 cd/m2;
Aplication:
Our full color LED display are widely used in Highway,Lobby,concert,shopping mall,Entertainment centers,public facilities,concert hall,subway,stadium,theme parks and so on .
Prameter:
| Specification | P6 |
| Resolution | 32(H)×32(V) |
| Pixel Pitch | 6mm |
| LED Configuration | 1R1G1B SMD2121 |
| Pixel Density | 27777 pixels/ m2 |
| Module Size | 160*160mm |
| Driving IC | MBI5024 |
| Driving Method | Static Scan, Constant Current |
| Cabinet Weight | 32kg/m2 |
| Hanging Weight Support | 2T |
| Surface Flatness | ±0.25 |
| Brightness | ≥5500cd/ m2 |
| View Angle | 140°/140° |
| Gray Scale | 16bits |
| Display COLOR | 281 trillion |
| Brightness Adjustment | 0~100% |
| Operation Power | AC220V/50HZ or AC110V/60HZ |
| Max. Power Consumption | 780W/ m2 |
| Average Power Consumption | 310W/ m2 |
| Control Mode | Synchronous display with control PC by DVI |
| Frame Update Frequency | 60~85HZ |
| Screen Refresh Frequency | 300~1000Hz |
| Gamma Correction | -5.0~+5.0 |
| Support Input | Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
| Control Distance | Ethernet cable<120m or Fiber Optic<10Km |
| Support VGA Mode | 1024x768,1280x1024,1600x1200,1920x1280 |
| Brightness Correction | Pixel, Module, Cabinet |
| Operating Temperature | -20°~+60° |
| Operating Humidity | 10~95% RH |
| Operating Life | 100,000hours |
| MTBF | 10000hours |
| Out of Control Rate | <0.02% |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
Why choose us:
- No MOQ;
- Good service whenever;
- "attractive price! If you have any urgent questions, pls contact me without hesitation;
- 100% QC inspection before shipping;
- OEM & ODM available;
- Quality advantage: From material to finished product, from design to produce, we control all steps;
Our service:
- We offered technical advice to you before buying our products;
- Monthly production capacity: 3000 Sq. M;
- In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees;
- Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions;
- Well-trained and experienced staffs to answer all your enquires in fluent English;
Product detail:
