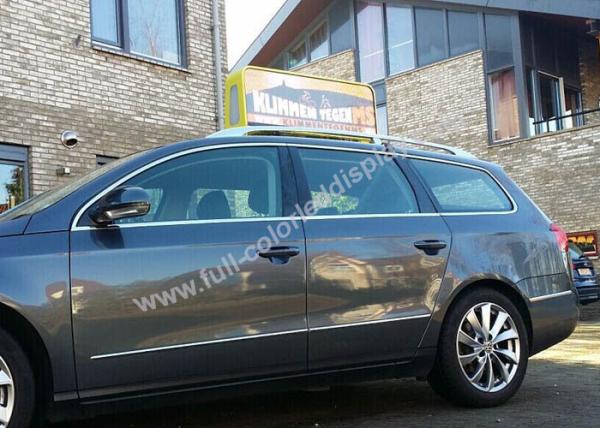

Taxi LED display_201905211645121.pdfP5 Full Color LED Taxi Top / Roof LED Moving Sign for outdoor advertising
Feature:
- High brightness, High refesh rate, Wide view angle with real pixel RGB, good performance;
- Multiple control Options;
- It can support the most popular formats, such as, AVI, MOV, FLV, MP4, JPG, BMP, SWF, TXT, etc;
- Flexible form: Continuity, overlying, combination of dynamic and static playing, various effects include rolling moving, typewriting, gradual changing and so on;
- Long time warranty;
- Made with SMD2525 outdoor waterpoof led lamps, high brightness,up to 4800nits;
- Energy Saving≥50%, Environment Protection;
- Easy operation and control, simple installation and maintenance;
- Black SMD LEDs;
- Adopting SMD technology, viewers can enjoy a wider viewing angle with better flatness,which is best choice for outdoor users;
Parameter:
Numbers | Technical indexes | P5 Taxi Top LED Display |
1 | Pixel pitch | 5mm |
2 | Module size | 320mm× 160mm |
3 | Module resolution | 64× 32 |
4 | Module density | 40, 000dots/sqm |
5 | Pixel configuration | RGB ( SMD 3 in 1 ) |
6 | Red wavelength | 625± 2nm |
7 | Green wavelength | 525± 2nm |
8 | Blue wavelength | 470± 2nm |
9 | Colors | 16777216 |
10 | Best viewing distance | more than 5 m |
11 | Horizontal viewing angle | 140° |
12 | Vertical viewing angle | 70° |
13 | Maximum power consumption | ≤ 1200W/m2 |
14 | Brightness | ≥ 4800cd/m2 |
15 | Gray scale | 16bits of per color |
16 | Color temperature | 6500K |
17 | Control method | Asynchronization with 3G |
18 | Driving method | 1/8 scanning |
19 | Frame frequency | 60Hz |
20 | Refresh frequency | ≥ 2000 Hz |
21 | Working voltage | AC220V/110V± 10% |
22 | IP grade | IP65 |
23 | Working temperature | -20° C~80° C |
24 | MTBF | More than 10, 000 hours |
25 | Life span | More than 100, 000hours |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
