Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-FI 2.5
Certification :
RoHS,FCC,CCC,CE
Place of Origin :
China
MOQ :
1 square meter
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000 square meter /Month
Delivery Time :
12~18 days after receiving the deposit
Packaging Details :
Plywood cartons or wooden case
Refresh Rate :
300-3000HZ adjustable
IP Rating :
IP20
Operating Temperature :
-20℃ ~ +40℃
Cabinet Material :
Cold Rolled Steel
Pixel Pitch :
2.5mm
Pixel Density :
160,000
Pixels/Cabinet :
384x384
Brightness :
1300cd/㎡
Description

Indoor fixed led display_201905211023311.pdf

High definition P2.5 indoor fixed led video wall with customized cabinet

Features:

  • 2 years warranty, best after-sales service;
  • Colorful moving videos and pictures;
  • Price Advantage: We have the best competitive price at the market, also have the same even better quality.;
  • widely used in building showing;
  • Dot to dot calibration system: stable &flicker free display with wide viewing angle,super contrast &brightness levels for vivid images even in strong sunlight;
  • Higher contrast rate, showing sharp image quality;
  • Energy Saving≥50%, Environment Protection;
  • Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL, DVI, AVI, VGA, SDI, MOV, MPG, etc;
  • Adopting the SMD three integrated technology, larger viewing angle, and better surface smoothness;
  • Super wide viewing angle, horizontal 140 degree, vertical 120 degree;
  • Rich indoor full color LED display screen engineering experience both in domestic and international market;

Parameter:

Items P2.5mm
Pixel 1R1G1B
Configuration SMD 3-in-1
Pixel Pitch 2.5mm
Pixel Density 160,000
Module Size(mm) 160x160
Pixels/Module 64x64
Cabinet Size(mm) 960x960
Pixels/Cabinet 384x384
Cabinet Weight 37KG
Brightness 1300cd/㎡
Viewing Distance >2.5m
Power Consumption Max: 800
(W/㎡) Ave: 240
Driver Mode 1/32 scan
Cabinet Material Cold Rolled Steel
Refresh Rate 300-3000HZ adjustable
LED Life 100,000 hours
Supply Voltage AC220V/50HZ; AC110V/60HZ
Operating Temperature -20℃ ~ +40℃
Operating Humidity 10% - 90%
Viewing Angle H: 120°; V: 120°
Gray Scale Red, Green and Blue each 16K
Display Color 4096 Billion
IP Rating IP20
Display Capability Text, Graph and Video
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Trade term:

  • Package: Anti-shaking wooden cabinet, Carton package;
  • Warranty time:2 years,lifelong maintaining;
  • Shipping freight are quoted under your requests;
  • Packing: Anti-shaking wooden cabinet /Air flight case/carton;

Our company:

usage: broadcast, live show, TV studio, conference, party and wedding ceremony, they are also used as advertising screen in shopping mall center, building street, highway and so on.
Company in good faith with the talents and distribution to join the LED display system and common development, and make due contribution to the development of LED display system.
Our company technology strength is among the front row in this area, with a vigorous team.
Shenzhen LED World co.,ltd consistent source of strength for the customer is the company's growth and expansion, the company has the perfect pre-sale tracking service system and truly customer -centric marketing module.

Product detail:

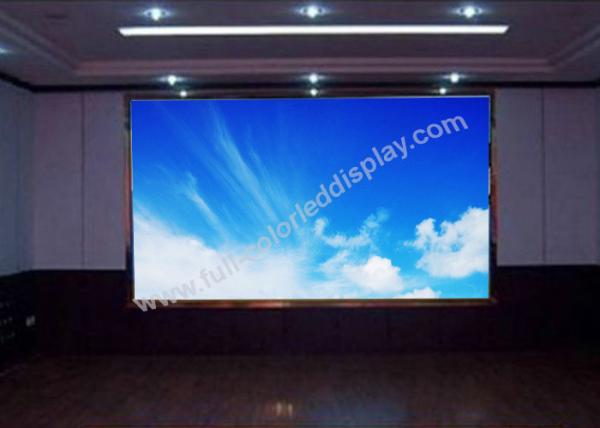

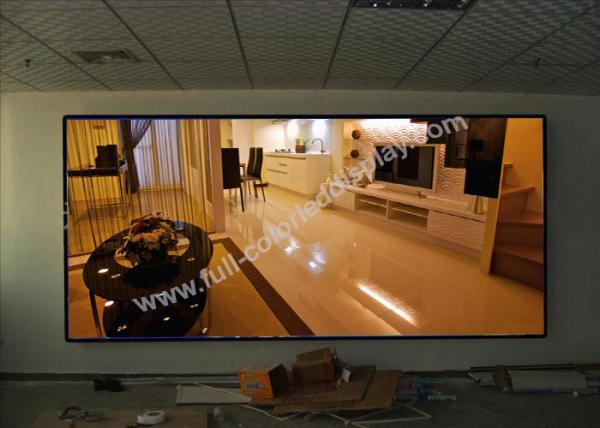

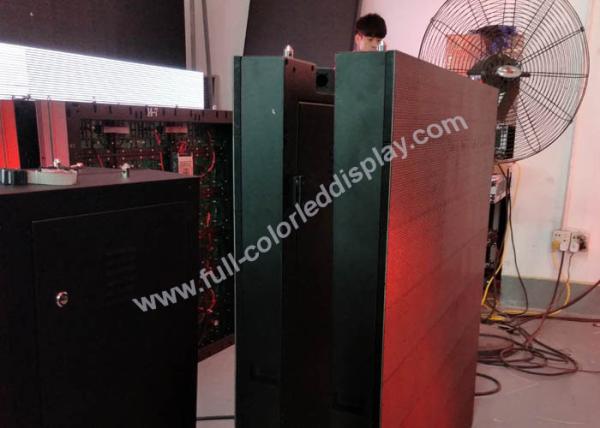

High Definition P2.5 Indoor Fixed LED Display Customized Cabinet

High Definition P2.5 Indoor Fixed LED Display Customized Cabinet
