Perimeter Led Display P10 / P16 , Sport Led Screen Good Heat Dissipation
Perimeter Led Display P10 / P16 , Sport Led Screen Good Heat Dissipation
Perimeter Led Display P10 / P16 , Sport Led Screen Good Heat Dissipation
Perimeter Led Display P10 / P16 , Sport Led Screen Good Heat Dissipation
Perimeter Led Display P10 / P16 , Sport Led Screen Good Heat Dissipation
Perimeter Led Display P10 / P16 , Sport Led Screen Good Heat Dissipation
Perimeter Led Display P10 / P16 , Sport Led Screen Good Heat Dissipation
Perimeter Led Display P10 / P16 , Sport Led Screen Good Heat Dissipation
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-SDO 10 / 16
Certification :
CE,RoHS,FCC,CCC
Place of Origin :
China
MOQ :
1 square meter
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 square meters
Delivery Time :
10-18 working days after received your payment
Packaging Details :
Plywood cartons or Flight case package
Power consumption/tile :
P10 average 300w/m2, max 650w/m2
Max stacking :
20 cabinets
IP rating :
IP65/54
Driving IC :
MBI5124
LED type :
DIP 5454
Tile/display surface in sqm :
0.92
Max power cascade connection :
5 cabinets
Processing :
16 bit
Description

Stadium outdoor LED display.pdf

Outdoor P10 / P16 Full Color LED Sign Board for Stadium Perimeter MBI5124 IC .

Features:

  • Aluminum mateial panel,light weight and good heat dissipation;
  • Adjustable Viewing Angle: The brackets are adjustable on angle, gradient of the perimeter display can be changed easily according the viewers viewing angle;
  • High level: High level protection, front and rear can reach to IP65;
  • Outdoor full color LED Display, high brightness, visiable under direct sunshine;
  • 16 bit color, 16384 gray scale, refresh rate over 1920Hz/S so the video or images on the LED screen are very vivid and fresh. People who see it will get shocked by this amazing viewing experience;
  • Product performance: 100,000 hours efficient life-span & 10,000 hours MTBF;
  • Hign brightness and adjustable, short response time, dot to dot maintenance;
  • Both front and rear access are available;

Parameter:

Pixel Pitch: 10mm 16mm
LED type: DIP 5454 DIP346
Pixel density : 10000/sqm 3906/sqm
Brightness 7000 nits 7500 nits
Driving IC MBI5124 MBI5124
Power consumption/tile : average 300w/m2, max 650w/m2 average 250w/m2, max 450w/m2
Module Size(mm) 160×160 mm 256×128 mm
Cabinet Size(mm) 960×960 mm 1024×896 mm
Operation power voltage : 110-220 V / 50-60 HZ
Tile/size (W×H×D) in mm : 1024×896×120
Tile/display surface in sqm : 0.92
Cabinet weight: 43kg 45kg
IP rating : IP65/54
Processing: 16 bit
Refresh rate : >1920HZ
Max stacking : 20 cabinets
Max power cascade connection : 5 cabinets
Operating Temp/Humidity : Temp:-20°C ~ 50°C Humidity10 ~ 90%RH
Storage Temp/Humidity: Temp:-40°C ~ 60°C Humidity10 ~ 90%RH
Operation humidity: 10-90%
Storage humidity: 10-90%
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our company:

Shenzhen LED World co.,ltd is a professional LED media/video display manufacturer.
Customer satisfaction is our prime objective and our high quality LED video display screen used in more than 140 countries and win a high reputation.
usage: broadcast, live show, TV studio, conference, party and wedding ceremony, they are also used as advertising screen in shopping mall center, building street, highway and so on.

Our service:

  • We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you;
  • Your inquiry related to our products or prices will be replied in 24hrs;
  • Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on;

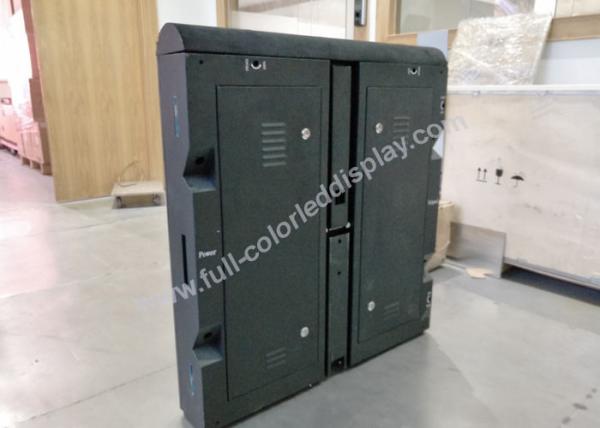

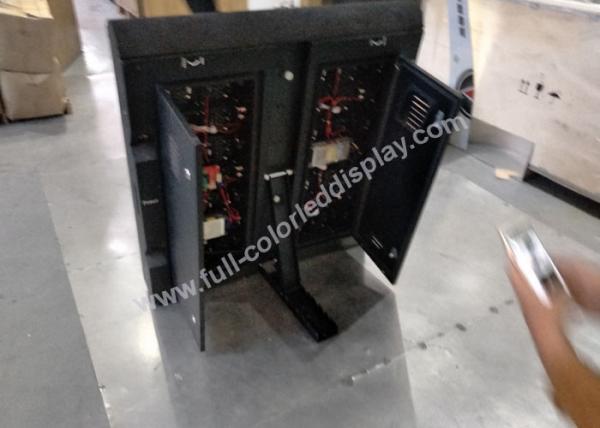

Product detail:

Perimeter Led Display P10 / P16 , Sport Led Screen Good Heat Dissipation

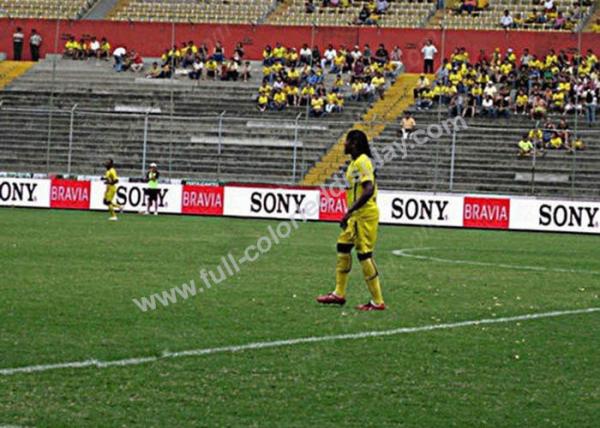

Project case:
Perimeter Led Display P10 / P16 , Sport Led Screen Good Heat Dissipation
