Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Specifications
warranty :
2 years, 5 years
Content Management System :
No
Remote Device Management :
No
type :
LED
Brand Name :
Chipshow
application :
Outdoor
use :
shopping mall
media available :
Photo, EDA/CAD Models, datasheet
Model Number :
C-Slim(ca)
Place of Origin :
China
pixels :
5mm
Brightness :
5000cd
Pixel pitch :
5mm
White balance :
5000 CD/㎡
Maximal power/㎡ :
≤600W/㎡
Average power/㎡ :
≤200W/㎡
Working voltage :
4.6V
Cabinet material :
Cast aluminum
Density :
40000 Dots/㎡
Color temperature :
6000k-8000k
Refresh frequency :
≥13bit
Weight :
25kg / Cabinet
Description
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen

FEATURES

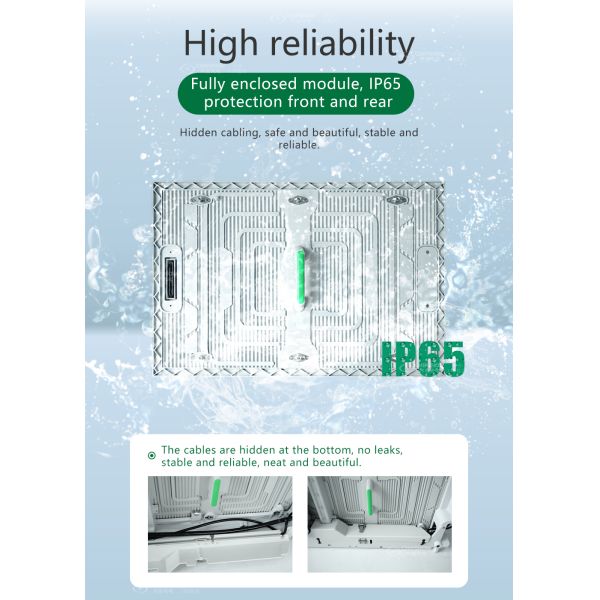

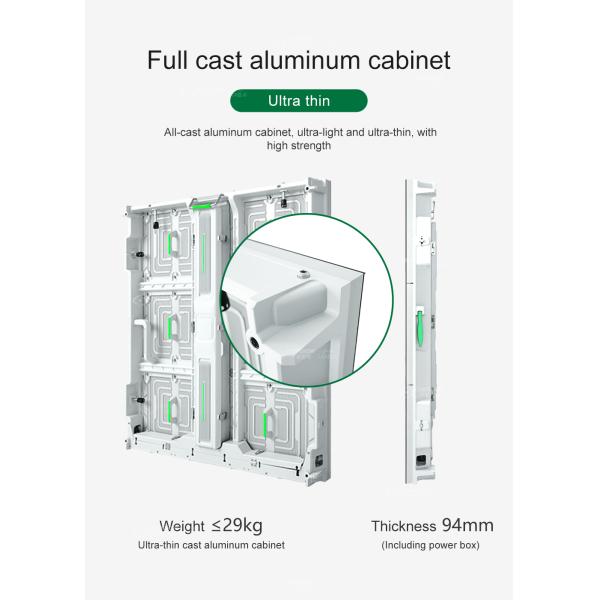

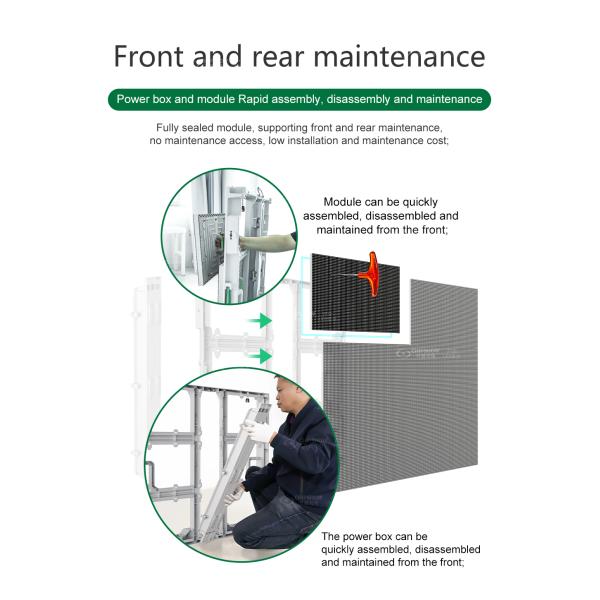

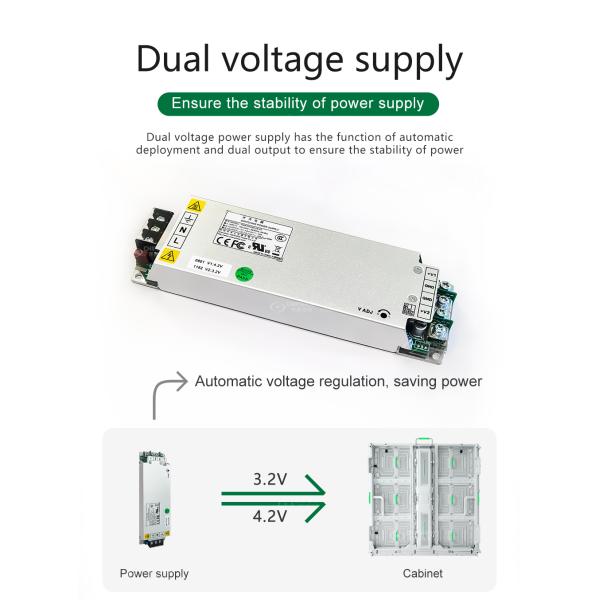

1. The common cathode scheme is adopted, 30% energy saving compared with traditional LED display; 2. Front and rear maintenance: accessories can be completely front maintenance, saving space; 3. The connection between the module and the cabinet is made of side waterproof ring, more reliable for waterproof; 4. Full cast aluminum cabinet, ultra light and ultra-thin, with high strength; 5. High reliability: IP65 protection at the front and rear of the fully enclosed module, hidden wiring, safe and beautiful, stable and reliable； 6. Dual voltage power supply has the function of automatic deployment and dual output to ensure the stability of power supply; 7. Applications: Outdoor advertising, government enterprise projects, cultural tourism, sports competitions, image publicity, commercial real estate, etc.
Products Description
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Technical Parameter
Model
C-Slim
LED configuration
SMD1921
Pixel pitch
5mm
Module size
480*320mm
Cabinet size
960*960*95mm
Cabinet material
Cast aluminum
Weight
25kg/Cabinet
Viewing angle
H/V：120°/120°
Working voltage
DC4.6V
Average power
≤200W/㎡
Max consumption
≤600W/㎡
Refresh rate
3840Hz
White balance brightness
40000 Dots/㎡
Drive mode
1/8 scanning
Life
100000
Waterproof
IP65
Maintenance type
Front / rear
Buyer Feedback
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Why Choose Us
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Package and Delivery
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
FAQ
Q:Who Are We?
A: Chipshow has 20,000sqm high-tech automated workshop, 200 employees,25 research engineers,20 after-sale technicians,5000sqm productivity each month.

Q: How Can We Guarantee Quality?
A: Seven quality control steps ensure your ordered screens good:
1).Suppliers are long-term cooperated large famous company.
2).Material check by professional workers and machines.
3).Debug every modules.
4). 48-hour aging test for all modules before assembling.
5).Test every cabinet's function after assembling by engineers and machines.
6).72-hour aging test for whole screen before shipment.
7). All details final inspection again before package.

Q:What Can You Buy From US?
A: LED Display,LED Screen,LED Sign,LED modules,LED billboard,etc.

Q: Why Should You Buy From US Not From Other Suppliers?
A: After the 20 years' development, Shenzhen Chip Optech Co., Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices.

Q:What Services Can We Provide?
A: 2-year quality warranty and life-long repairing service.
If any components need to repair or replace, you can send it back to Shenzhen。
Chipshow P5 Slim Waterproof Fixed Installation Pantalla LED Advertising LED Billboard Outdoor LED Display Screen
