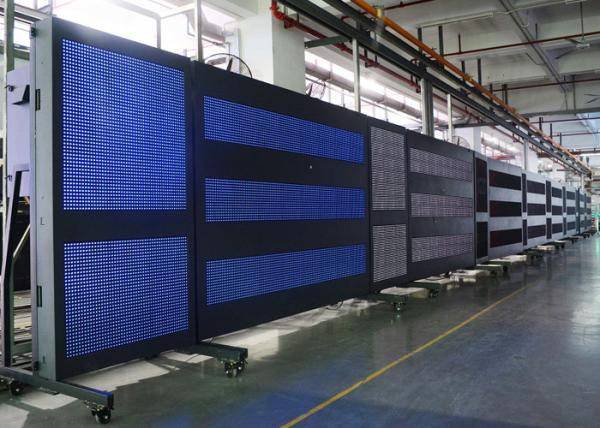

P12 - P20 EN12966 Traffic Variable Message Sign Asynchronous Control For City Road Useage
P12 - P20 EN12966 Traffic Variable Message Sign Asynchronous Control For City Road Useage
P12 - P20 EN12966 Traffic Variable Message Sign Asynchronous Control For City Road Useage
P12 - P20 EN12966 Traffic Variable Message Sign Asynchronous Control For City Road Useage
Specifications
Brand Name :
YAHAM
Model Number :
YHT-VMS-OT16
Certification :
2AZPZ-T25
Place of Origin :
CHINA
MOQ :
5
Price :
USD1950-2800/set
Payment Terms :
Western Union, T/T, L/C, D/P, D/A, MoneyGram
Supply Ability :
2800set/per month
Delivery Time :
25days
Packaging Details :
WOODEN CASE
feature :
Control system
Power supply :
12-24V DC/110-230V AC
Operation temperature :
-25~+60℃
Store humidity :
15%~95%
Pixel pitch :
16mm
Display control :
Asynchronous control system available
Description

P12 P16 P20 EN12966 Traffic Variable Message Sign For City Road Useage

Lane Management Systems
Communicate lane specific messages to motorists.
Easily and safely reverse lane direction as needed for optimum traffic flow.

Dynamic Message Signs (DMS), both permanent and portable signs, are vital components of Intelligent Transportation Systems (ITS) in communicating with motorists on the road. These signs provide the traveling public with warnings pertaining to traffic congestion, crashes, incidents, construction, speed restrictions, etc. DMS are also used for Amber Alert and Silver Alert messages.

Specification
ITEM OT16 OT20 OT25 OT31.25
PIXEL 16mm 20 mm 25 mm 31.25mm
LED TYPE 3 in 1SMD+LENS 3 in 1SMD+LENS 3 in 1SMD+LENS 3 in 1SMD+LENS
PIXEL DENSITY 3906 pixel/m2 2500 pixel/m2 1600 pixel/m2 1024 pixel/m2
MODULE DIMENSION 256X128 mm 320X160 mm 200 x 200 mm 250 x 250 mm
MODULE RESOLUTION 16*8 pixels 16*8 pixels 8*8 pixels 8*8 pixels
CABINET DIMENSION 1024*1024mm 960*960mm 1000*1000mm 1000*1000mm
CABINET WEIGHT 65kg 65kg 65kg 65kg
ACCESS FRONT /BACK FRONT /BACK FRONT /BACK FRONT /BACK
INGRESS PROTECTION IP65 IP65 IP65 IP65
BRIGHTNESS 12400 NITS 12400 NITS 12400 NITS 12400 NITS
VIEWING ANGLE H15/-15 V8/-10 H15/-15 V8/-10 H15/-15 V8/-10 H15/-15 V8/-10
MAX.POWER CONSUMPTION 250W 220W 220W 220W
AVE.POWER CONSUMPTION 80W 70W 70W 70W
DRIVIG METHOD STATIC STATIC STATIC STATIC
DISPLAY CONTROL Asynchronous control Asynchronous control Asynchronous control Asynchronous control
LED LIFESPAN 100,000 100,000 100,000 100,000
Product Advantages
  • New Integrated Optical Len
  • Improved flatness
  • High color consistency
  • Better contrast ratio
  • Effortless replace
  • Thinner cabinet
  • High stability

P12 - P20 EN12966 Traffic Variable Message Sign Asynchronous Control For City Road Useage

  • Global positioning system
  • Self-diagnosis and failure report
  • High protection
  • Customized color and sizesP12 - P20 EN12966 Traffic Variable Message Sign Asynchronous Control For City Road Useage

Wireless and remote control​

Application scenario

P12 - P20 EN12966 Traffic Variable Message Sign Asynchronous Control For City Road Useage

P12 - P20 EN12966 Traffic Variable Message Sign Asynchronous Control For City Road Useage

P12 - P20 EN12966 Traffic Variable Message Sign Asynchronous Control For City Road Useage
