P3 P3.8 P6 Outdoor Fixed Led Display Waterproof 768x768mm 576x576mm Rental Die-Casting Cabinet
2, Product Description
192x192mm compatible pitch: 3, 3.8, 6
| Model No. | BH3 | BH3.8 | BH6 |
| Pixel Pitch | 3 | 3.8 | 6 |
| LED Lamp | SMD1415 | SMD1921 | SMD2727 |
| Density | 111111 | 67816 | 27777 |
| Module Size | 192x192 | ||
| Module Pixel | 64x64 | 50x50 | 32x32 |
| Module Material | Plastic | ||
| Cabinet Size | 768x768 | ||
| Cabinet Material | Steel (Die-cast Aluminum as Optional) | ||
| Scan Rate | 1/16 | 1/13 | 1/4 |
| Flatness | ≤0.3 | ||
| Gray-Scale | 14 | ||
| Protection Level | IP65 | ||
| Installation/Maintenance | Back Installation/Back Maintenance | ||
| Brightness | 5000-5500 (can be customized with a black lamp) | 6000-6200 (can be customized with a black lamp) | 6300-6500 |
| Horizontal/Vertical Viewing Angle | ≥140°/≥120° | ||
| Contrast Ratio | ≥6500:1 | ≥8000:1 | |
| Module Maximum Current (DC) | 6A | ||
| Module Input Voltage (DC) | 5V | ||
| Standard Receiving Card | MRV328 | ||
4, Aging Picture

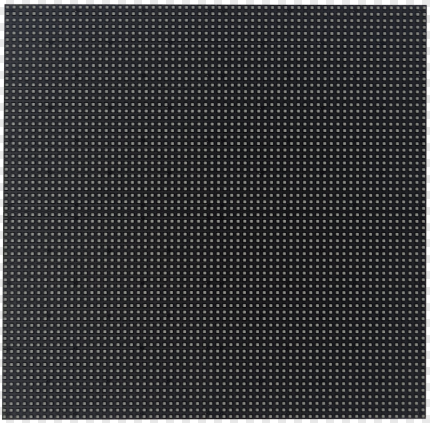

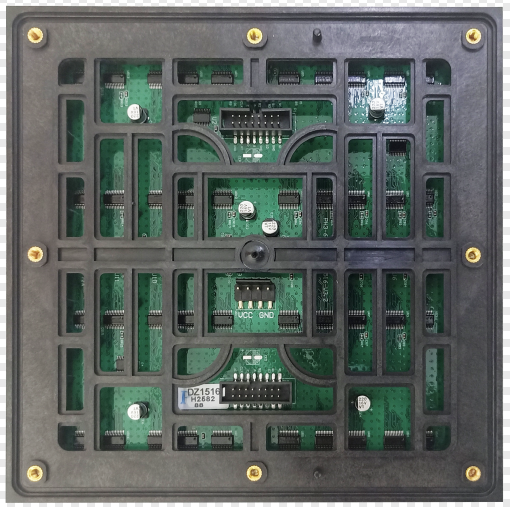

5, Module Picture

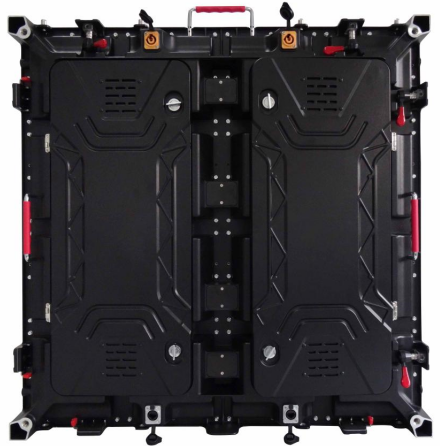

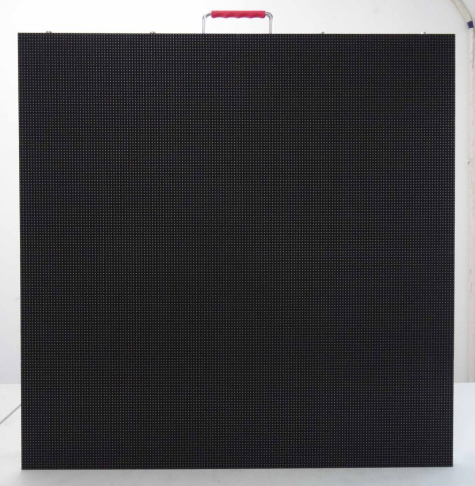

6, Cabinet Picture
