PH5 PH6 PH8 PH10 PH16 Football Stadium LED Display Advertising Boards
PH5 PH6 PH8 PH10 PH16 Football Stadium LED Display Advertising Boards
Specifications
Brand Name :
Longrun
Model Number :
P10
Place of Origin :
Guangdong, China
MOQ :
>=1 Square Meters
Price :
Negotiable
Supply Ability :
500 Square Meter/Square Meters per Month
Packaging Details :
2 in 1 flight case
LED chip :
Epistar
Life span :
100000hours
Certificate :
CE ROHS
Warranty :
2 Years
Application :
Adervertising
Usage :
Indoor
Tube Chip Color :
1RGB
Display Function :
animation, graphics, video
Pixels :
10
Screen Dimension :
Customized
Port :
Shenzhen
Description

PH5 PH6 PH8 PH10 PH16 Football Stadium LED Display Advertising Boards

Football / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16

Technical parameter

P10 Outdoor Large Stadium Screen

Parameter type PH5 PH6 PH8 PH10 PH16
Pixel Pitch(mm) 5 6 8 10 16
Physical Density(dot/m2) 40,000 27,777 15,625 10,000 3,906
LED Configuration 1RGB 1RGB 1RGB 1RGB 1RGB
LED type SMD2727 SMD2727 SMD3535 SMD3535 SMD3535
Module Size(mm*mm) 160*160 192*192 256*128 320*160 256*256
Module Resolution(PX*PX) 32*32 32*32 32*16 32*16 16*16
Module Powe Consumption(W) 25 32 30 45 55
Drive Mode Constant Current Drive Constant Current Drive Constant Current Drive Constant Current Drive Constant Current Drive
Scanning Mode 1/8 1/4 1/8 1/4 1/2 1S
Horizontal Viewing Angle(Deg) 140 140 140 140 140
Vertical viewing Angle(Deg) 100 100 100 100 100
Brightness(cd/m2) 600-1400 800-1500 1000-1600 800-1700 800-1200
Grey Scale 14 bit 14 bit 14 bit 14 bit 14 bit
Refresh Rate(Hz) ≥1920 ≥1920 ≥1920 ≥1920 ≥1920
Cabinet Resolution(PX*PX) 192×192 128×128 128×128 96×96 64×64
Cabinet Max Power Consumption(W) 900 512 960 810 880
Cabinet Average Power Consumption(W) 300 160 310 260 290
Cabinet size(mm) 960×960 768×768 1024×1024 960×960 1024×1024
Cabinet Weight(kg) 42 40 41 42 45
Cabinet Thickness(mm) 100 100 100 100 100

Football Stadium LED Display Description

1. High color contrast and consistency, high brightness to ensure good display result.
2. CNC technology for cabinet, flatness between cabinet units <0.2mm.
3. Energy saving and noiseless power supply, excellent heat dissipation to ensure good stability and life span.
4. Constant current driver, luminance decrease <5% per year.

P10 Outdoor Large Stadium Screen

PH5 PH6 PH8 PH10 PH16 Football Stadium LED Display Advertising BoardsPH5 PH6 PH8 PH10 PH16 Football Stadium LED Display Advertising Boards

P10 Outdoor Large Stadium Screen
PH5 PH6 PH8 PH10 PH16 Football Stadium LED Display Advertising Boards

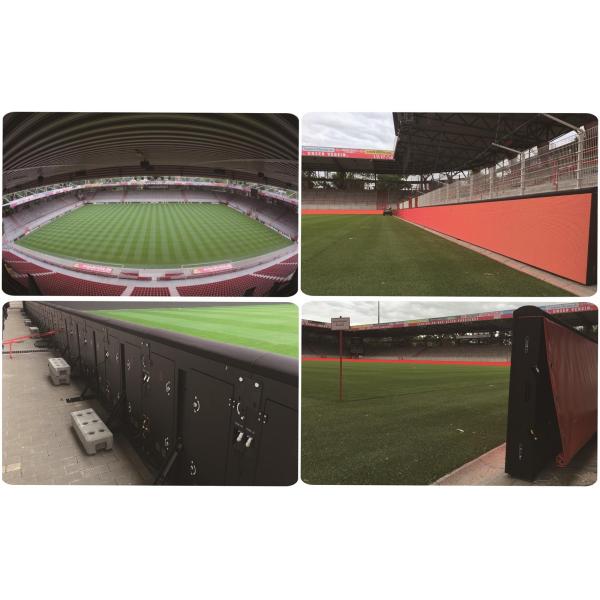

Application

P10 Outdoor Large Stadium Screen

PH5 PH6 PH8 PH10 PH16 Football Stadium LED Display Advertising Boards
Packaging & Shipping
PH5 PH6 PH8 PH10 PH16 Football Stadium LED Display Advertising Boards

PH5 PH6 PH8 PH10 PH16 Football Stadium LED Display Advertising Boards

Company Information

P10 Outdoor Large Stadium ScreenPH5 PH6 PH8 PH10 PH16 Football Stadium LED Display Advertising Boards
