Football / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16
Football / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16
Football / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16
Football / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16
Football / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16
Football / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16
Football / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16
Football / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16
Football / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16
Football / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16
Specifications
Place of Origin :
Guangdong, China
Model Number :
P10
Brand Name :
Longrun
Supply Ability :
500 Square Meter/Square Meters per Month
Packaging Details :
2 in 1 flight case
MOQ :
>=1 Square Meters
Price :
Negotiable
LED chip :
Epistar
Life span :
100000hours
Certificate :
CE ROHS
Warranty :
2 Years
Application :
Adervertising
Usage :
Indoor
Tube Chip Color :
1RGB
Display Function :
animation, graphics, video
Pixels :
10
Screen Dimension :
Customized
Port :
Shenzhen
Description

Football / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16

Product Description

1. High color contrast and consistency, high brightness to ensure good display result.
2. CNC technology for cabinet, flatness between cabinet units <0.2mm.
3. Energy saving and noiseless power supply, excellent heat dissipation to ensure good stability and life span.
4. Constant current driver, luminance decrease <5% per year.

P10 Outdoor Large Stadium Screen

Football / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16Football / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16
Technical parameter

P10 Outdoor Large Stadium Screen

Parameter type PH5 PH6 PH8 PH10 PH16
Pixel Pitch(mm) 5 6 8 10 16
Physical Density(dot/m2) 40,000 27,777 15,625 10,000 3,906
LED Configuration 1RGB 1RGB 1RGB 1RGB 1RGB
LED type SMD2727 SMD2727 SMD3535 SMD3535 SMD3535
Module Size(mm*mm) 160*160 192*192 256*128 320*160 256*256
Module Resolution(PX*PX) 32*32 32*32 32*16 32*16 16*16
Module Powe Consumption(W) 25 32 30 45 55
Drive Mode Constant Current Drive Constant Current Drive Constant Current Drive Constant Current Drive Constant Current Drive
Scanning Mode 1/8 1/4 1/8 1/4 1/2 1S
Horizontal Viewing Angle(Deg) 140 140 140 140 140
Vertical viewing Angle(Deg) 100 100 100 100 100
Brightness(cd/m2) 600-1400 800-1500 1000-1600 800-1700 800-1200
Grey Scale 14 bit 14 bit 14 bit 14 bit 14 bit
Refresh Rate(Hz) ≥1920 ≥1920 ≥1920 ≥1920 ≥1920
Cabinet Resolution(PX*PX) 192×192 128×128 128×128 96×96 64×64
Cabinet Max Power Consumption(W) 900 512 960 810 880
Cabinet Average Power Consumption(W) 300 160 310 260 290
Cabinet size(mm) 960×960 768×768 1024×1024 960×960 1024×1024
Cabinet Weight(kg) 42 40 41 42 45
Cabinet Thickness(mm) 100 100 100 100 100

P10 Outdoor Large Stadium Screen

Football / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16

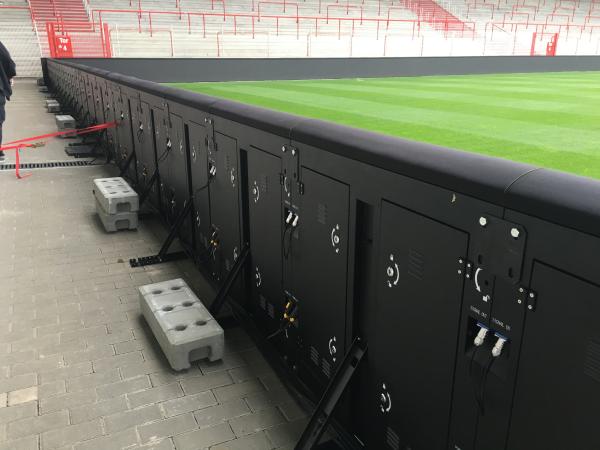

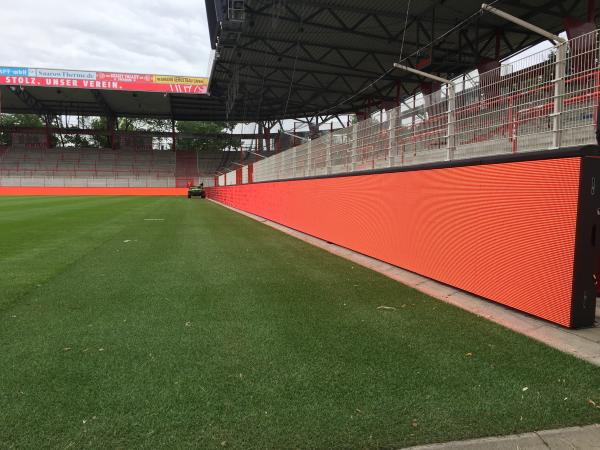

Application

P10 Outdoor Large Stadium Screen

Football / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16
Packaging & Shipping
Football / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16

Football / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16

Company Information

P10 Outdoor Large Stadium ScreenFootball / Basketball Stadium Perimeter Led Display PH5/PH6/PH8/PH10/PH16
