Water Resistant P8 Outdoor Led Display , Big Events Led Display Long Life Span
Water Resistant P8 Outdoor Led Display , Big Events Led Display Long Life Span
Water Resistant P8 Outdoor Led Display , Big Events Led Display Long Life Span
Water Resistant P8 Outdoor Led Display , Big Events Led Display Long Life Span
Water Resistant P8 Outdoor Led Display , Big Events Led Display Long Life Span
Water Resistant P8 Outdoor Led Display , Big Events Led Display Long Life Span
Water Resistant P8 Outdoor Led Display , Big Events Led Display Long Life Span
Water Resistant P8 Outdoor Led Display , Big Events Led Display Long Life Span
Specifications
Place of Origin :
Guangdong, China
Model Number :
LR-F8-32*16-4SD35
Brand Name :
LongRun
MOQ :
1 Piece
Price :
Negotiable
Application :
outdoor advertising
Color :
full color RGB
Panel Size :
320*160mm
Pixel Pitch :
8mm
Pitch :
8mm
LED type :
3535SMD
Pixels per sqm :
15625 dots
Module resolution :
32*16
Module size :
320*160 mm
Brightness :
7000-7500cd/sqm
Scan method :
1/3
Grey Level :
16bit
Life Span :
>100,000 hours
View distance :
10~80 m
Selling Units :
Single item
Single package size  :
111X75X113 cm
Single gross weight :
240.0 kg
Package Type :
According to your inquiry, standard cabinet fixed installation,honeycomb carton is recommended to save cost; waterproof cabinet for rental,flight case is recommended,as it is more convenient for transportation and dismantling.
Description

Water Resistant P8 Outdoor Led Display , Big Events Led Display Long Life Span

Product Description

1. The first level LED chip from Taiwan Epistar.

2. With pure golden wire connection in LED.

3. Grand A row material for module frame and mask.

4. 4 layers PCB and copper plating thickness > 18mil.

5. Ag alloy solder paster to ensure good soldering on PCB.

6. Stainless steel screws when assembly.

7. Disassembly and assembly are quick and easy.

8. Three years warranty.

Stage Background Led Digital Display Screen Parameters:

P8 SMD Outdoor
LEDs Pixel pitch 8mm
Pixel configuration 1RGB
LED type 3535SMD
LED manufacturer and origin Epistar
Cabinet Pixel pitch 8mm
Pixels per sqm. 15625 pixels
LEDs qty. per sqm. 15625 pcs
LED module resolution 40x20
LED module size 320*160mm
LED cabinet resolution 768(W) x 768 (H) cm
LED cabinet dimension Width: 960 mm; Height: 960 mm; Depth:100mm
LED cabinet Area 0.9216 sqm.
Brightness 7000-7500cd/sqm
Viewing angle Horizontal: 160°; Vertical: 120°
Grey scale (linear) 65,396 levels per color
Display refresh rate 1920 Hz
Scan mode 1/3 scan
Power supply Power consumption (max.) <1200 watts/sqm.
Power consumption (average) <1000 watts/sqm.
Input voltage AC 110 or 220 V ±10%
Mechanical design LED cabinet weight <50 kgs
Material Iron cabinet
Ingress protection Waterproof
Serviceability Back service
Operation Storage environment Temperature: 0°C-40°C; Humidity: 10%-85%RH
Operating environment Temperature: -20°C-65°C; Humidity: 10%-90%RH
Lifespan (typical) ≥100,000 hours
MTBF ≥10,000 hours
Source compatibility CVBS,YC, YUV,RGB, DVI, SDI, HD-SDI, HDMI

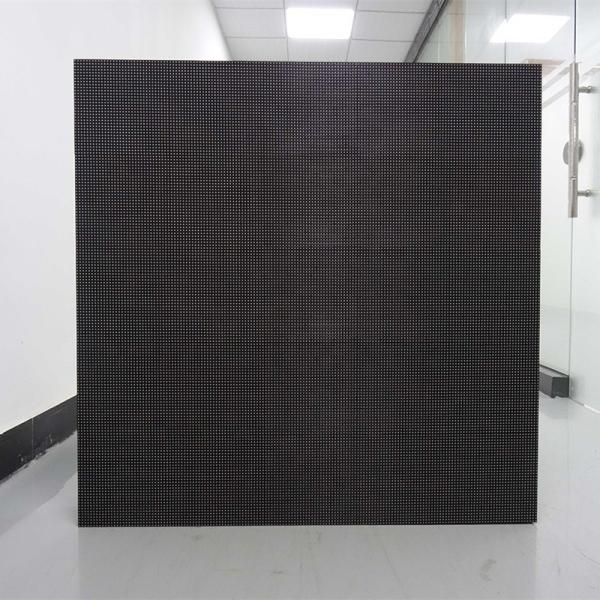

Stage Background Led Digital Display Screen Module Details:

Water Resistant P8 Outdoor Led Display , Big Events Led Display Long Life Span Water Resistant P8 Outdoor Led Display , Big Events Led Display Long Life Span

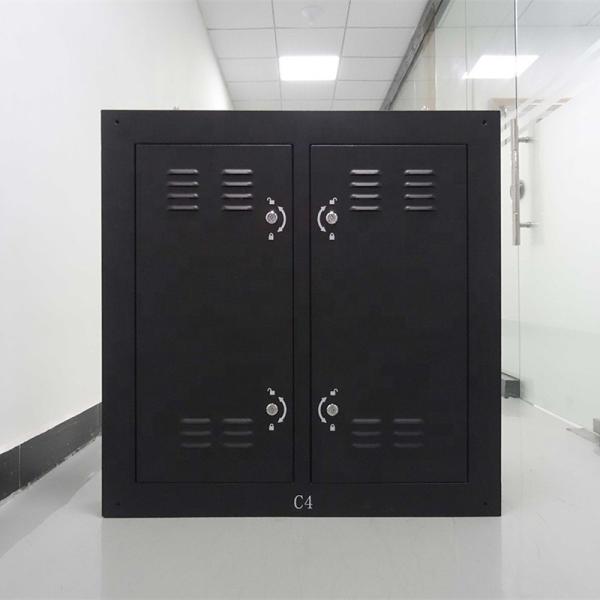

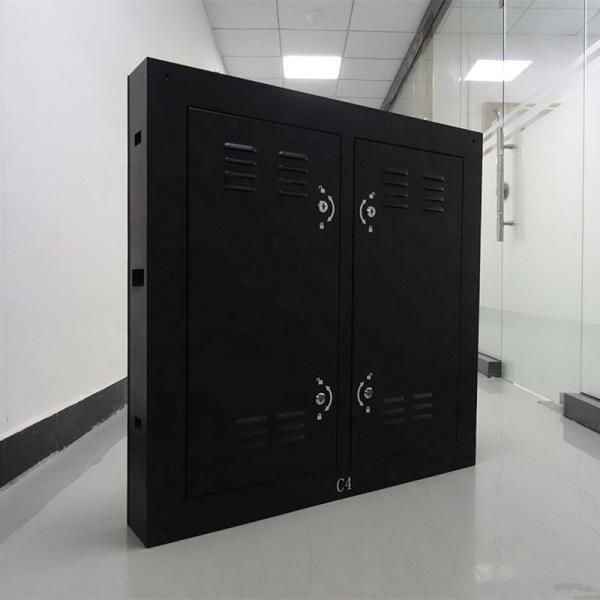

Stage Background Led Digital Display Screen Cabinet Details:
Water Resistant P8 Outdoor Led Display , Big Events Led Display Long Life SpanWater Resistant P8 Outdoor Led Display , Big Events Led Display Long Life Span
Packaging & Shipping
Stage Background Led Digital Display Screen Package:Flight case,Celluar carton,Polywood for your choice.
For fixed instalaltion,Honeycomb carton is recommended to save cost.
For rental,fight case the most convenient for transportation and dismantling.
Company Information

LongRun Optoelectronics Co.,Ltd,a professional indoor and outdoor full color led screen display manufacture,which can offer any kinds of led panel in competitive price.Tag: Led Outdoor TV Billboard ,Stage Background Led Display Big Screen ,Advertising led display,Led video wall,led billboard,led display panel,truck mobile led display,indoor advertising led display screen,stage led screen for concert,outdoor led advertising screen,P4 indoor led exhibition display,theatre led display,led screens for events,rental mobile led screen ect with great quanlity and excellent support after sale.

Our engineers have vast experience in the industry having developed all kinds for led panel solutions includign message boards,graphic panels,time/temperature displays,full color video screen.

Over the years we have installed thousands of led displays into numerous industries-shops,shopping center,corporate offices,factories,call center,government buildings,transport links,stadiums and arenas.

Water Resistant P8 Outdoor Led Display , Big Events Led Display Long Life Span

LongRun LED Display Screen Exhibition in 2014:

Water Resistant P8 Outdoor Led Display , Big Events Led Display Long Life SpanWater Resistant P8 Outdoor Led Display , Big Events Led Display Long Life Span

Our Services

1. Your inquiry related to our products or price will be replied in 12hrs.
2. OEM&ODM,any your customized lightings we can help you to design and put into product.
3. Distributoership are offered for your unique design and some our current models.
4. Protection of your sales area,ideas of design and all your private information.
5. Best cost performance and perfect service before and after sales.

Thank you for your interest in Stage Background Led Digital Display Screen from LongRun. We look forward to the opportunity to provide you with our best service!
