Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing
Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing
Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing
Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing
Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing
Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing
Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing
Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing
Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing
Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing
Specifications
Brand Name :
Joyful Partner
Model Number :
JP805
Certification :
CE, EMC,RoHS
Place of Origin :
Guangdong, China
MOQ :
20 pieces
Price :
Negotiable
Payment Terms :
MoneyGram, Western Union, T/T
Supply Ability :
500000 Carton/Cartons per Month
Delivery Time :
5-10 working days
Packaging Details :
Shockproof Carton Box
Lighting solutions service :
Project Installation
Working Time (hours) :
50000
Warranty(Year) :
2-Year
Input Voltage(V) :
DC24V 12V
CRI (Ra>) :
85
IP Rating :
IP67 Waterproof
Application :
Step,stair,Deck,Boat,Humid environment
Glass :
8mm Tempered Step Glass
OEM&ODM :
Available
Lens effciency :
≥85%
Usage :
Outdoor Garden Landscaping Decorative
Port :
Guangzhou/Shenzhen
Description
Prouct Name:Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing

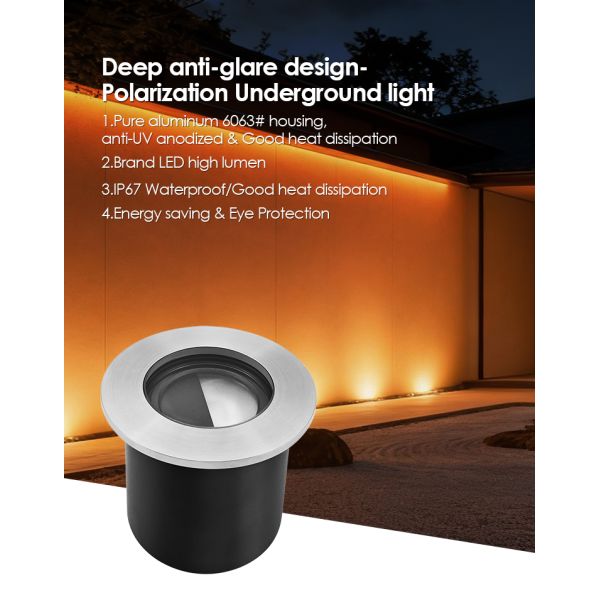

JP805 is asymmetrical light output type IP67 recessed floor light and designed for floor integration and offers various design possibilities in architectural illumination.
Product Specifications
Item No. Light Source Lens Beam Angle Power Consumption Input Voltage IK Rating
JP805 4×1W LED 30°*40° 4.5W DC24V/DC12V 08

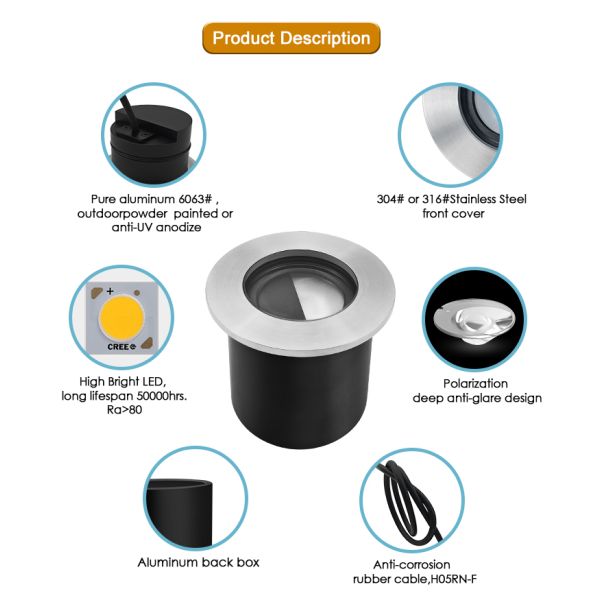

Material Specifications
Housing Pure aluminum 6063# housing,outdoor power painted or anti-UV anodized
Front Cover 304# or 316# Stainless Steel
Lens High quality optical lens, efficiency ≥85%
Glass Tempered glass, T= 12mm
Gasket Molding shaped silicone seal
Operating Temperature -20℃ to 40℃
Power Cable H05RN-F 2×0.75mm² L=0.5m (low voltage)
Mounting Sleeve Aluminum back box
Key Features
  • Aluminum housing with stainless steel cover for superior anti-corrosion and crack resistance
  • Recessed Mounted design with IP67 waterproof rating
  • High-efficiency LEDs with excellent lumen output and energy savings
  • Anti-corrosion rubber cable (H05RN-F) for durability

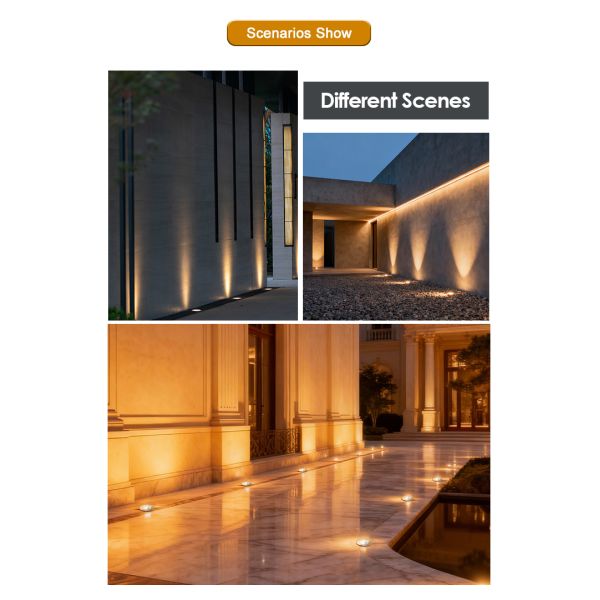

  • Versatile applications: corridors, pathways, roads, parks, stages, walls, backyards, squares, lawns, playgrounds, architecture, streets, exhibitions, and viaducts
  • High-performance electronic design and reliable heat dissipation.
  • Humanized anti-glare optical design.
Installation Notes
  • Must be installed by a licensed electrician (installation instructions provided in each product box)
  • Constructed from 316 stainless steel for durability and corrosion resistance. Clear protective coating may peel over time in outdoor or high-pressure cleaning conditions
  • To maintain IP rating, use circular cable in junction. For parallel and single connections, recommend appropriate IP68 connectors
  • Ensure the IP rating is suitable for intended use to avoid disappointment and warranty issues
Product Images
Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing
Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing
Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing
Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing
Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing
Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing
