Specifications
Brand Name :
Joyful Partner
Model Number :
1SS0102
Certification :
CE, EMC, LVD, RoHS
Place of Origin :
Guangdong, China
MOQ :
20 pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Set/Sets per Month
Delivery Time :
5-10 working days
Packaging Details :
carton box packing
Color Temperature(CCT) :
2700K-6500K
Input Voltage(V) :
DC12V/24V
Lamp Luminous Efficiency(lm/w) :
85
Warranty(Year) :
2-Years
Color Rendering Index(Ra) :
85
Usage :
Indoor Outdoor Step,Stair,Wall,Pathway
Description
Outdoor Recessed LED Wall Light 3W 3000K White Aluminum for Garden & Patio
Product Specifications
Item No. Light Source Lens Beam Angle Consumption (Watt) Input Voltage IK Rate
1SS0101 1*1W 60° 1 DC12V/DC24V 10
1SS0101-H 1*1W 60° 1.3 AC100-240V 10
1SS0102 1*3W 60° 3 DC12V/DC24V 10
1SS0102H 1*3W 60° 3.3 AC100-240V 10

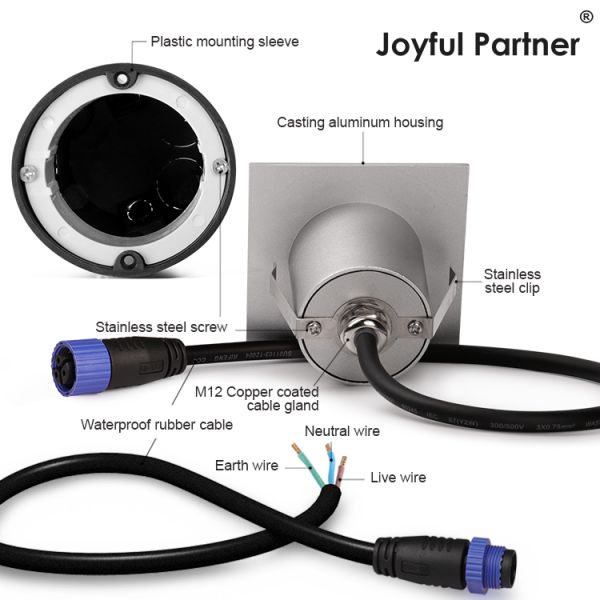

Material Specifications
Housing Made of ADC12# Die-casting outdoor powder coated aluminum
Lens Optical lens, efficiency ≥85%

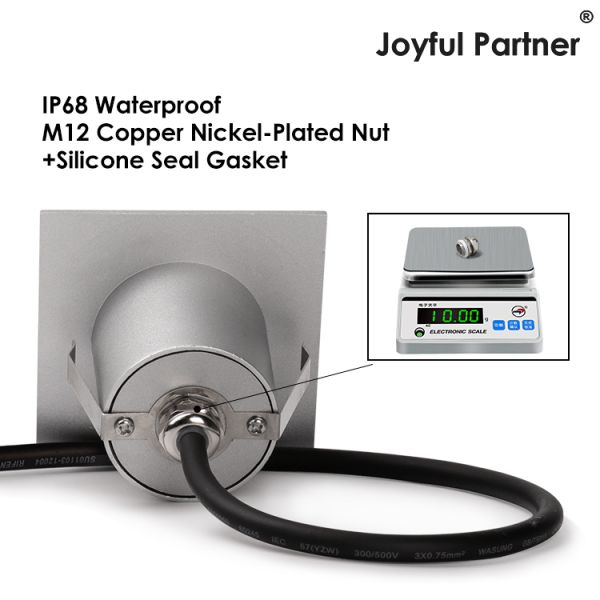

Cable Gland M12 nickel coated copper
Gasket Tooling shaped seal
LED Epistar or CREE power LED, Ra>80
PCB Excellent heat conductivity aluminum, coefficient of heat conductivity ≥2.0w/mk
Driver Constant current output, single color LED=1-circuit output
Operating Temperature -20℃ to 40℃
Power Cable H05RN-F2*0.75mm² L=0.3m (low voltage)
H05RN-F3*0.75mm² L=0.3m (high voltage)
Product Features
  • IP65 waterproof for outdoor stair/step/corn/stairway/park lighting use
  • Input Voltage: 12V/24VDC/100-240VAC for your option
  • IP65 rating with CE, ROHS certificated
  • Rated Lifespan: more than 50,000+ hours
  • Easy to install and operate, with clips directly
  • Excellent heat conductivity aluminum, high efficiency constant current drivers
  • Housing color option: Gray/Silver RAL9005/Matt black RAL9006 other customized colors
  • Come with mounting sleeve
Applications

Our outdoor LED step lights are designed with flexibility in mind, making them suitable for various applications. You have the freedom to decide how you want to position them, allowing you to achieve the desired design for your indoor and outdoor space.

Product Images
Outdoor Recessed LED Wall Light 3W 3000K White Aluminum for Garden & Patio Outdoor Recessed LED Wall Light 3W 3000K White Aluminum for Garden & Patio Outdoor Recessed LED Wall Light 3W 3000K White Aluminum for Garden & Patio
LED Wall Light for Canada Projects

JP Lighting 1*3w IP65 LED Recessed Wall Light for Canada stair, step, corner lighting in 2021. Widely used in parks, gardens, shopping malls, hotels, bridges, buildings and urban constructions in different countries and areas. Stable long-term and win-win cooperation with many branders and distributors in the field.

Outdoor Recessed LED Wall Light 3W 3000K White Aluminum for Garden & Patio
Quality Certifications
  • Strict Quality Control: Quality control is strict for all our products. Each item goes through at least 48 hours of aging tests and 24 hours of waterproof tests, and is thoroughly checked before packing.
  • Ample Inventory: We keep a large stock of branded LEDs and materials for our wide range of product models.
  • Certifications: Our factory is ISO 9001-certified.
  • Authoritative Approvals: Our products have important certifications like CE, RoHS, and have passed IP65, IP67, and IP68 waterproof tests.
  • Solid Partnerships: We've built long-term, win-win partnerships with many brands and distributors in the industry.
  • Global Reach: Our customers, including engineering project clients and wholesalers, are all over the world.
Outdoor Recessed LED Wall Light 3W 3000K White Aluminum for Garden & Patio Outdoor Recessed LED Wall Light 3W 3000K White Aluminum for Garden & Patio
