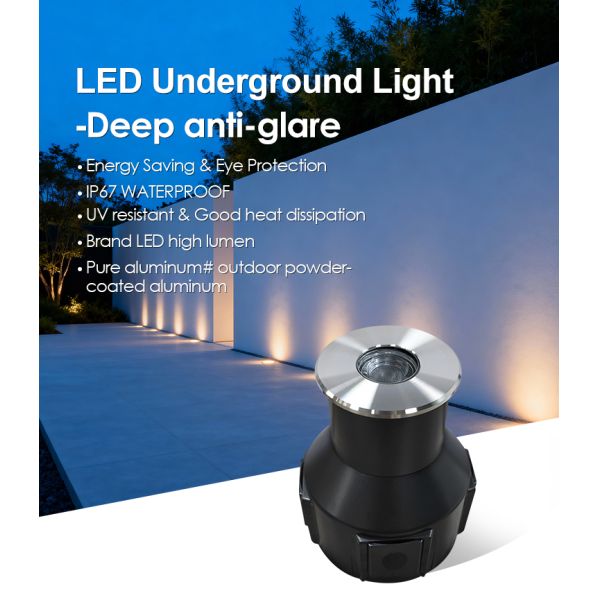

RGB LED Underground Light 3 watts DC24V Beam Angle 30Degree IP67 Mini Size with Anti-Glare Design
RGB LED Underground Light 3 watts DC24V Beam Angle 30Degree IP67 Mini Size with Anti-Glare Design
RGB LED Underground Light 3 watts DC24V Beam Angle 30Degree IP67 Mini Size with Anti-Glare Design
RGB LED Underground Light 3 watts DC24V Beam Angle 30Degree IP67 Mini Size with Anti-Glare Design
RGB LED Underground Light 3 watts DC24V Beam Angle 30Degree IP67 Mini Size with Anti-Glare Design
RGB LED Underground Light 3 watts DC24V Beam Angle 30Degree IP67 Mini Size with Anti-Glare Design
RGB LED Underground Light 3 watts DC24V Beam Angle 30Degree IP67 Mini Size with Anti-Glare Design
RGB LED Underground Light 3 watts DC24V Beam Angle 30Degree IP67 Mini Size with Anti-Glare Design
RGB LED Underground Light 3 watts DC24V Beam Angle 30Degree IP67 Mini Size with Anti-Glare Design
RGB LED Underground Light 3 watts DC24V Beam Angle 30Degree IP67 Mini Size with Anti-Glare Design
RGB LED Underground Light 3 watts DC24V Beam Angle 30Degree IP67 Mini Size with Anti-Glare Design
RGB LED Underground Light 3 watts DC24V Beam Angle 30Degree IP67 Mini Size with Anti-Glare Design
Specifications
Brand Name :
Joyful Partner
Model Number :
82511
Certification :
CE ROHS
Place of Origin :
Guangdong, China
MOQ :
24 pieces
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
10 working days
Packaging Details :
Shockproof Carton Box
Working Temperature(℃) :
-20℃~40℃
Working Lifetime(Hour) :
50000
IP Rating :
IP67, IP67 Waterproof
Application :
Step,stair,Deck,Humid environment
Item Type :
LED Underground Light
Voltage :
DC12V/DC24V
Description

IP67 Mini Size RGB LED Underground Light 3 watts DC24V Beam Angle 30Degree with Anti-Glare Design

Item No.
Light source
Lens beam angle(°)
Consumption(watt)
Input Voltage(V)
Ik rate
82511
1*1W LED
8°/15°/30°/45°/60°
1.2
DC12V
DC24V
AC100-24V
8
82512
1*3W LED
8°/15°/30°/45°/60°
3
DC12V
DC24V
AC100-24V
8
82516
1*3W
RGB3in1 LED
30°/45°/60°
3.1
DC12V
DC24V
8

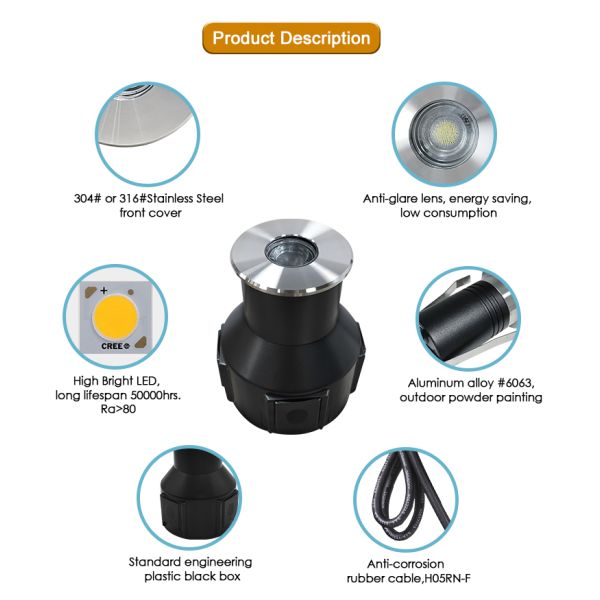

Material specifications

Housing

 Extruded aluminum alloy #6063,anodic oxidation or outdoor powder painting

Front cover

 304# or 316#Stainless Steel

Lens

 Optical lens,effciency≥85%

Glass

 Tempered glass.T=7mm

Gasket

 Molding shaped silicone double seal

Operating temperature

 (-20℃~40℃)
power cable H05RN-F2*0.75mm²L=0.5m(low voltage)
H05RN-F3*0.75mm²L=0.5m(for single color/high voltage)
H05RN-F4*0.75mm²L=0.5m(for RGB)

Mounting sleeve

 ABS

Optional accessory

 Honeycomb

(1)Aluminum alloy #6063,anodic oxidation or outdoor powder painting.

(2)Stainless steel front cover,T=3mm.

(3)Tempered step glass,super pressure capacity.

(4)High lumen brand LED, long life span ,Ra>80n(5)SUS 304# screws

(6)International standard rubber cable,anti-corrosion.

(7)Standard engineering plastic black box

Products Feature:

1.IP67 waterproof Mini LED Inground light for outdoor garden/ Step/ Stair /walk lighting use;
2.Buried,recessed, floor recessed, ceiling recessed installation optional;

3.Stainless steel SUS304#/SUS316# front cover;
4.Clear, frosted, diffused glass optional;
5.Heat resistance international standard rubber cable;
6.Using high-quality and high-precision material and structural waterproof, easy to maintain.
Product Description

18+YEARS EXPERIENCE OF R&D AND MANUFACTURE EXPERIENCE

1. Samples and small orders are acceptable.

2. Product customization is acceptable according to clients requirments.

3.Professional sales engnieers team will offer the right products to meet the clients reqirements.

4. The perfect production process and skilled workers will shorten the prouction time

5. Goods are all fully inspected before shipment.

6. We can arrange the shipment to all over the world by sea/air/express.

2 years warranty as standard, 5 years as options.
