Specifications
Place of Origin :
Guangdong, China
Brand Name :
Joyful Partner
Model Number :
1SS0101
Certification :
CE, EMC, LVD, RoHS
Packaging Details :
Carton
Supply Ability :
50000 Set/Sets per Month
MOQ :
2 pieces
Price :
Negotiable
Color Temperature(CCT) :
2700k-6500k
Input Voltage(V) :
DC12V/24V
Lamp Luminous Efficiency(lm/w) :
85
Warranty(Year) :
2-Year
Color Rendering Index(Ra) :
80
Usage :
Indoor Outdoor Step,Stair,Wall,Pathway
Description
Smart LED Wall Lamp IP65 Aluminum Body square Shape DC 24v 1w 2w 3w LED Stair Light For Corridor
Item No. Light source Lens beam angle(°) Consumption(watt) Input Voltage(V) Ik rate
1SS0101 1*1W 60° 1 DC12V/DC24V 10
1SS0101H 1*1W 60° 1.3 AC100-240V 10
1SS0102 1*1W 60° 3 DC12V/DC24V 10
1SS0102H 1*1W 60° 3.3 AC100-240V 10
Material specifications
Housing Made of ADC12#Die-casting outdoor powder coated aluminum
Glass Tempered glass.T=2mm
Lens Optical lens,effciency≥85%
Cable gland M12 nickel coated copper
Gasket Tooling shaped seal
LED Epistar or CREE power LED,Ra>80
PCB Excellent heat conductivity aluminum,
coeffcient of heat conductivity≥2.0w/mk
Driver Constant current output
single color LED=1-circuit output
Operating temperature (-20℃~40℃)
Power cable H05RN-F2*0.75mm²L=0.3m(low voltage)
H05RN-F3*0.75mm²L=0.3m(high voltage)
1. Brand LED high lumen, energy saving, soft light

2. Anti-oxidation all-aluminum housing,
3. CE & RoHS proved,
4. IP65 Waterproof,
5. Support DMX512,Dali,0-10V dimmable etc...
6. Square, Round, linear shape meet various engineering needs,

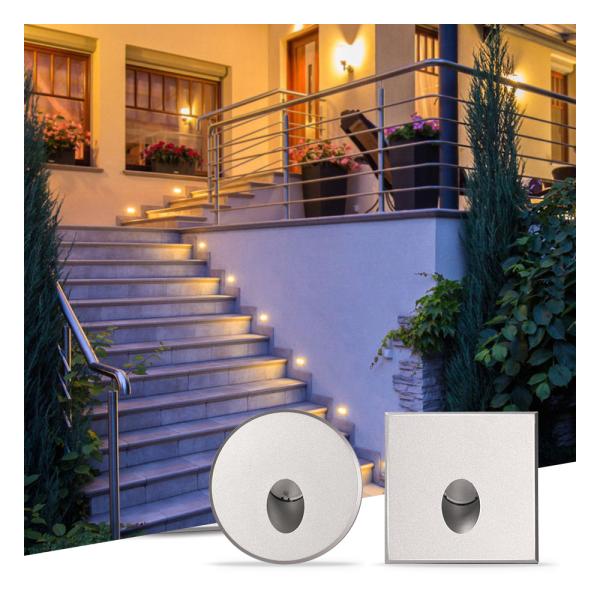

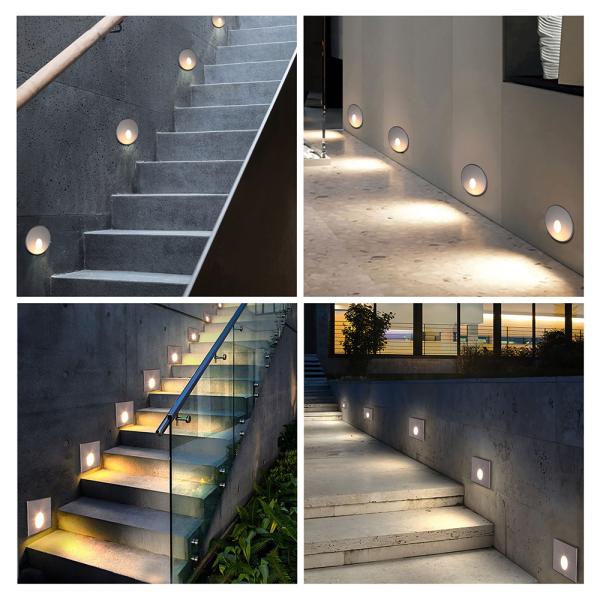

7. Outdoor and Indoor Step/Stair/corridor both can be used.

Product Feature:

1. IP65 waterproof for outdoor stair/ step/corn/stairway/park lighting use;

2. Input Voltage: 12V/24VDC/100-240VAC for your option;
3. IP65 rating with CE, ROHS certificated;
4. Rated Lifespan: more than 50,000+ hours;
5. Easy to install and operate, with clips directly;
6. Excellent heat conductivity aluminum,high efficiency constant current drivers ;
7. Housing color option:Gray/Silver RAL9005/Matt black RAL9006, other customized colors;
8. Come with ABS sleeve & cap/back box/mounting sleeve.
