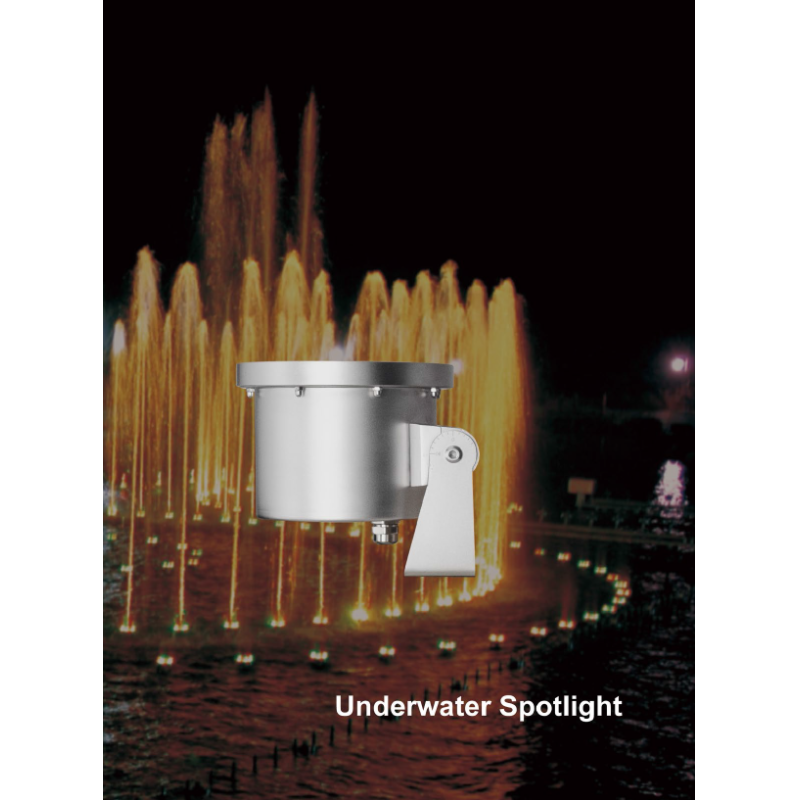

RGB RGBW IP68 LED Underwater Spot Light or Floodlights 45W 48W 60W 80W Surface Mounted For Pond Lighting
RGB RGBW IP68 LED Underwater Spot Light or Floodlights 45W 48W 60W 80W Surface Mounted For Pond Lighting
RGB RGBW IP68 LED Underwater Spot Light or Floodlights 45W 48W 60W 80W Surface Mounted For Pond Lighting
RGB RGBW IP68 LED Underwater Spot Light or Floodlights 45W 48W 60W 80W Surface Mounted For Pond Lighting
RGB RGBW IP68 LED Underwater Spot Light or Floodlights 45W 48W 60W 80W Surface Mounted For Pond Lighting
RGB RGBW IP68 LED Underwater Spot Light or Floodlights 45W 48W 60W 80W Surface Mounted For Pond Lighting
RGB RGBW IP68 LED Underwater Spot Light or Floodlights 45W 48W 60W 80W Surface Mounted For Pond Lighting
RGB RGBW IP68 LED Underwater Spot Light or Floodlights 45W 48W 60W 80W Surface Mounted For Pond Lighting
Specifications
MOQ :
No MOQ
Packaging Details :
4pcs/carton
Material :
SUS 316 Stainless Steel
Supply Ability :
100,000pcs/month
Control Mode :
ON/OFF, DMX512
Light Source :
1piece 45W COB LED, 24pcs*2W(single)/3W(RGB)/4W (RGBW) LED
Light Color :
Single, RGB, RGBW
Model Number :
B5BF
IP rate :
IP68
Payment Terms :
T/T, Western Union
Input voltage :
24VDC
Certification :
CE, RoHS
Place of Origin :
China
Delivery Time :
10-25days
Power :
45W, 48W, 60W, 80W
Brand Name :
COMI Lighting
IK Rate :
IK10
Product Name :
IP68 Surface Mounted 316 Stainless Steel LED Underwater Spotlights
Description
RGB RGBW IP68 LED Underwater Spot Light & Floodlights
Available in 45W, 48W, 60W, and 80W surface-mounted models for pond lighting applications
Product Overview
Single color, RGB, and RGBW IP68 wall/ground/ceiling surface mounted 316 stainless steel LED underwater floodlights. COMI LIGHTING IP68 SUS316 stainless steel surface mounted LED underwater pool lights are constructed from SUS 316L# stainless steel, making them ideal as underwater spotlights for fountains, pools, ponds, water gardens, and other applications requiring atmospheric or underwater lighting.
Features & Benefits
  • Lamp Body Size: Φ230×H150(H364)mm
  • Light Source Options:
    • SMD LED version: 24pcs×2W single, 3W RGB 3-in-1 LED, or 4W RGBW 4-in-1 LED
    • COB LED Version: 1 piece 45W CREE COB LED
  • Light Efficiency:
    • SMD LEDs + Optical Lens: 60-72 LM/W
    • COB LED + Optical Lens: 80-95 LM/W
    • COB LED + Reflector: 75-95 LM/W
  • Input Voltage: 24V DC operating voltage
  • Power Consumption: 45W or 48W (Mono), 60W (RGB 3-in-1), 80W (RGBW 4-in-1)
  • Complete SUS 316 L# stainless steel housing and accessories
  • Standard non-dimmable, with optional DALI, 1-10V, PWM dimmable or DMX512 controllable
  • IP68 waterproof rating, suitable for underwater installation up to 1.5 meters depth
  • High-performance silicone for effective heat dissipation and moisture prevention
  • Includes 316 stainless steel U-shaped bracket for surface mounting
  • Optional 316 stainless steel tripod mounting accessory
  • 2-year warranty
Important Installation Note
This IP68 SUS 316 L# stainless steel luminaire must be installed underwater to prevent overheating and potential damage to the light fixture.
Material Specifications
Component Specification
Front Cover & Housing Molding shaped SUS 316 L# stainless steel housing
Gasket EPDM gasket
Window Glass Step tempered glass, T=10mm
Glass Pressure Capacity Full area = 5012 KGs
Lens Optical lens, efficiency ≥ 85%. Optional Reflector for 2700~6500K COB LED Version
Cable Gland IP-68 PG-11 copper with nickel-coated
PCB Excellent heat conductivity aluminum, coefficient of heat conductivity ≥ 2.0w/mk
Driver 12VDC or 24VDC input driver with Constant current output
Application Environment Water temperature between -20℃ to +40℃, less than 2 meters depth
Electrical Connection
  • 1× cable 3meters H05RN-F 2×1.0mm² to open wires (for Single color)
  • 1× cable 3meters H05RN-F 4×0.75mm² to open wires (for RGB)
  • 1× cable 3meters H05RN-F 5×0.75mm² to open wires (for RGBW color, or DMX512 version)
Mounting Part (Included) SUS 316 stainless Steel U-shaped Bracket (for surface mounting on Wall/ground/ceiling)
Optional recessed mounting When the luminaire without U-backet and with Mounting sleeve
Optional Accessory SUS 316 stainless Steel Tripod
Dimmable or DMX512
  • Standard non-dimmable ON/OFF
  • Optional DALI, 1-10V, PWM Dimmable or DMX 512 controllable support
Technical Specifications
Part Number Light Source CRI (White only) Lens Degree (Θ1/2) Input Voltage Power Consumption Luminance IK Rate
B5BF0150 1×50W CREE COB LED Ra>80 15°, 24°, 36°, 60° 24VDC 45W Cool white=4275LM
Warm white=3548LM		 10
B5BF2456 24×1W Osram or Cree Single color LED Ra>80 10°, 25°, 40°, 60°, 80°, 10×45°, 25×45° 24VDC 24W Cool white=1728LM
Warm white=21434LM		 10
B5BF2457 24×2W Osram or Cree Single color LED Ra>80 10°, 25°, 40°, 60°, 80°, 10×45°, 25×45° 24VDC 48W Cool white=3456LM
Warm white=2868LM		 10
B5BF2418 24×2.5W RGB 3-in-1 Full color LED - 25°, 40°, 60°, 80°, 10×45°, 25×45° 24VDC 60W 1500LM 10
B5BF2424 24×3.5W RGBW 4-in-1 Full color LED - 25°, 40°, 60°, 80°, 10×45°, 25×45° 24VDC 80W 2800LM 10
Specification is subject to change without notice.
