Surface Mounted 316 Stainless Steel IP68 LED Underwater Linear light 12W 18W 24W 36W 500MM 1000MM in single or RGB Color for Pool or Pond Lighting
Surface Mounted 316 Stainless Steel IP68 LED Underwater Linear light 12W 18W 24W 36W 500MM 1000MM in single or RGB Color for Pool or Pond Lighting
Surface Mounted 316 Stainless Steel IP68 LED Underwater Linear light 12W 18W 24W 36W 500MM 1000MM in single or RGB Color for Pool or Pond Lighting
Surface Mounted 316 Stainless Steel IP68 LED Underwater Linear light 12W 18W 24W 36W 500MM 1000MM in single or RGB Color for Pool or Pond Lighting
Surface Mounted 316 Stainless Steel IP68 LED Underwater Linear light 12W 18W 24W 36W 500MM 1000MM in single or RGB Color for Pool or Pond Lighting
Surface Mounted 316 Stainless Steel IP68 LED Underwater Linear light 12W 18W 24W 36W 500MM 1000MM in single or RGB Color for Pool or Pond Lighting
Surface Mounted 316 Stainless Steel IP68 LED Underwater Linear light 12W 18W 24W 36W 500MM 1000MM in single or RGB Color for Pool or Pond Lighting
Surface Mounted 316 Stainless Steel IP68 LED Underwater Linear light 12W 18W 24W 36W 500MM 1000MM in single or RGB Color for Pool or Pond Lighting
Specifications
Materials :
SUS 316 Stainless Steel
Place of Origin :
China
Model Number :
05LA-124,05LA-136,05LA-324,05LA-336
IP rate :
IP68
Delivery Time :
10-25days
Length(mm) :
275mm, 500mm, 1000mm
MOQ :
No MOQ
Packaging Details :
1piece/box, 12pcs/cartons
Mounting Method :
Surface Mounted
Supply Ability :
100,000pcs/month
Power :
12W, 18W, 24W, 30W, 36W
Mounting Part :
SUS 316 Stainless Steel Brackets
Payment Terms :
T/T, L/C
Light Color :
Single color, RGB
Warranty :
2 Years
Brand Name :
COMI Lighting
IK Rate :
IK08
Product Name :
Marine Grade Surface Mounted 316 Stainless Steel IP68 LED Underwater Linear lights
Certification :
CE, RoHS
Description

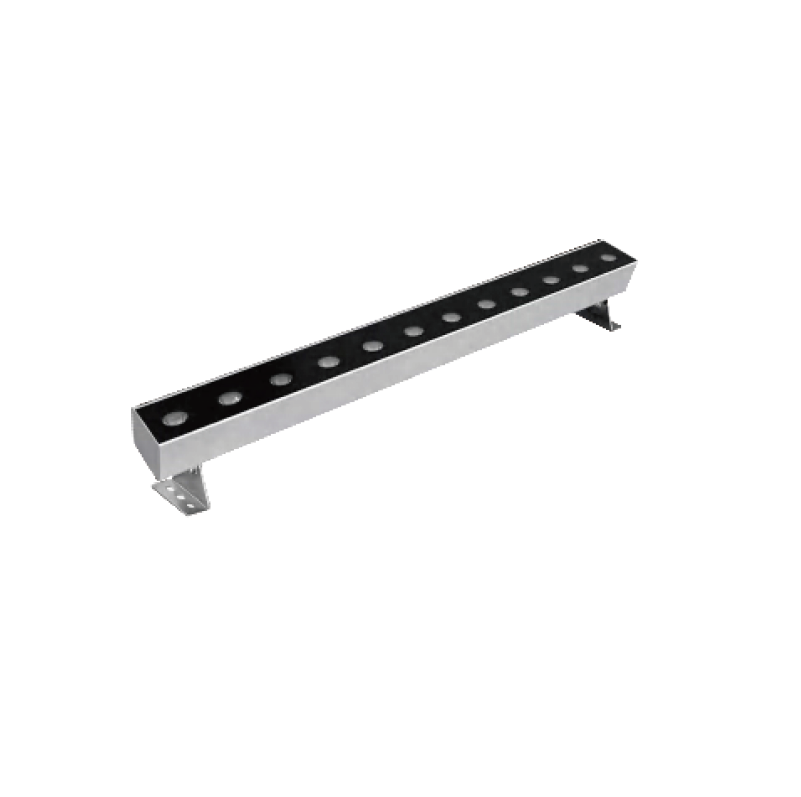

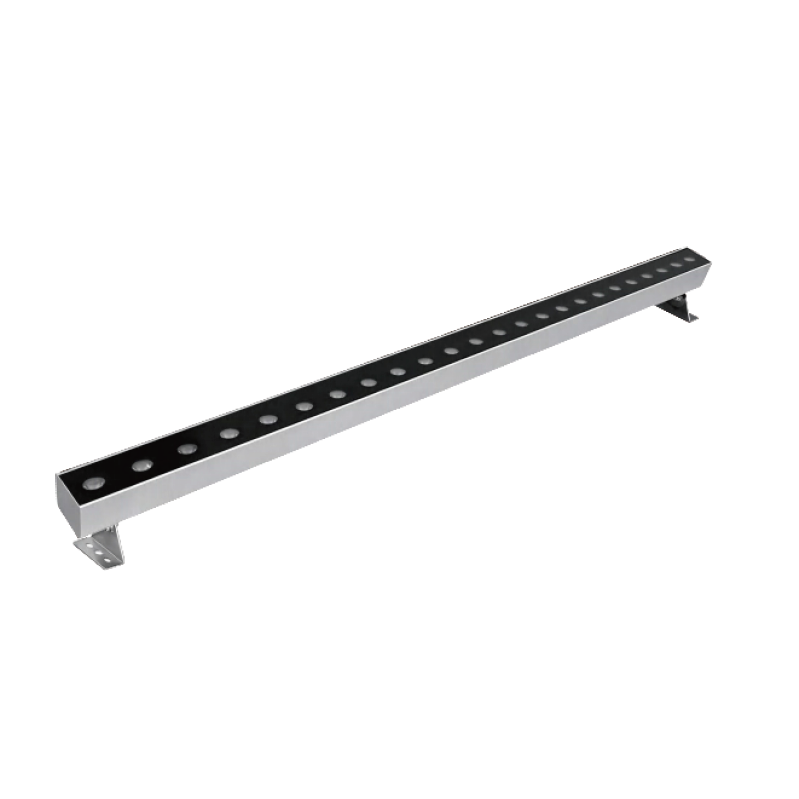

Surface Mounted 316 Stainless Steel IP68 LED Underwater Linear Light
Available in 12W, 18W, 24W, 36W power ratings with 500mm and 1000mm lengths in single or RGB color options for pool and pond lighting applications.
Product Overview
The COMI LANDSCAPE LIGHTING surface-mounted SUS316 stainless steel IP68 LED underwater linear light with adjustable bracket is engineered for permanent submersion in fountains, pools, ponds, and water gardens. Constructed from corrosion-resistant marine-grade stainless steel and tempered glass, this luminaire delivers reliable illumination while withstanding continuous exposure to water, chemicals, and harsh outdoor conditions.
Key Features & Benefits
  • Superior Corrosion Resistance - SUS316 stainless steel housing with tempered glass lens for exceptional rust and corrosion resistance

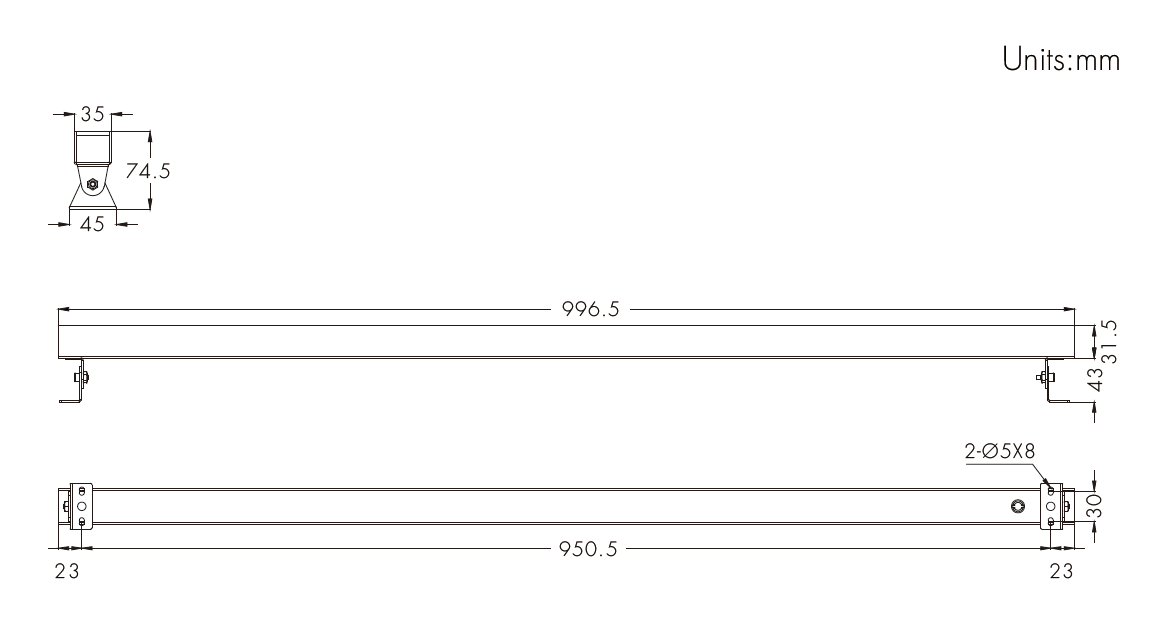

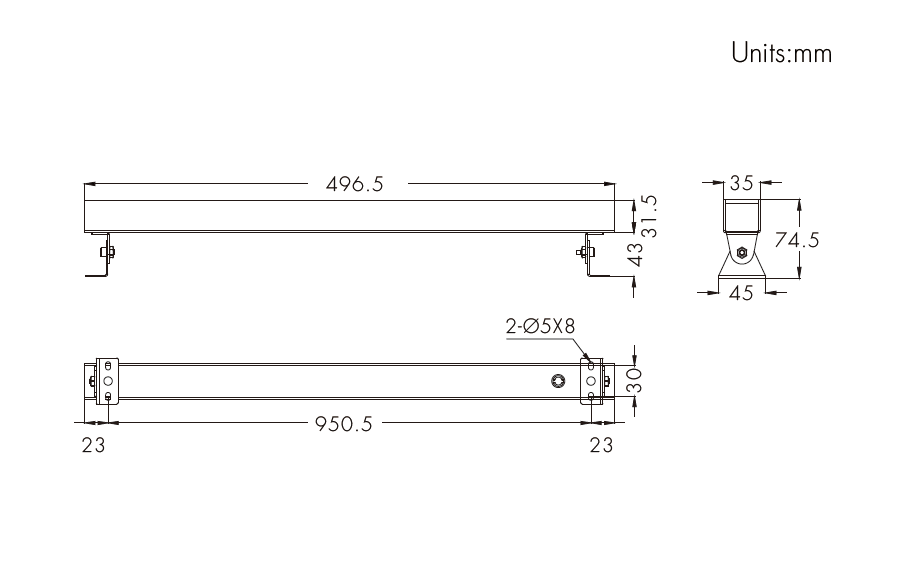

  • Multiple Length Options - Available in 275mm, 496.5mm, and 996.5mm lengths
  • High-Brightness LED Configuration - Features 24pcs or 36pcs of 1W SMD LEDs per meter
  • Flexible Power Ratings - Choose from 6W, 12W, 15W, 18W, 24W, 30W, or 36W options
  • Wide Color Temperature Selection - Single-color options from 2100K to 6000K plus RGB colors
  • Multiple Beam Angle Options - Choose from 10°, 15°, 25°, 37°, 60°, and various rectangular beam angles
  • True IP68 Waterproof Rating - Certified for continuous underwater installation
  • Low-Voltage Safe Operation - Operates on 24VDC input for energy efficiency and safety
  • IK08 Impact Resistance - Robust construction for demanding installations
  • Surface-Mounted Design - Includes adjustable bracket for easy installation
  • Compliance & Warranty - CE and RoHS certified with 2-year warranty
Technical Specifications
Item Number Length (mm) Light Color Light Source Beam Angle Rated Power Luminous Flux (LM) IP Rate IK Rate
B5LA0656 275mm Single Color 6pcs×1W LED 10°, 15°, 25°, 36°, 60°, 10x15°, 10x30°, 10x45°, 10x60° 6W Cool white=430LM Warm White=360LM IP68 IK08
B5LA1256 496.5mm Single Color 12pcs×1W LED 10°, 15°, 25°, 36°, 60°, 10x15°, 10x30°, 10x45°, 10x60° 12W Cool white=870LM Warm White=730LM IP68 IK08
B5LA1856 496.5mm Single Color 18pcs×1W LED 10°, 15°, 25°, 36°, 60°, 10x15°, 10x30°, 10x45°, 10x60° 18W Cool white=1300LM Warm White=1080LM IP68 IK08
B5LA2456 996.5mm Single Color 24pcs×1W LED 10°, 15°, 25°, 36°, 60°, 10x15°, 10x30°, 10x45°, 10x60° 24W Cool white=1730LM Warm White=1435LM IP68 IK08
B5LA3656 996.5mm Single Color 36pcs×1W LED 10°, 15°, 25°, 36°, 60°, 10x15°, 10x30°, 10x45°, 10x60° 36W Cool white=2600LM Warm White=2150LM IP68 IK08
B5LA0616 275mm RGB Color (2R/2G/2B) 6pcs×1W LED 10°, 15°, 25°, 36°, 60°, 10x15°, 10x30°, 10x45°, 10x60° 6W 150LM IP68 IK08
B5LA1216 496.5mm RGB Color (4R/4G/4B) 12pcs×1W LED 10°, 15°, 25°, 36°, 60°, 10x15°, 10x30°, 10x45°, 10x60° 12W 300LM IP68 IK08
B5LA1816 496.5mm RGB Color (6R/6G/6B) 18pcs×1W LED 10°, 15°, 25°, 36°, 60°, 10x15°, 10x30°, 10x45°, 10x60° 18W 450LM IP68 IK08
B5LA2416 996.5mm RGB Color (8R/8G/8B) 24pcs×1W LED 10°, 15°, 25°, 36°, 60°, 10x15°, 10x30°, 10x45°, 10x60° 24W 600LM IP68 IK08
B5LA3616 996.5mm RGB Color (12R/12G/12B) 36pcs×1W LED 10°, 15°, 25°, 36°, 60°, 10x15°, 10x30°, 10x45°, 10x60° 36W 900LM IP68 IK08
Notes:
1. Color: Mono color: 2000K, 2400K, 2700K, 3000K, 4000K, 6000K, Red, Green, Blue and etc.
2. Specifications are subject to change without notice.
Installation Guidelines
  • Wiring - Connect to constant voltage 24VDC output power supply in parallel using IP68 connectors or connection box
  • Submersion Requirement - Must be installed underwater to prevent overheating and ensure proper heat dissipation
  • Mounting - Surface mount using included adjustable bracket on ground, wall, or ceiling surfaces

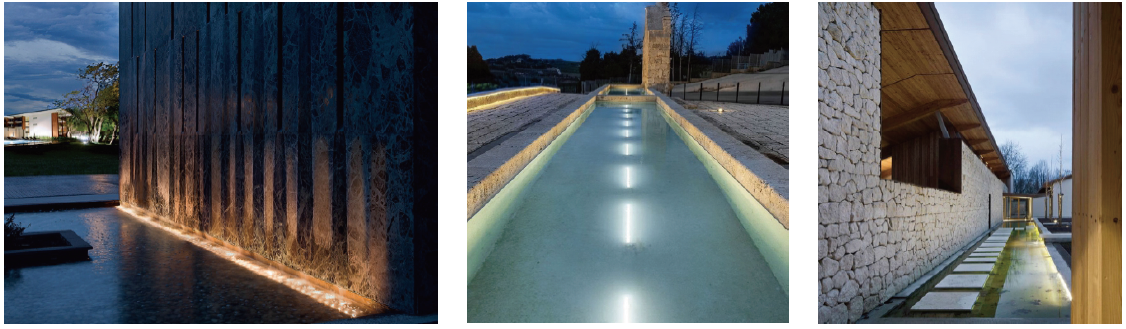

Application Scenarios
Surface Mounted 316 Stainless Steel IP68 LED Underwater Linear light 12W 18W 24W 36W 500MM 1000MM in single or RGB Color for Pool or Pond Lighting
  • Fountains - Enhance water features with dynamic, color-changing or steady illumination
  • Swimming Pools - Create stunning nighttime pool aesthetics with safe, low-voltage lighting
  • Ponds & Water Gardens - Accentuate aquatic plants, fish, and surrounding landscape elements
  • Architectural Water Features - Highlight waterfalls, reflecting pools, and decorative water installations
  • Commercial & Resort Projects - Ideal for hotels, spas, theme parks, and public spaces
Why Choose COMI Landscape Lighting?
  • Marine-Grade Durability - SUS316 stainless steel construction for long-term performance
  • Customizable Solutions - Extensive options in length, color, beam angle, and power
  • Reliable Quality - CE and RoHS certified with rigorous quality control and 2-year warranty
  • Expert Support - Technical guidance from product selection through installation
Ordering Information
For detailed product selection, custom configurations, or bulk order inquiries, please contact our sales team. We offer OEM/ODM services and welcome distributor partnerships worldwide.
COMI Lighting - Professional LED Outdoor Lighting Solutions for Aquatic Environments.
