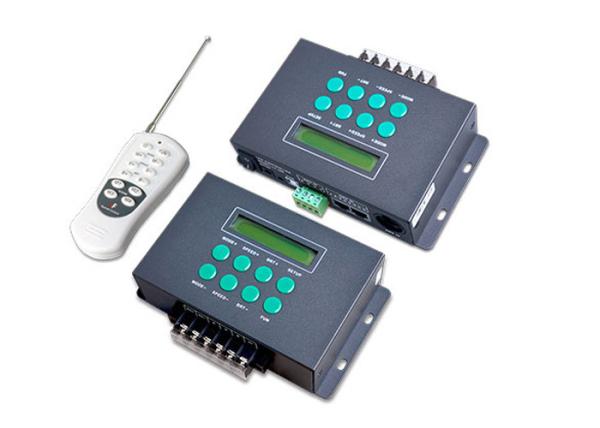

12- 24VDC 8A / CH 3CH LED RGB / DMX / RDM Controller with RF Remote Controller
12- 24VDC 8A / CH 3CH LED RGB / DMX / RDM Controller with RF Remote Controller
12- 24VDC 8A / CH 3CH LED RGB / DMX / RDM Controller with RF Remote Controller
12- 24VDC 8A / CH 3CH LED RGB / DMX / RDM Controller with RF Remote Controller
12- 24VDC 8A / CH 3CH LED RGB / DMX / RDM Controller with RF Remote Controller
12- 24VDC 8A / CH 3CH LED RGB / DMX / RDM Controller with RF Remote Controller
Specifications
Brand Name :
LT-Series LED RGB / DMX / RDM Controller
Model Number :
CL-LT-300-A3
Certification :
CE, ROHS, FCC, ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
10pcs
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
3~12 Days
Packaging Details :
L260×W132×H46mm, 0.85kg
Product Type :
RGB / DMX / RDM Controller
Input Voltage :
DC12V~DC24V
Max load current :
8A/CH x3 Max 24A
Max load power :
288W/576W(12V/24V)
Function mode :
39 changing modes
Output gray scale :
DMX mode: 256 levels/CH, RGB mode:1024 levels/CH
DMX512 standard :
DM×512
DMX512 Socket :
XLR-3, RJ45, Green terminal
Remote control distance :
100Meters
Warranty :
5 Years
Description

CL-LT-300-A3 12- 24VDC 8A / CH 3CH LED RGB / DMX / RDM Controller with RF Remote Controller CE, ROHS, FCC, ISO9001:2008

CL-LT-300 RGB/DMX Controller with LCD screen, which is dedicated to control entire synchronous color changes of Led lights with 4-pin 3-loop cables (common anode), 36 optional modes, built-in a standard DMX512 decoder to receive universal DMX512 signal. It can work standalone or work with DMX512 devices to receive standard DMX512 signal. Also.

it can add power repeater to expand power unlimitedly if one controller is not enough to provide the power output.

Performance Features

  • Built-in a LCD screen, easy to set up parameters;
  • Built-in perpetual calendar, real-time display system clock, can be set up to play different programs in any time, Monday to Sunday or holiday.
  • 28 lighting modes, such as, single color brightness, color change, color smooth, and color strobe, etc.
  • Multilevel changing speed, brightness and RGB grey scale adjustment for your choices, 256 brightness levels per RGB(16.77 million static colors).
  • Feel free to define many changing modes into a step, 8 independent cycle steps maximum.
  • Support different input ports like standard XLR-3, RJ45 and Green terminals, etc.

Product parameter

Input voltage DC12V~DC24V
Max load current 8A/CH x3 Max 24A
Max load power 288W/576W(12V/24V)
Function mode 39 changing modes
Output gray scale DMX mode: 256 levels/CH, RGB mode:1024 levels/CH
DMX512 standard DM×512
DMX512 Socket XLR-3, RJ45, Green terminal
Remote control distance 100m
working temperature -30℃~65℃
Dimension L163×W108×H40mm
Package Size L260×W132×H46mm
Weight (G.W) 815g

12- 24VDC 8A / CH 3CH LED RGB / DMX / RDM Controller with RF Remote Controller

12- 24VDC 8A / CH 3CH LED RGB / DMX / RDM Controller with RF Remote Controller

12- 24VDC 8A / CH 3CH LED RGB / DMX / RDM Controller with RF Remote Controller

12- 24VDC 8A / CH 3CH LED RGB / DMX / RDM Controller with RF Remote Controller

12- 24VDC 8A / CH 3CH LED RGB / DMX / RDM Controller with RF Remote Controller
