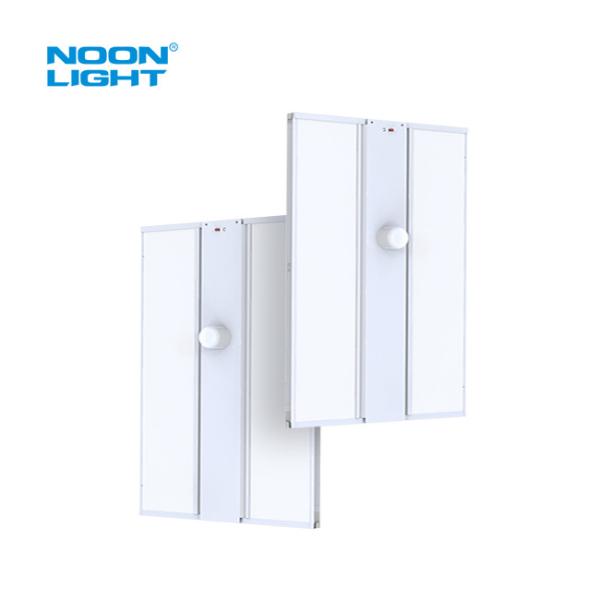

Smooth Dimming 30-320W LED Linear Highbay By One Driver
Smooth Dimming 30-320W LED Linear Highbay By One Driver
Specifications
Brand Name :
Noonlight
Model Number :
N-HBL
Certification :
DLC / ETL / RoHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
28-30 Working days
Packaging Details :
1pc/inner box, 10pcs/CTN, Packing Dimension: L655xW270xH312 mm
Product Name :
Power selective LED linear high bay
Input Voltage(V) :
100-277VAC or 100-347VAC
CCT :
40K/50K CCT Tunable
CRI :
Ra>80
Installation :
Surface Mounted, Wall Mounted
Warranty(Year) :
5 years warrantly
Description

Smooth Dimming 30-320W LED Linear Highbay By One Driver

165lm/W Linear LED High Bay Features​

  • Front Access Door for Easy Maintenance
  • Various Lens Option: Clear, Frosted, Angled lens
  • 4 step power tunable and 3CCT selectable
  • Universal input voltage 120-277Vac/347Vac,347-480Vac
  • Class P Programmable LED Driver, 0-10V Dimming, Dim to off.​
  • ETL Linear High Bay Plugable PIR Sensor and Motion Sensor, Zhaga PIR & Motion Sensor

Specification

Product Name 1x2FT LED Linear Highbay
Input Voltage 120-277VAC, 0-10V Dimmable, Dim to Off
Lumen Efficacy 165LM/W
Dimension L24.6 x W16 x H1.8"
CCT 4000/4500/5000K Tunable
or 4000K,5000K
Max Power 48W 65W 85W 125W
Lumen 7950-6600-5775-4950LM 10725-9900-9075-8250LM 14025-11550-9900-7425LM 20625-18975-17325-15675LM
Wattage 48W-40W-35W-30W 65W-60W-55W-50W 85W-70W-60W-45W 125W-115W-105W-95W
Installation Pendant Mounting & Surface Mounting
Certificates ETL Listed, DLC 5.1 Premium

Accessories

Smooth Dimming 30-320W LED Linear Highbay By One Driver Smooth Dimming 30-320W LED Linear Highbay By One Driver Smooth Dimming 30-320W LED Linear Highbay By One Driver

Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting

Specification

  • Dual PD Technology: can identify daylight and artificial light.
  • Input Voltage: 12VDC Output: 0-10V, 25mA sinking current
  • IR remote commissioning: easy setting via remote controller
  • Photocell available

Smooth Dimming 30-320W LED Linear Highbay By One Driver

Linear high bay with emergency back up 15W or 30W UL Listed Emergency Backup

  • Listed for field Instllation-UL924 & CSA C22.2 NO. 141
  • Battery Type:Li-ion
  • Battery Recharge Time: 24Hrs
  • Surge Protection: 3KV

Lighting Service

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

  • OEM/ODM Serivce
  • Photometric/IES file
  • PCB Design/Driver Design
  • Heat Management/Optical Design
  • Industry Design
  • Market Support
  • 3D Printing
  • Multiple Listing/Private Label.

Smooth Dimming 30-320W LED Linear Highbay By One Driver

Applications

Schools, offices, conference room, hospitality etc.

Smooth Dimming 30-320W LED Linear Highbay By One Driver
