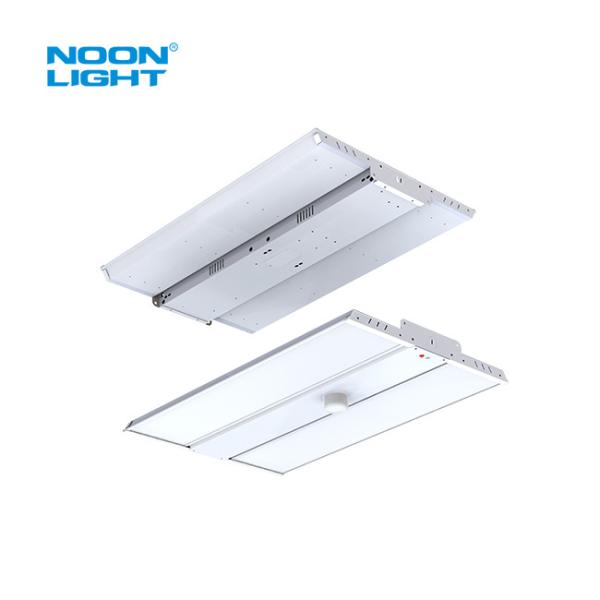

DLC5.1 Linear Highbay 300W With Build In Emergency Back Up Battery
DLC5.1 Linear Highbay 300W With Build In Emergency Back Up Battery
Specifications
Brand Name :
Noonlight
Model Number :
N-HBL
Certification :
DLC / ETL / RoHS
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30+ working days
Packaging Details :
1pc/inner box, 10pcs/CTN, Packing Dimension: L655xW270xH312 mm
Product Name :
Adjustable Lumen With 3000K 3500K 4000K 5000K Color Switchable 90min UL 8W Emergency Backup Inclu
Power :
50W-55W-60W-65W Adjustable
CCT :
30K/35K/40K/50K CCT Tunable
CRI :
Ra>80
Waterproof :
IP-65
Warranty(Year) :
5 years warrantly
Description

DLC5.1 Linear Highbay 300W With Build In Emergency Back Up Battery,Back Up Time 90mins

Noonlight Linear Highbay Led fixture is the perfect solution for a wide variety of applications and mounting heights. Its multiple lumen packages make it an ideal choice as a one for one replacement of conventional fluorescent and metal halide high bay systems.​​

​

Features​

  • 120-277Vac Linear highbay One and Only Cutting Edge Class 2 Driver Techonology,
  • 1 Driver only for All of Power Up to 320W with Class 2 Certificated(100-347VAC only)
  • 4 Step Power Adujustable, and 3 CCT Tunable(Optional), minimize stock, 1 SKU can cover max. of 12 models.
  • Minimize Stock,1SKU can cover max.12 models.
  • Universal input voltage 120-277Vac/347Vac,347-480Vac
  • Class P Programmable LED Driver, 0-10V Dimming, Dim to off.​

LED Linear High Bay Specification

Model No DLC Input Voltage Wattage Lens CCT Rated Lumen @ 50K

Rated

Efficancy

@ 50K

 Viewing Angle Replacing
N-HBL-12-30W-8XX-

Pending

100-277VAC

or

100-347VAC



 30

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K



 4950 165 120°

100W MH,

4-lamp T8 NBF
N-HBL-12-35W-8XX 35 5775
N-HBL-12-40W-8XX 40 6600
N-HBL-12-50W-8XX 50 8250
N-HBL-12-50W-8XX

Pending

100-277VAC

or

100-347VAC



 50

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K



 8250 165 120°

175W MH,

4-lamp T8 HBF,

2-lamp T5HO
N-HBL-12-55W-8XX 55 9075
N-HBL-12-60W-8XX 60 9900

200W MH,

6-lamp T8 NBF
N-HBL-12-65W-8XX 65 10725
N-HBL-12-95W-8XX

Pending

100-277VAC

or

100-347VAC

or

347-480VAC



 95

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K



 15675 165 120°

400W MH,

6-lamp T5HO
N-HBL-12-105W-8XX 105 17325
N-HBL-12-115W-8XX 115 18975

575W MH,

10-lamp T8 HBF
N-HBL-12-125W-8XX 125 20625

750W MH,

8-lamp T5HO
N-HBL-12-130W-8XX Pending

100-277VAC

or

100-347VAC

or

347-480VAC

 130

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 21450 165 120°

875W MH,

10-lamp T5HO
N-HBL-12-140W-8XX 140 23100
N-HBL-12-155W-8XX 155 25575

1000WMH,

12-lamp T5HO
N-HBL-12-170W-8XX 170 28050

Accessories

DLC5.1 Linear Highbay 300W With Build In Emergency Back Up Battery

15W or 30W UL Listed Emergency Backup

  • Battery Type:Li-ion
  • Battery Recharge Time: 24Hrs
  • Surge Protection: 3KV
  • Protection:
  • Input over-current Protection (Fuse)
  • Output over-voltage Protection
  • Output Low Voltage Protection
  • Output Short Circuit Protection
  • Working Temp.: 10℃ to 50℃

Advantages

Power Tunable Linear High Bay HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

DLC5.1 Linear Highbay 300W With Build In Emergency Back Up Battery

Power Adjustable Slide Switch Position
Size/Positon 0 1 2 3
1X2 60W 70W 75W 85W
1X2 95 105 115 125
1X2 130 140 155 170

LED Linear High Bay Applications

Schools, offices, conference room, hospitality etc.

DLC5.1 Linear Highbay 300W With Build In Emergency Back Up Battery
