Office/School LED Flat Panel Retrofit Kit With 120 Degree Beam Angle
Office/School LED Flat Panel Retrofit Kit With 120 Degree Beam Angle
Specifications
Brand Name :
Noonlight
Model Number :
N-TF-SLK-1X4FT
Place of Origin :
China
Certification :
DLC, ISO9001, Rosh, ETL,
MOQ :
100pcs
Price :
Negotiable
Packaging Details :
Carton box
Delivery Time :
30 day(s)
Payment Terms :
T/T, AliPay, PayPal
Supply Ability :
3000 pcs/day
Power :
16W/20W/24W/27W
Input Voltage :
100-277VAC Or 100-347VAC Or 347-480VAC
Material :
White Powder Painted Steel
Luminous Flux :
2500-5000LM
Lifespan :
50,000 Hours
Warranty :
5 Years
Product Name :
LED Flat Panel Retrofit Kit
CRI :
>80
Description

Product Description:

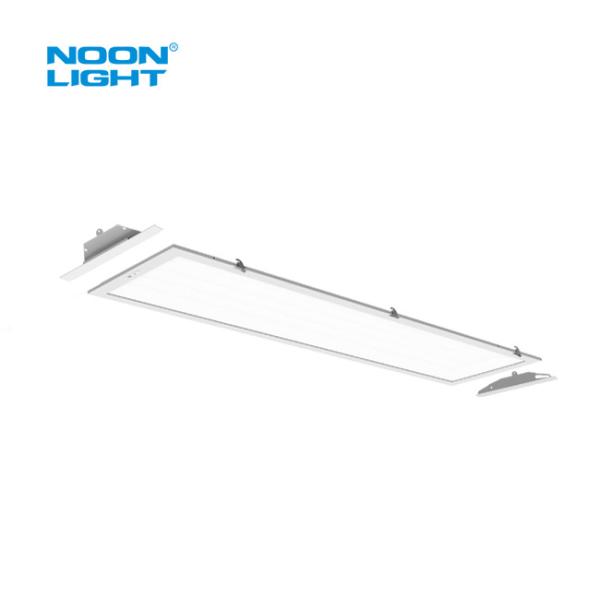

The Noonlight Back-lit LED Panel Retrofit Kit is an ideal solution to replace fluorescent troffers with LED lighting. Its construction features precise optical lenses that disperse the light across each individual LED, eliminating any risk of yellowing during its lifetime.

These retrofit kits provide uniform illumination with minimal glare, making them a perfect choice for a variety of commercial facilities, including offices, retail stores, healthcare centers, educational institutions, hospitality spaces, and more. Additionally, these kits integrate power and color temperature adjustable functions, offering a wide range of lumen packages and color options for all indoor lighting scenarios.

Features:

UP TO 125LM/W CLASS P Programmable LED Driver

This series features 4 step power adjustable LED drivers with a CRI>80 and CCT tunable from 3000K to 5000K. Additionally, there is an auxillary connection allowing for a low voltage sensor or BLE to be connected to the driver for IOT networks. It is also equipped with 0-10V dimmable capabilities and Dim to off functions, rendering it flicker free. Furthermore, it also has optional features such as a built-in PIR sensor and built-in emergency driver.

Applications:

Schools, offices, conference room, hospitality etc.


Specification:

Model No

DLC

Input Voltage

Rated Wattage

Lens

Color

 Rated Lumen @3000K

Rated Efficacy

Viewing Angle

Rated Lifetime

Replacing

Power Adjustable, CCT Tunable, 0-10V Dimmable, Troffer LED Fixture, Standard Version

N-TF-14-27

P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 27W Frosted

30K

35K

40K

50K

3375LM

 125LM/W 120 °

L70>

50000hrs

60W - 200W

Incandescent

N-TF-14-24

P

 24W

3000LM

N-TF-14-20

P

 20W

2500LM

N-TF-14-16

16W

2000LM

Support and Services:

LED Flat Panel Retrofit Kit Technical Support and Service

We understand how important it is to our customers to have a reliable and efficient LED Flat Panel Retrofit Kit. Our technical support and service team is here to help you with any problems you may have with the product.

We provide a variety of technical support services to our customers, including:

  • Onsite technical support
  • Online technical support
  • Phone support
  • Software updates
  • Troubleshooting
