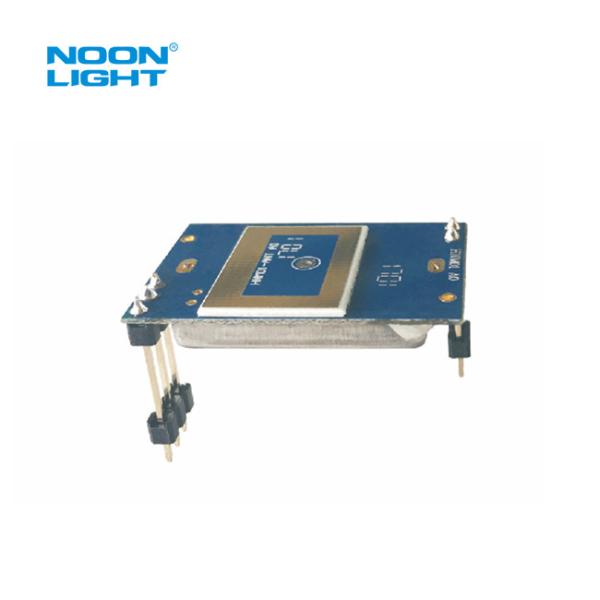

RoHS Certified Microwave PIR Motion Sensor For All Kinds Of Lighting
RoHS Certified Microwave PIR Motion Sensor For All Kinds Of Lighting
Specifications
Brand Name :
Noonlight
Model Number :
NMO1
Certification :
RoHS
Place of Origin :
China
MOQ :
300
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30+ working days
Product Name :
Microwave Motion Sensor / Photocell 1 Hz~2 KHz Receiver Bandwidth Available For All Kinds of Lighting
Beam aperture :
1Hz ~2KHz
Receiver bandwidth: :
1Hz ~2KHz
Operating current (Cw mode) :
14mA@5V
Mountng height :
3-6m
Pulse width (min.) :
10~50us (10kHz~2kHz)
Duty cycle :
10% DC
Description

Microwave Motion Sensor / Photocell 1 Hz~2 KHz Receiver Bandwidth Available For All Kinds of Lighting

RoHS Certified Microwave PIR Motion Sensor For All Kinds Of Lighting

  • Low cost.
  • 5.8GHz C-band miniature transceiver.
  • Patch antenna,antenna gain: 2 dBi.
  • Beam aperture: 30°.
  • 2 balanced mixer.
  • 5dBm EIRP output power.
  • Receiver bandwidth: 1Hz ~2KHz.
  • Operating current (Cw mode): 14mA@5V.
  • Low power consumption (Pulse mode)
  • Average current: 1.5mA typ.
  • Pulse width (min.):10~50us (10kHz~2kHz).
  • Duty cycle: 10% DC.
  • RoHS compliant.
  • Tested To EN300 440.

RoHS Certified Microwave PIR Motion Sensor For All Kinds Of Lighting


NMO1

 Default Setting Setting

Sensitivity

 100% 100%, 75%, 50%, 25%

Daylight Sensor

 Disable 2lux, 10lux, 25lux, 50lux, Disable, Ambient Learn

Hold Time

 5 min 3s, 30s, 90s, 5min, 10min, 30min

Twilight Time

 Infinite 10s, 5min, 10min, 30min, Infinite

Twilight Level

 10% Off, 10%, 30%, 50%

RoHS Certified Microwave PIR Motion Sensor For All Kinds Of Lighting

PIN

 Name

Description

1

 Vcc 5+0.25v Dc

2

 Gnd /

3

 Lf Output /

4

 Nc Fix Pin

5

 Nc Fix Pin

RoHS Certified Microwave PIR Motion Sensor For All Kinds Of Lighting

RoHS Certified Microwave PIR Motion Sensor For All Kinds Of Lighting
