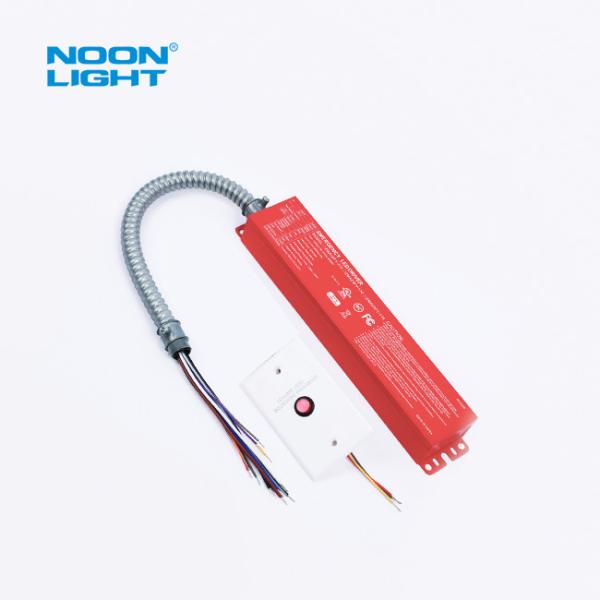

Ver Temperature Protection Emergency Backup Battery UL Listed 40 Watt
Ver Temperature Protection Emergency Backup Battery UL Listed 40 Watt
Specifications
Brand Name :
Noonlight
Model Number :
N-BEP
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30+ working days
Input Voltage :
AC100-277V/AC100-347V
Outout Voltage :
DC170V
Recharge Time :
24Hrs
Power :
25W
Dischage Time :
≥ 90Mins
Battery :
Li-on（0-50℃）
Ambient Temp :
32~122°F(0~50°C)
Warranty :
5 Years
Weight :
2.66 lbs(1.2kg)
Description

Build-in 90mins Emergency Backup EMA25170-FY

Description

The contains a control/monitor circuit which will perform a 30-second discharge test once a month and a discharge test once a year. At this time, the unit simulate an AC power failure and automatically switch to emergency mode. During routine testing, the unit will monitor the operation of the LED load, battery voltage, and emergency duration, if the unit detect any problems, the indicator will flflash quickly.

UL Emergency Backup Features

  • UL Listed for us and canada
  • Listed to UL924 and tested to CSA C22.2 NO.141 Field or factory installation
  • High voltage output
  • Low energy consumption CEC compliance
  • Constant output power
  • Self-testing
  • Battery:over temperature protection

Dimension

Ver Temperature Protection Emergency Backup Battery UL Listed 40 Watt

Size(inch)

Length

Width

Height

Radius

Flexible

Conduit

Conduit

Diameter

Connector

Diameter

Length of

the wire

L1

L2

W1

W2

/

R1

R2

/

/

/

/

12.32"

11.73"

2.32"

1.65"

1.48"

0.14"

0.08"

13"

0.75

0.79"

5.51"

Wiring Diagram

*When the led driver power less than the emergency power Wiring Diagram(A)Normal

Ver Temperature Protection Emergency Backup Battery UL Listed 40 Watt

*When the led driver power more than the emergency power(B)With Dimmer

Ver Temperature Protection Emergency Backup Battery UL Listed 40 Watt

(C)Without Dimmer

Ver Temperature Protection Emergency Backup Battery UL Listed 40 Watt

(D) Without Switch and Without Dimmer

Ver Temperature Protection Emergency Backup Battery UL Listed 40 Watt

(E) With Sensor (AC)


Ver Temperature Protection Emergency Backup Battery UL Listed 40 Watt

(F) With Sensor (DC12V)

Ver Temperature Protection Emergency Backup Battery UL Listed 40 Watt

Applications

Ideal for external driver fixture, fixed on the fixing fixture, suitable for Panel, Troffer, Linear high bay fixture, 25W is suitable for fixed devices with power ≤150W
