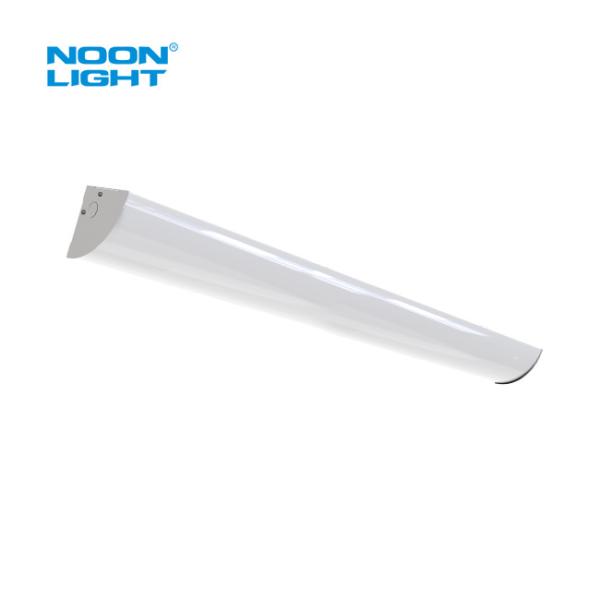

4000lm 25W LED Stairwell Lights Suspension Mounted 130lm/W
4000lm 25W LED Stairwell Lights Suspension Mounted 130lm/W
Specifications
Brand Name :
Noonlight
Model Number :
NL-LC4-4FT
Certification :
DLC / ETL / RoHS
Place of Origin :
China
MOQ :
200
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30+ working days
Packaging Details :
1pc/inner box, 4pcs/CTN,
Product Name :
4FT 25W 130lm/W 4000lm LED Corner Stairwell Light, 3000K 3500K 4000K 5000K Tunable
Power :
25W Fixed Wattage
CCT :
30K/35K/40K/50K Tunable
Light Source :
2835 SMD, CRI>80
Installation :
Surface Mounted, Suspension Mounted
Warranty :
5 years
Certificate :
ETL/DLC 5.1 Preminum
Description

4FT 25W 130lm/W 4000lm LED Corner Stairwell Light, 3000K 3500K 4000K 5000K Tunable

4000lm 25W LED Stairwell Lights Suspension Mounted 130lm/W

  • 4” LED Corner LED Stairwell fixture is a fan style linear led fixture, available with 2ft, 4ft and 8ft long.
  • Integral with new trend of field-adjustable functions provide our customers greater flexibility on wattages and color temperatures.
  • Optional Occupancy Sensor & Built-in Emergency Backup
  • Ideal for stairwell, passageway and general lighting etc.


4000lm 25W LED Stairwell Lights Suspension Mounted 130lm/W

  • CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
  • Minimize stock, 1 SKU can cover max. of 16 models.
  • Various Lens Option: Clear, Frosted,
  • 5-100% 0-10V dimmable, flicker free, Dim to off.
  • Built-in Emergency Driver Option.

4000lm 25W LED Stairwell Lights Suspension Mounted 130lm/W

Model No DLC Input Voltage Wattage Lens CRI/CCT Rated Lumen @ 50K

Rated

Efficancy

@ 50K

 Viewing Angle Replacing
N-LC4-2FT-40W-1XX-
[Blank, S1, S2]-C-FL-
CT-FA-Z		 YES

100-277VAC

or

100-347VAC

 40

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

 5130 126 180°

2 X T5HO 4FT 54W

3 X T8 4FT

32W
N-LC4-2FT-25W-1XX-
[Blank, S1, S2]-C-FL-
CT-FA-Z		 YES

100-277VAC

or

100-347VAC

 25

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

 3300 130 180°

2 X T5HO 4FT 54W

3 X T8 4FT

32W
N-LC4-2FT-18W-1XX-
[Blank, S1, S2]-C-FL-
CT-FA-Z		 YES

100-277VAC

or

100-347VAC

 18

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

 2340 132 180°

2 X T5HO 4FT 54W

3 X T8 4FT

32W
N-LC4-2FT-12W-1XX-
[Blank, S1, S2]-C-FL-
CT-FA-Z		 YES

100-277VAC

or

100-347VAC

 12

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

 1650 128 180°

1 X T8 4FT 32W

4000lm 25W LED Stairwell Lights Suspension Mounted 130lm/W

4000lm 25W LED Stairwell Lights Suspension Mounted 130lm/W

Bi-level 12VDC 0-10V Motion Sensor

Specification

  • Dual PD Technology: can idenify daylight and artificatial light.
  • Input Voltage: 12VDC
  • Output: 0-10V, 25mA sinking current
  • Mouting Height: Max. 40ft.
  • Detection Range: 30ft @ 40ft height in diameter
  • IR remote commissing: easy setting via remote controller
  • Photocell available

Default Setting/Setting

  • Sensitivity: 100%/25%, 50%, 75%, 100%
  • Daylight Sensor: Disable/Ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
  • Hold Time: 5min/10s, 1min, 5min, 5min, 10min, 15min, 20 min, 30min, 60 min
  • Twilgith Time: never turn off/1min, 30min, 1h, never tun off
  • Twilight Level: 20%/off, 10%, 20%, 50%

4000lm 25W LED Stairwell Lights Suspension Mounted 130lm/W

HOW TO CHANGE THE CCT IN THIS FIXTURE

4000lm 25W LED Stairwell Lights Suspension Mounted 130lm/W

CCT Tunable Slide Switch Position

Position/Group

CCT

CCT1

3000K

CCT2

3500K

CCT3

4000K

CCT4

5000K

4000lm 25W LED Stairwell Lights Suspension Mounted 130lm/W

4000lm 25W LED Stairwell Lights Suspension Mounted 130lm/W


4000lm 25W LED Stairwell Lights Suspension Mounted 130lm/W4000lm 25W LED Stairwell Lights Suspension Mounted 130lm/W
4000lm 25W LED Stairwell Lights Suspension Mounted 130lm/W

Stairwell Lighting, Passageway Lighting, Corridor Lighting, Shop Lighting, Strip Lighting, Low Bay Lighting, Warehouse Lighting

4000lm 25W LED Stairwell Lights Suspension Mounted 130lm/W
