4” Wide 2FT 30W 20W 15W 10W Power Adjustable 1300-4000lm LED Stairwell Light 3000K 3500K 4000K 5000K Tunable Bi-levle Motion Sensor Integrated 4W Emergency Backup Included

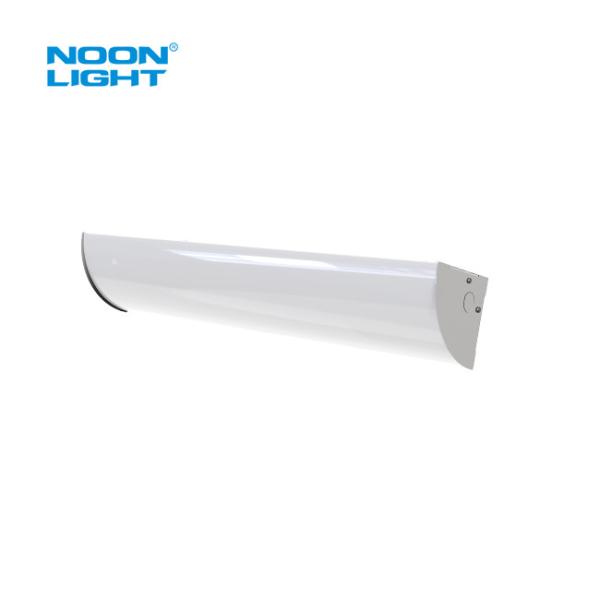

• 4” LED Corner LED Stairwell fixture is a fan style linear led fixture, available with 2ft, 4ft and 8ft long.

• Ideal for stairwell, passageway and general lighting etc.

• CLASS P Programmable LED Driver, 4 Step Power Adujustable,
• CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
• Various Lens Option: Clear, Frosted,
• 5-100% 0-10V dimmable, flicker free, Dim to off.
• Built-in PIR Sensor and Motion Sensor Options.
• Built-in Emergency Driver Option.

Bi-level 12VDC 0-10V Motion Sensor

Specification

• Dual PD Technology: can idenify daylight and artificatial light.
• Input Voltage: 12VDC
• Output: 0-10V, 25mA sinking current
• Mouting Height: Max. 40ft.
• Detection Range: 30ft @ 40ft height in diameter
• IR remote commissing: easy setting via remote controller
• Photocell available

Default Setting/Setting

• Sensitivity: 100%/25%, 50%, 75%, 100%
• Daylight Sensor: Disable/Ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
• Hold Time: 5min/10s, 1min, 5min, 5min, 10min, 15min, 20 min, 30min, 60 min
• Twilgith Time: never turn off/1min, 30min, 1h, never tun off
• Twilight Level: 20%/off, 10%, 20%, 50%

4W or 8W UL Listed Emergency Backup

• Listed for field Instllation-UL924 & CSA C22.2 NO. 141
• Input: 120-277VAC/347VAC 50/60Hz
• Output: 25-50VDC, 15 or 30W
• Illumination Time: 90min
• Battery Type:Li-ion/Ni-MH
• Battery Recharge Time: 24Hrs
• Surge Protection: 3KV
• Protection:
• Input over-current Protection (Fuse)
• Output over-voltage Protection
• Output Low Voltage Protection
• Output Short Circuit Protection
• Working Temp.: 10℃ to 50℃

HOW TO CHANGE THE WATTAGE IN THIS FIXTURE
