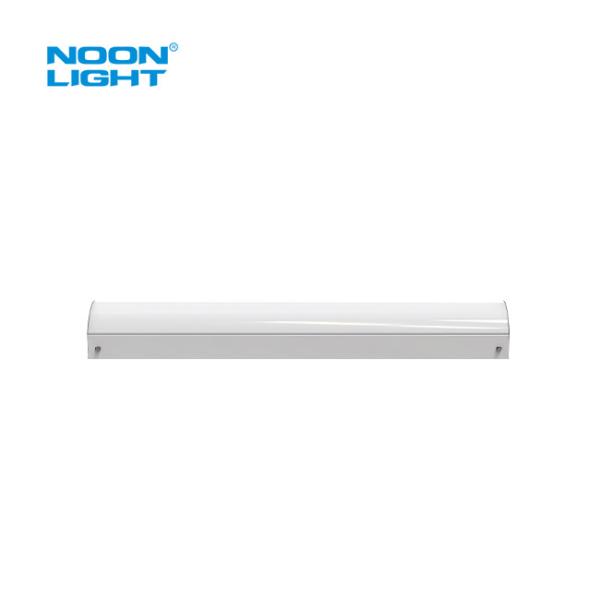

30W 4000lm 4FT Commercial LED Stairwell Lighting

Power Selective LED Stairwell Light Description

• 4” Linear Strip Light/Stairwell fixture is a compact diffused light for commercial, retail and residential purpose.
• Available with 2ft, 4ft and 8ft long.
• Integratl with new trend of field-adjustable functions provide our customers greater flexiblities on wattages and color temperatures.
• Optional Occupancey Sensor & Built-in Emergency Backup

Features

• DLC5.1 Premium LED Stairwell Light UP TO 135LM/W
• CLASS P Programmable LED Driver, 4 Step Power Adujustable,
• CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
• Minimize stock, 1 SKU can cover max. of 16 models.
• Power Selective LED Stairwell Light An auxiliary to connect low voltage sensor/BLE or other IOT network.
• L70>50,000hrs, 5 year warranty.

Specification

Accessories

,

Bi-level 12VDC 0-10V Motion Sensor

Specification

• Dual PD Technology: can idenify daylight and artificatial light.
• Input Voltage: 12VDC
• Output: 0-10V, 25mA sinking current
• Mouting Height: Max. 40ft.
• Detection Range: 30ft @ 40ft height in diameter
• IR remote commissing: easy setting via remote controller
• Photocell available

Default Setting/Setting

• Sensitivity: 100%/25%, 50%, 75%, 100%
• Daylight Sensor: Disable/Ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
• Hold Time: 5min/10s, 1min, 5min, 5min, 10min, 15min, 20 min, 30min, 60 min
• Twilgith Time: never turn off/1min, 30min, 1h, never tun off
• Twilight Level: 20%/off, 10%, 20%, 50%

4W or 8W UL Listed 90min Emergency Backup

• Listed for field Instllation-UL924 & CSA C22.2 NO. 141
• Input: 120-277VAC/347VAC 50/60Hz
• Output: 25-50VDC, 4W or 8W
• Illumination Time: 90min
• Battery Type:Li-ion/Ni-MH
• Battery Recharge Time: 24Hrs
• Surge Protection: 3KV
• Protection:
• Input over-current Protection (Fuse)
• Output over-voltage Protection
• Output Low Voltage Protection

Advantages

HOW TO CHANGE THE CCT IN THIS FIXTURE
