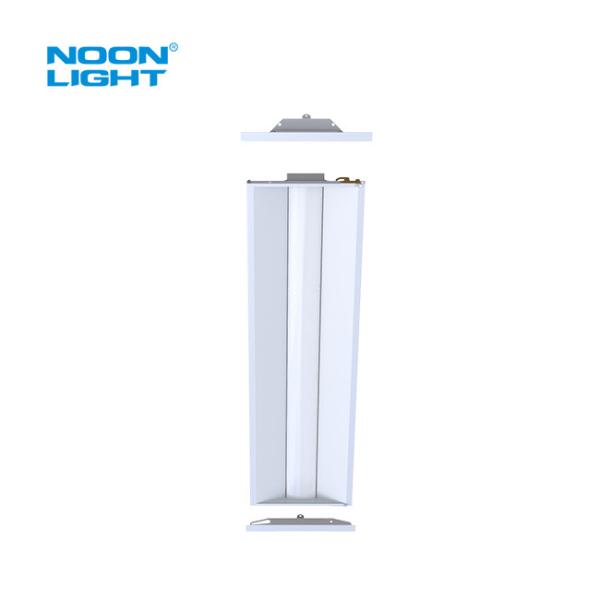

T Grid Recessed LED Troffer Retrofit 16W 20W 24W 27W Power Adjustable
T Grid Recessed LED Troffer Retrofit 16W 20W 24W 27W Power Adjustable
Specifications
Brand Name :
Noonlight
Model Number :
N-TR-SLK-1X4FT
Certification :
DLC / ETL / RoHS
Place of Origin :
China
MOQ :
200
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30+ working days
Packaging Details :
1pc/inner box, 4pcs/CTN,
Product Name :
T-Grid Recessed LED Troffer Retrofit
Power :
16W-20W-24W-27W Power Adjustable
CCT :
30K/35K/40K/50K Tunable
Housing :
24 Gauge Steel, Gloss White Painting
Installation :
Surface Mounted, Suspension Mounted
DLC Category :
Direct Linear Ambient Luminaires
Description

1x4FT LED Troffer Retrofit​ Description

  • Super sleek fixture allows the installers no need to remove the fluorescent fixture mounting from the ceiling.
  • Integral with new trend of field-adjustable functions provide our customers greater flexibility on wattages and color temperatures.

Features

  • DLC5.1 Premium LED Troffer Retrofit CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
  • CCT Tunable LED Troffer Retrofit 2 Depth Design: Super Thin & Standard
  • 5-100% 0-10V dimmable, flicker free, Dim to off.
  • CCT and Power Tuanable LED Troffer Retrofit Built-in Emergency Driver Option.
  • Adjustable CCT Troffer Retrofit L70>50,000hrs, 5 year warranty.

Specification

DLC 5.1 Premium
N-TR-14-40 40W 36W 30W 25W
30K 35K 40K 50K
Rated Lumen
@ 30K		 5000LM 4500LM 3750LM 3125LM
Rated Efficancy 125LM/W Lens Frosted
Input Voltage 120-347VAC/120 - 277VAC 0- 10V Isolated Dimmable
Warranty 5 Years Installation Surface Mounted, Suspension Mounted

Wattage Tunable Troffer Retrofit​ Installation

Suitable for surface mounted, suspended mounted.

T Grid Recessed LED Troffer Retrofit 16W 20W 24W 27W Power Adjustable

Troffer Retrofit With PIR Seneor Accessories

T Grid Recessed LED Troffer Retrofit 16W 20W 24W 27W Power Adjustable

T Grid Recessed LED Troffer Retrofit 16W 20W 24W 27W Power Adjustable

Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting

Default Setting/Setting

  • Sensitivity: 100%/25%, 50%, 75%, 100%
  • Daylight Sensor: Disable/Ambient Learn, 2lux, 10lux, 25lux, 50lux, 100lux, 300lux, Disable
  • Twilgith Time: never turn off/10s, 5min, 10min, 30min, 1h, never tun off
  • Twilight Level: 30%/off, 10%, 30%, 50%

T Grid Recessed LED Troffer Retrofit 16W 20W 24W 27W Power Adjustable

Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

T Grid Recessed LED Troffer Retrofit 16W 20W 24W 27W Power Adjustable

CCT Tunable Slide Switch Position

Position/Group

CCT

Low

3000K(Optional)

Middle 1

3500K

Middle 2

4000K

High

5000K

Lighting Service

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

  • OEM/ODM Serivce
  • Photometric/IES file
  • PCB Design/Driver Design
  • Heat Management/Optical Design
  • Industry Design
  • Market Support
  • 3D Printing
  • Multiple Listing/Private Label.

T Grid Recessed LED Troffer Retrofit 16W 20W 24W 27W Power Adjustable

CCT and Power Tuanable LED Troffer Retrofit​ Applications

Schools, offices, conference room, hospitality etc.

T Grid Recessed LED Troffer Retrofit 16W 20W 24W 27W Power Adjustable
