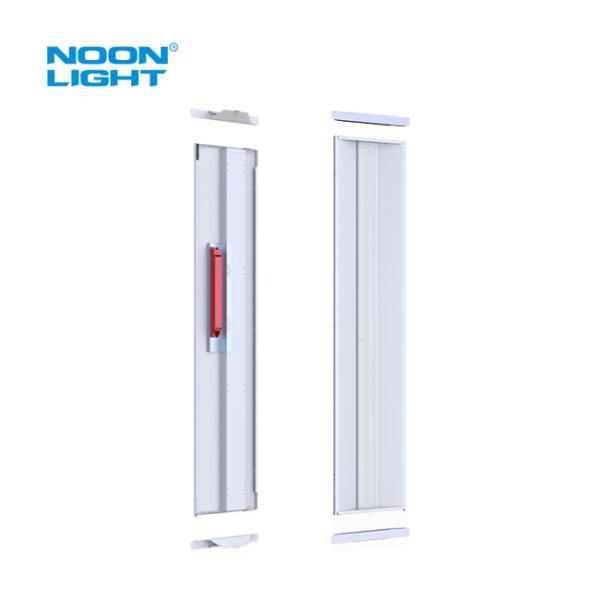

1x4 Foot Volumetric LED Retrofit Kit 16W 20W 24W 27W Power Adjustable
1x4 Foot Volumetric LED Retrofit Kit 16W 20W 24W 27W Power Adjustable
Specifications
Brand Name :
Noonlight
Model Number :
N-TR-SLK-1X4FT
Certification :
DLC / ETL / RoHS
Place of Origin :
China
MOQ :
200
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30+ working days
Packaging Details :
1pc/inner box, 4pcs/CTN,
Product Name :
1x4 Foot LED Volumetric Retrofit Kit
Power :
16W-20W-24W-27W Power Adjustable
CCT :
30K/35K/40K/50K Tunable
Housing :
24 Gauge Steel, Gloss White Painting
Installation :
Surface Mounted, Suspension Mounted
DLC Category :
Direct Linear Ambient Luminaires
Description

CCT and Power Tuanable LED Troffer Retrofit​ Description

  • Super sleek fixture allows the installers no need to remove the fluorescent fixture mounting from the ceiling.
  • Integral with new trend of field-adjustable functions provide our customers greater flexibility on wattages and color temperatures.

Features

  • DLC5.1 Premium LED Troffer Retrofit CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
  • Minimize stock, 1 SKU can cover max. of 16 models.
  • Flick Free Troffer LED Retrofit 5-100% 0-10V dimmable, flicker free, Dim to off.
  • CCT and Power Tuanable LED Troffer Retrofit Built-in Emergency Driver Option.
  • Wattage Tunable Troffer Retrofit L70>50,000hrs, 5 year warranty.

Specification

DLC 5.1 Premium
N-TR-14-27 27W 24W 20W 16W
30K 35K 40K 50K
Rated Lumen
@ 30K		 3375LM 3000LM 2500LM 2000LM
Rated Efficancy 125LM/W Lens Frosted
Input Voltage 120-347VAC/120 - 277VAC 0- 10V Isolated Dimmable
Warranty 5 Years Installation Surface Mounted, Suspension Mounted

Accessories

1x4 Foot Volumetric LED Retrofit Kit 16W 20W 24W 27W Power Adjustable

1x4 Foot Volumetric LED Retrofit Kit 16W 20W 24W 27W Power Adjustable

Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting

Default Setting/Setting

  • Sensitivity: 100%/25%, 50%, 75%, 100%
  • Daylight Sensor: Disable/Ambient Learn, 2lux, 10lux, 25lux, 50lux, 100lux, 300lux, Disable
  • Hold Time: 5min/30s, 90s, 5 min, 10min, 30min
  • Twilgith Time: never turn off/10s, 5min, 10min, 30min, 1h, never tun off
  • Twilight Level: 30%/off, 10%, 30%, 50%

Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

1x4 Foot Volumetric LED Retrofit Kit 16W 20W 24W 27W Power Adjustable

Power Adjustable Slide Switch Position

Size/Positon

0

1

2

3

1X4

27W

24W

20W

16W

2X2

27W

24W

20W

16W

2X4

40W

30W

25W

20W

Lighting Service

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

  • OEM/ODM Serivce
  • Photometric/IES file
  • PCB Design/Driver Design
  • Heat Management/Optical Design
  • Industry Design
  • Market Support
  • 3D Printing
  • Multiple Listing/Private Label.

1x4 Foot Volumetric LED Retrofit Kit 16W 20W 24W 27W Power Adjustable

CCT and Power Tuanable LED Troffer Retrofit​ Applications

Schools, offices, conference room, hospitality etc.

1x4 Foot Volumetric LED Retrofit Kit 16W 20W 24W 27W Power Adjustable
