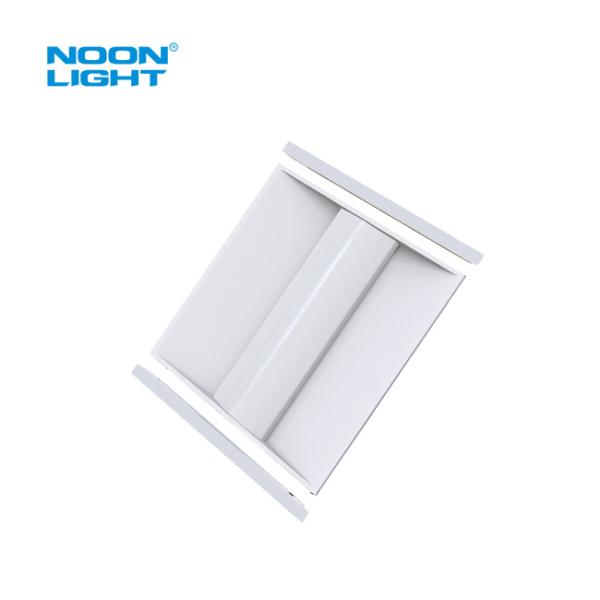

2x2 Center Basket LED Troffer Retrofit With Motion Sensor AC 120-277VAC
2x2 Center Basket LED Troffer Retrofit With Motion Sensor AC 120-277VAC
Specifications
Brand Name :
Noonlight
Model Number :
N-TR-SLK-2X2FT
Certification :
DLC / ETL / RoHS
Place of Origin :
China
MOQ :
200
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
28-30 Working days
Packaging Details :
1pc/inner box, 4pcs/CTN,
Product Name :
2x2 Center Basket Troffer Retrofit with Motion Sensor
Input Voltage(V) :
AC 120-277VAC or AC 120-347VAC
Housing :
24 Gauge Steel, Gloss White Painting
Light Source :
2835 SMD, CRI>80
Installation :
Surface Mounted, Suspension Mounted
DLC Category :
Direct Linear Ambient Luminaires & Stairwell and Passageway Luminaires
Description

2x2 Center Basket Troffer Retrofit with Motion Sensor

  • Noonlight LED Troffer Retrofit Kits are the ideal solution to update outdated fluorescent troffers into energy-efficient, contemporary LED systems. Each LED retrofit kit includes everything needed for a seamless installation without modifying the existing fixture mounting.

Features

  • Flick Free Troffer LED Retrofit UP TO 130LM/W
  • Wattage Tunable Troffer Retrofit CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
  • Minimize stock, 1 SKU can cover max. of 16 models.
  • Troffer Retrofit With Motion Sensor 5-100% 0-10V dimmable, flicker free, Dim to off.
  • L70>50,000hrs, 5 year warranty.

DLC5.1 Premium LED Troffer Retrofit Specification

Model No DLC Input Voltage Rated Wattage Lens Color Rated Lumen @ 30K

Rated

Efficancy

 Viewing Angle

Rated Lifetime

Replacing

N-TR-22-40-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 40W Frosted

30K

35K

40K

50K

5000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-36-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 36W Frosted

30K

35K

40K

50K

4500LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-30-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 30W Frosted

Ra>80,

30K

35K

40K

50K

3750LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-25-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 25W Frosted

Ra>80,

30K

35K

40K

50K

3125LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

Accessories

2x2 Center Basket LED Troffer Retrofit With Motion Sensor AC 120-277VAC

2x2 Center Basket LED Troffer Retrofit With Motion Sensor AC 120-277VAC

Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting

Specification

  • Input: 12-24VDC, >8ma
  • 0-10V DC output signal
  • Memeory function with one bottun commissiong.
  • IR Remote controller commission.
  • Detecton Range: Max. 6m in diameter.
  • Mounting Height: 3-4m.
  • Optional Daylight Harvesting

Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

2x2 Center Basket LED Troffer Retrofit With Motion Sensor AC 120-277VAC

Power Adjustable Slide Switch Position

Size/Positon

0

1

2

3

1X4

27W

24W

20W

16W

2X2

27W

24W

20W

16W

2X4

40W

30W

25W

20W

Lighting Service

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

  • OEM/ODM Serivce
  • Photometric/IES file
  • PCB Design/Driver Design
  • Heat Management/Optical Design
  • Industry Design
  • Market Support
  • 3D Printing
  • Multiple Listing/Private Label.

2x2 Center Basket LED Troffer Retrofit With Motion Sensor AC 120-277VAC

CCT and Power Tuanable LED Troffer Light Applications

Schools, offices, conference room, hospitality etc.
