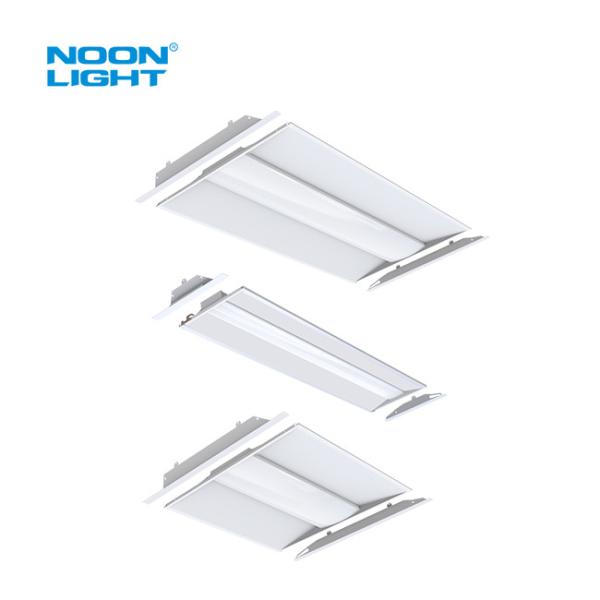

2835 SMD 347VAC Troffer Retrofit Kit For Commercial Spaces
2835 SMD 347VAC Troffer Retrofit Kit For Commercial Spaces
Specifications
Brand Name :
Noonlight
Model Number :
N-TR-SLK-2X2FT
Certification :
DLC / ETL / RoHS
Place of Origin :
China
MOQ :
200
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30+ working days
Packaging Details :
1pc/inner box, 4pcs/CTN,
Product Name :
2x4ft LED Troffer Retrofit
Power :
16W-20W-24W-27W Power Adjustable
Luminous Efficacy :
125lm/W
Housing :
24 Gauge Steel, Gloss White Painting, PC Lens
Light Source :
2835 SMD, CRI>80
Warranty :
5 years
Certificate :
DLC 5.1 Preminum
DLC Category :
Direct Linear Ambient Luminaires & Stairwell and Passageway Luminaires
Description

347VAC Troffer Retrofit Kit for Commercial Spaces

  • Noonlight LED Troffer Retrofit Kits are the ideal solution to update outdated fluorescent troffers into energy-efficient, contemporary LED systems. Each LED retrofit kit includes everything needed for a seamless installation without modifying the existing fixture mounting.
  • Wattage Tunable Troffer Retrofit UP TO 130LM/W
  • CLASS P Programmable LED Driver, 4 Step Power Adujustable,
  • CCT And Wattage Selective Troffer Retrofit Built-in PIR Sensor and Motion Sensor Options.
  • DLC5.1 Premium LED Troffer Retrofit Built-in Emergency Driver Option.

DLC5.1 Premium LED Troffer Retrofit Specification

Model No DLC Input Voltage Rated Wattage Lens Color Rated Lumen @ 30K

Rated

Efficancy

 Viewing Angle

Rated Lifetime

Replacing

N-TR-24-40-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 40W

Frosted

30K

35K

40K

50K

 5000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-24-34-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 34W Frosted

30K

35K

40K

50K

 4250LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescentcent

N-TR-24-25-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 26W

Frosted

30K

35K

40K

50K

3250LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-24-20-XX-WC1

 P

100-277VAC

or

100-347VAC

 20W

Frosted

30K

35K

40K

50K

2500LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent


Accessories

2835 SMD 347VAC Troffer Retrofit Kit For Commercial Spaces

2835 SMD 347VAC Troffer Retrofit Kit For Commercial Spaces

Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting

Specification

  • Input: 12-24VDC, >8ma
  • 0-10V DC output signal
  • Memeory function with one bottun commissiong.
  • Mounting Height: 3-4m.
  • Optional Daylight Harvesting

​

Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

2835 SMD 347VAC Troffer Retrofit Kit For Commercial Spaces

Power Adjustable Slide Switch Position

Size/Positon

0

1

2

3

1X4

27W

24W

20W

16W

2X2

27W

24W

20W

16W

2X4

40W

30W

25W

20W

Applications

Schools, offices, conference room, hospitality etc.
