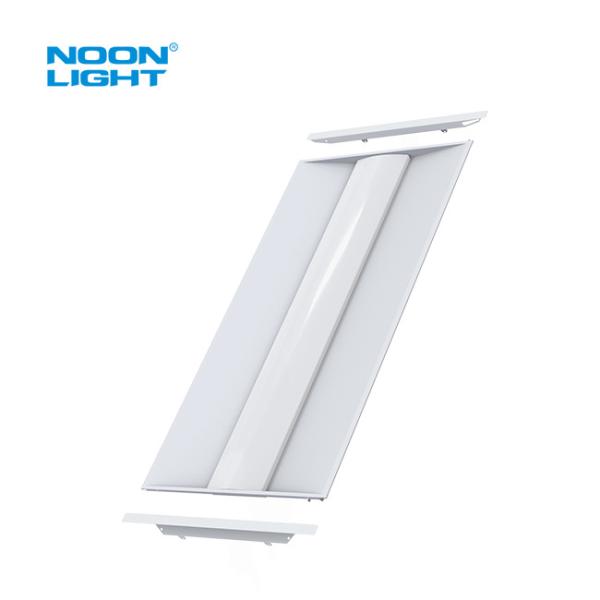

4FT Magnet Light Troffer Retrofit Kit Surface / Suspension Mounted
4FT Magnet Light Troffer Retrofit Kit Surface / Suspension Mounted
Specifications
Brand Name :
Noonlight
Model Number :
N-TR-SLK-2X2FT
Certification :
DLC / ETL / RoHS
Place of Origin :
China
MOQ :
200
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30+ working days
Packaging Details :
1pc/inner box, 4pcs/CTN,
Product Name :
2FTx2FT 128w Equivalent LED TROFFER LIGHT CCT & WATTAGE ADJUSTABLE
Input Voltage(V) :
AC 120-277VAC or AC 120-347VAC
Housing :
24 Gauge Steel, Gloss White Painting
Light Source :
2835 SMD, CRI>80
Installation :
Surface Mounted, Suspension Mounted
DLC Category :
Direct Linear Ambient Luminaires & Stairwell and Passageway Luminaires
Description

Troffer Retrofit kit LED Strip Kits 4FT magnet light

Description

  • Noonlight LED Troffer Retrofit Kits are the ideal solution to update outdated fluorescent troffers into energy-efficient, contemporary LED systems. Each LED retrofit kit includes everything needed for a seamless installation without modifying the existing fixture mounting.

Features

  • Flick Free Troffer LED Retrofit UP TO 130LM/W
  • CCT Tunable LED Troffer Retrofit CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
  • Minimize stock, 1 SKU can cover max. of 16 models.
  • Troffer Retrofit With Motion Sensor 5-100% 0-10V dimmable, flicker free, Dim to off.
  • Adjustable CCT Troffer Retrofit L70>50,000hrs, 5 year warranty.

Specification

Model No DLC Input Voltage Rated Wattage Lens Color Rated Lumen @ 30K

Rated

Efficancy

 Viewing Angle

Rated Lifetime

Replacing

N-TR-22-27-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 27W Frosted

30K

35K

40K

50K

3375LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-24-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 24W Frosted

30K

35K

40K

50K

3000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-20-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 20W Frosted

Ra>80,

30K

35K

40K

50K

2500LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-16-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 16W Frosted

Ra>80,

30K

35K

40K

50K

2000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent


Accessories

4FT Magnet Light Troffer Retrofit Kit Surface / Suspension Mounted

4FT Magnet Light Troffer Retrofit Kit Surface / Suspension Mounted

Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting

Default Setting/Setting

  • Sensitivity: 100%/25%, 50%, 75%, 100%
  • Daylight Sensor: Disable/Ambient Learn, 2lux, 10lux, 25lux, 50lux, 100lux, 300lux, Disable
  • Hold Time: 5min/30s, 90s, 5 min, 10min, 30min
  • Twilgith Time: never turn off/10s, 5min, 10min, 30min, 1h, never tun off
  • Twilight Level: 30%/off, 10%, 30%, 50%

Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

4FT Magnet Light Troffer Retrofit Kit Surface / Suspension Mounted

Power Adjustable Slide Switch Position

Size/Positon

0

1

2

3

2X4

40W

30W

25W

20W

Lighting Service

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

  • OEM/ODM Serivce
  • Photometric/IES file
  • PCB Design/Driver Design
  • Heat Management/Optical Design
  • Industry Design
  • Market Support
  • 3D Printing
  • Multiple Listing/Private Label.

4FT Magnet Light Troffer Retrofit Kit Surface / Suspension Mounted

Applications

Schools, offices, conference room, hospitality etc.

4FT Magnet Light Troffer Retrofit Kit Surface / Suspension Mounted
