Specifications
Brand Name :
Minvol
Model Number :
MH-G-2R2G2B-P25*50E
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200sqm/day
Delivery Time :
15-25 Days
Packaging Details :
negotiable
Price :
Negotiable
LED brand :
Epistar/ Cree
Power :
260W
Color :
RGB
Pixel pitch :
P25*50
Screen dimension :
Customized
Tube chip color :
Full Color
Usage :
Outdoor
Description
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
LED transparent screen has the characteristics of light weight, high brightness, high transparency and low wind loading, which breakthroughs many restrictions of building wall for traditional LED display. LED transparent screen integrates the advantages of high resolution, high quality and high gray level of conventional LED display, fully combines centralized coontrol and long-distance transmission technology, which have totally solved the transmission problem caused by signal interruption of LED display.
Product parameters:
Product Name: P25*50 LED blind screen
Item No.: MBP25F
Light Source Brand: Epistar
Light Source Model: 346 2R2G2B DIP
Size/Unit: 1200mm(L)*1000mm(H)
Viewing Angle: H120°/V60°
Power(W)/㎡: 250W/㎡
Average Power/㎡(W): 85W/㎡
Voltage: DC36-48V
Pixel Pitch(mm): 25mm(H)*50mm(V)
Light Bar Size(mm): 14mm*1200mm
Resolution: 20pixel*48pixel/Unit
LED quantity/㎡(PCS): 800PCS/㎡
Brightness(CD/㎡): ＞7500CD/㎡
Grey Scale: 65536
Refresh Rate(Hz): ＞5000Hz
Transparency: ＞72%
Weight: 6.8kg/Unit
Protection Grade: IP66
Operation Temperature: -20℃~45℃
Life Time: ≥50000 hours
Related Cert.: CE RoHS FCC

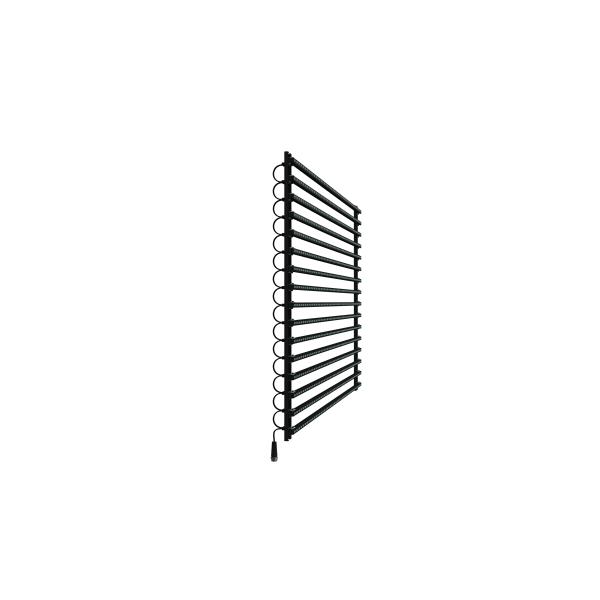

Product pictures:
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
Projects pictures:
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade

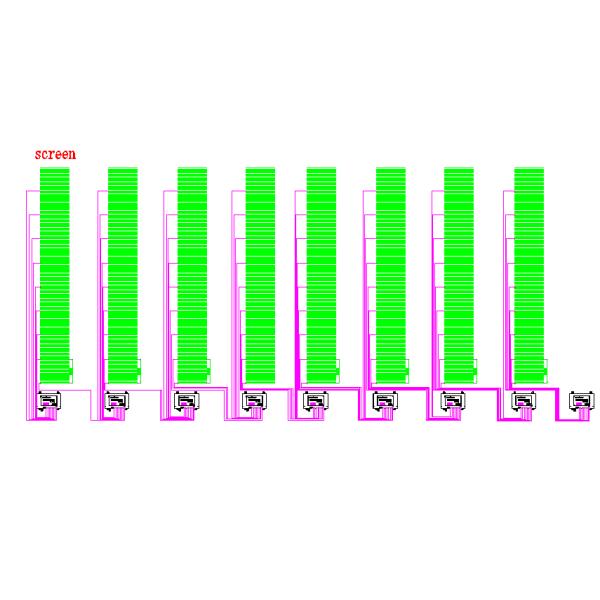

Control diagram
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
Exhibition pictures
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
P25 Outdoor Transparent LED Display building curtain led display LED Media Facade
