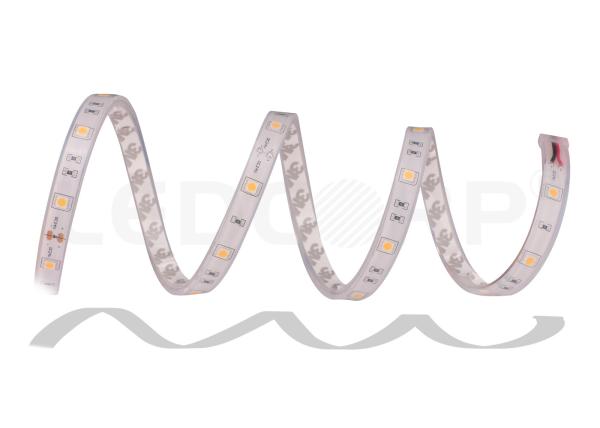

5050 30LEDs/m 150LEDs/roll 7.2w/m SMD LED Strip Roll Natural White LED Strip Light IP68 CE UL FCC Certification

Specifications

Brand Name :

LEDCORP

Model Number :

LC30-N5050-W/WW

Certification :

UL/CE/RoHS

Place of Origin :

China

MOQ :

250M

Price :

Welcome to your inquiry

Payment Terms :

T/T,PayPal

Supply Ability :

500,000m/month

Delivery Time :

15 days

Packaging Details :

500m/ctn

Led :

5050

Qty :

30 LEDs/m

IP :

IP20-68

CRI :

80-90

Voltage :

12/24V

Lumen :

25-30 lm/led

PCB :

10mm

Angle :

120°

CCT :

2400-6500K

Packing :

5 m/roll

SDCM :

4 SDCM

Lifespan :

>35000 hrs

Warranty :

3-5 yrs

Description

7.2w/m 5050SMD LED Strip Roll , 30 Natural White LED 5050 30.pdf

5050 30LED is 5m long flexible strip with5050SMD 150LED as source, 10/12mm white PCB (2Oz) in 12V, 10mm white PCB (2Oz) in 24V,6 whites (2200-6500K) and colors of R/G/B/Y/A/O/P/PP options, from IP20 to IP68 rated with 3M or clips mounted easily

Product advantages:

Color Consistency, only one bin
High Efficacy, 90-165lm/w
High CRI, 80+,90+,95+
Color purity: we use quality chip, phosphor golden wires and copper holder, make the SDCM<4
Long Lifespan: >35000 Hrs
No dark and uninterrupted Led strip
High brightness, low decay, low power consumption, LM-80 Tested
Be able to give soul space, and increase the dynamics of the space, making the space brighter.

Application area:

Backlight or edge lighting for signage
Cove lighting
Architectural lights for canopy, archway
DIY lights for home use
Path and contour marking
Decorative lights for house, event, show, exhibition, hotel

Technical details:

Details	Item	Unit	Specification
Physical data	LED type	SMD	5050SMD
	LED Qty /meter	LED/m	30
	Dimensions	mm	1025000 (WHL)
	Type of protection	IP	IP20 / IP65
	Working temperature	°C	0-40°C
Electrical data	Power	w/m	7.2
Electrical data	Voltage	VDC	12 (24 option)
Optical data	Luminous flux	Lm/m	578 - 621
	Beam angle	degrees	120
	Light color		Warm white/Natural white/White
	Color BINs		1 BIN
	Color temperature	K	Warm white:2400/2700-3000
			Natural white:4000-4500
			White: 5000-5500/6000-6500
	Color rendering index	CRI	80-90
Order reference	HS code		94054090
	Part. no		LC30-N5050-w/ww/nw-IP20-12/24
			LC30-W5050-w/ww/nw-IP65-12/24
			LC30-W5050-w/ww/nw-IP68-12/24

Dimension:

Installation:

5050 30LEDs/m 150LEDs/roll 7.2w/m SMD LED Strip Roll Natural White LED Strip Light IP68 CE UL FCC Certification

Packing details:

Part No.	HS code	Packaging unit	meters per box	reels per box	Dimensions(mm) LxWxH	Gross weight	Volume(cbm)
LC30-N5050-XX-IP20	94054090	One Pack	5m	1reel	15015012	0.11kg	0.00027
LC30-N5050-XX-IP20	94054090	Shipping carton box	250m	50reel	500350250	12kg	0.04375
LC30-W5050-XX-IP65	94054090	One Pack	5m	1reel	22022013	0.22kg	0.00063
LC30-W5050-XX-IP65	94054090	Shipping carton box	100m	20reel	500350250	12kg	0.04375

5050 30LEDs/m 150LEDs/roll 7.2w/m SMD LED Strip Roll Natural White LED Strip Light IP68 CE UL FCC Certification
