Aluminium IP66 100w Pole Lamp For Outdoor LED Garden Light With IK08 Protection And 220-240Vac Input Voltage
Aluminium IP66 100w Pole Lamp For Outdoor LED Garden Light With IK08 Protection And 220-240Vac Input Voltage
Specifications
Brand Name :
Die-casting Man
Model Number :
YAUB-09-90B
Certification :
CE, RoHs, ENEC, CB
Place of Origin :
CHINA
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability :
30000pcs/month
Delivery Time :
7-10 days based on order QTY
Packaging Details :
1pc/bag/foam/carton, pallet optional
Material :
Die Casting Aluminium
Power :
30-100W
Input Voltage :
220-240Vac
Optical Effect :
130~170 lm/w(Optional)
Protectin Grade :
IP66
Protection level :
IK08
Power Factor :
PF≥0.95
Color rendering index :
Ra≥70
Frequency Range :
50/60Hz
Working conditions range :
-40～45℃ 20%～90%RH
Size :
465x465x197 mm
Description

Products Description

Product Datasheet
Item No. YAUB-09B-90
Power 90W
Lumen Efficiency 130lm/w
Lumen 11700lm
Product Size (mm) 465X465X197
Electrical Data
Working Voltage AC100-265V 丨 50/60Hz
LED: Lumileds / Epistar / SANAN
CCT 3000K, 4000K, 5000K ,6000K
CRI Ra>70 (standard)/ Ra>80
Driver local
THD <15%
Power Factor(PF) PF>0.9
IP Rating IP66
IK Rating 1K09
Holder 50mm/B60mm (standard)
Body Material Hign pressure die-cast aluminum
Housing Calor Dark Grey/Black/Light Grey (availabel on request)
Cover Material UV-resistant Polycarbonate
Working Environment -20℃ ~+50℃ , 10%~90%RH
Lifespan L70 at 25℃ > 50,000hrs
Mounting Type Side entry or Vertical pole mounted ±15°
Dimmable 1-10V Dimming /Timer Dimming
Protecdion Class Class I (standard) / Class Ⅱ
Standards CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09
Available on request NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming
Reasonable tolerance

Watt: ±10%,CCT:±500K, Lumen efficiency: ±5%

Aluminium IP66 100w Pole Lamp For Outdoor LED Garden Light With IK08 Protection And 220-240Vac Input Voltage

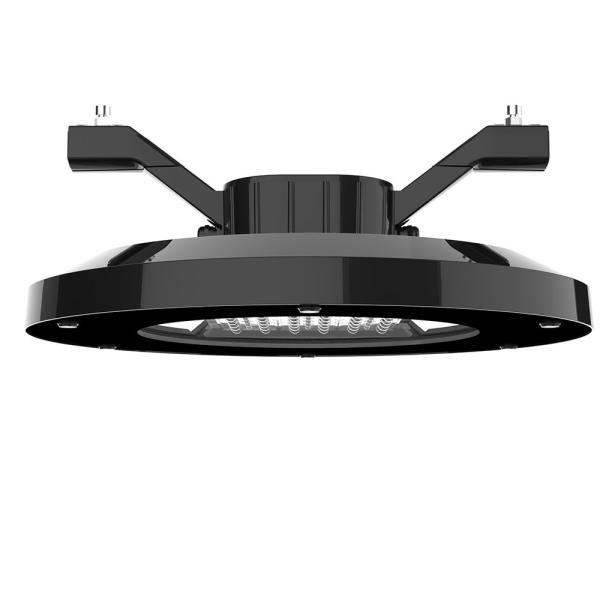

Product Photo

Aluminium IP66 100w Pole Lamp For Outdoor LED Garden Light With IK08 Protection And 220-240Vac Input VoltageAluminium IP66 100w Pole Lamp For Outdoor LED Garden Light With IK08 Protection And 220-240Vac Input Voltage
