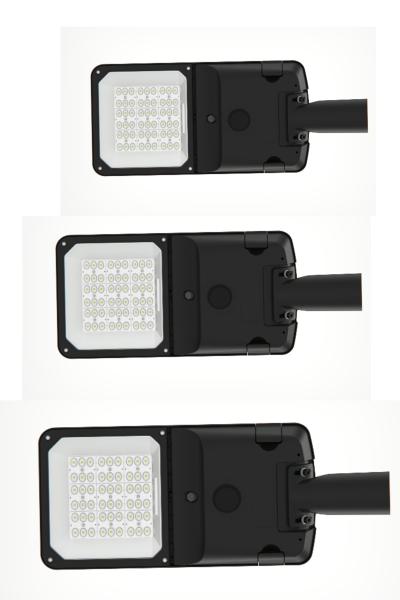

30W SL-29 Series LED Street Light Housing Ultra-High Luminous Efficiency Intelligent Control System
30W SL-29 Series LED Street Light Housing Ultra-High Luminous Efficiency Intelligent Control System
Specifications
Brand Name :
Die-casting Man
Model Number :
YASL-29-160
Certification :
CE, RoHs, ENEC, CB
Place of Origin :
CHINA
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability :
30000pcs/month
Delivery Time :
7-10 days based on order QTY
Packaging Details :
1pc/bag/foam/carton, pallet optional
Material :
Die Casting Aluminium
Power :
150-200W
Color rendering index :
Ra≥70
Protectin Grade :
IP66
Optical Effect :
130~190 lm/w(Optional)
Power Factor :
PF≥0.95
Size :
709*315*89 mm
Gross Weight :
7.4kgs
Net Weight :
7.9kgs
Protection level :
IK08/09/10
Description

Product Specification:

SL-29 series LED street lights provide complete lighting solutions for road and street.

Compliance with international standards ENEC, CB, CE, EMC, LM79, Rohs …

Full wattage from 30 to 300W, with ultra-high luminous efficiency and various lighting distribution

Intelligent control system: timing dimming, 0-10v dimming, Dali, Zigbee, NB-Lot, etc

Class I or ClassII both availble.

Model SL-29-40 SL-29-60 SL-29-100 SL-29-160 SL-29-240
Input Wattage (W) 30/40/50/60 50/60/70/80/90 80/90/100/120/150 150/160/180/200 200/240/260/300
Installation Pipe Diameter φ45/φ60mm φ45/φ60mm φ45/φ60mm φ45/φ60mm φ45/φ60mm
Installation Height (m) 3-6 4-8 6-10 8-14 12-14
Input Voltage 90~305Vac
Frequency Range 50/60Hz
Power Factor ≥0.9
Light source LED
Driver Inventronics
Meanwell (optional)
other brand of driver(upon request)
Luminaire efficacy (lm/W) 130-190
Color Temperature 4000K (3000K/5000K,5700K upon request)
Color rendering index ≥70
Diming Dali (optional)
1-10V (optional)
PWM (optional)
Smart control management system (upon request)
The environment temperature -40～45℃
Humidity of Working Condition 20%～90%RH
Protectin Grade IP66
Protection level IK08
Standards & Certifications ENEC(uncertificated)
CB(uncertificated)
CE(uncertificated)
Rohs(uncertificated)
Options Photocell
Surge protection
External cable (length upon request)
Smart control device
Meterials Housing: ADC12 die-cast aluminum
Cover: Toughened Glass
External Screws: 304 stainless screws
Color Grey/Black ( other upon request)

30W SL-29 Series LED Street Light Housing Ultra-High Luminous Efficiency Intelligent Control System

Customization:

Customized Service for High Power LED Street Light

Brand Name: Die-casting Man

Model Number: YASL-29

Place of Origin: Ningbo, China

CRI: Ra>80

Beam Angle: 120°

Power: 100W

Material: Aluminum Alloy

Size: 600*300*80mm

Hot Sale Energy Saving Dali Parking Garage Luminaires, Die Casting Man Aluminum Streetlamp, Pole Top Light 30w 40w 60w 90w

Packing and Shipping:

Packaging and Shipping

High Power LED Street Light products are securely packaged in a cardboard box to prevent damage during transport. The box is then sealed with a waterproof tape to protect it from moisture. It also includes an instruction manual for installation. The product is shipped using a reliable courier service and usually takes about 3-5 business days to reach the destination.
