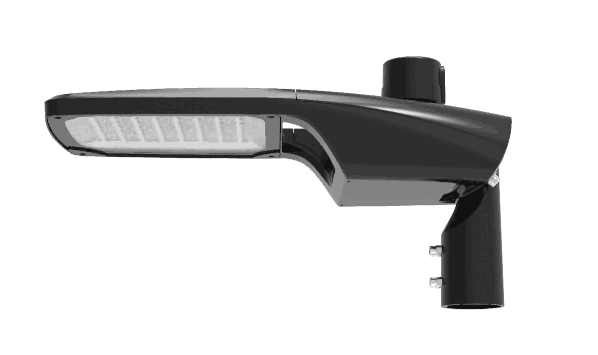

Outdoor LED Street Lights Featuring IP66 Protection and High Luminous Efficacy Suitable for Various Installation Heights
Outdoor LED Street Lights Featuring IP66 Protection and High Luminous Efficacy Suitable for Various Installation Heights
Specifications
Brand Name :
Die Casting Man
Model Number :
YASL-27-60
Certification :
CE, RoHs, ENEC, CB
Place of Origin :
Ningbo China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/month
Delivery Time :
7-40 days base on order quantity
Packaging Details :
Carton box with styrofoam package
Model :
YASL-27-60
Power :
60W
Installation Pipe Diameter :
φ45/60mm
Input Voltage :
90~305Vac
led chip :
3030 or 5050
Driver :
Inventronics, MOSO, SOSEN
Description
Outdoor LED Street Lights Featuring IP66 Protection and High Luminous Efficacy

Professional LED street lighting solutions designed for various installation heights with robust protection and intelligent control systems.

Product Overview

YASL-27 series LED street lights provide complete lighting solutions for road and street applications. These fixtures comply with international standards including ENEC, CB, CE, EMC, LM79, and RoHS.

Technical Specifications
Model YASL-27-60 YASL-27-120 YASL-27-200
Input Wattage (W) 30/40/50/60 80/100/120 150/200/240
Installation Pipe Diameter φ60mm φ60mm φ60mm
Installation Height (m) 3-8 6-10 8-12
Electrical & Performance Characteristics
  • Input Voltage: 90~305Vac
  • Frequency Range: 50/60Hz
  • Power Factor: ≥0.9
  • Light Source: LED
  • Driver Options: Inventronics, Meanwell (optional), other brands upon request
  • Luminaire Efficacy: 130-170 lm/W
  • Color Temperature: 4000K (3000K/5000K/5700K upon request)
  • Color Rendering Index: ≥70
Control & Dimming Options
  • DALI (optional)
  • 1-10V (optional)
  • PWM (optional)
  • Smart Control Management System (upon request)
  • Intelligent control features: timing dimming, 0-10V dimming, DALI, Zigbee, NB-Lot
Environmental Specifications
  • Operating Temperature: -40°C to 45°C
  • Working Humidity: 20% to 90% RH
  • Protection Grade: IP66
  • Impact Protection: IK08
  • Electrical Class: Class I or Class II available
Certifications & Standards
  • ENEC (uncertificated)
  • CB (uncertificated)
  • CE (uncertificated)
  • RoHS (uncertificated)
Optional Features
  • Photocell
  • Surge Protection
  • External Cable (length upon request)
  • Smart Control Device
Construction & Materials
  • Housing: ADC12 die-cast aluminum
  • Cover: Toughened Glass
  • External Screws: 304 stainless steel screws
  • Color: Grey/Black (other colors upon request)
Outdoor LED Street Lights Featuring IP66 Protection and High Luminous Efficacy Suitable for Various Installation Heights Outdoor LED Street Lights Featuring IP66 Protection and High Luminous Efficacy Suitable for Various Installation Heights
