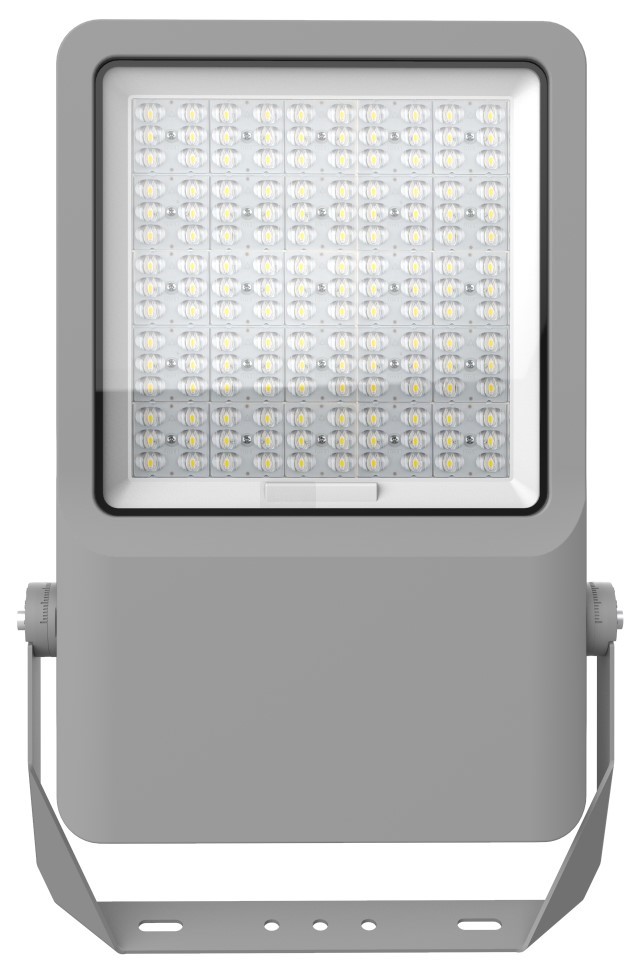

Outdoor Led Stadium Flood Light 100w 200w 400W football stadium floodlights
Outdoor Led Stadium Flood Light 100w 200w 400W football stadium floodlights
Specifications
Brand Name :
Die Casting Man
Model Number :
SLFR03-15
Certification :
CE, RoHs, ENEC, CB
Place of Origin :
Ningbo China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/month
Delivery Time :
7-40 days base on order quantity
Packaging Details :
Carton box with styrofoam package
Model :
SLFR03-15
Wattage :
50w
LED Lifetime :
50000h / Luxon 5050
CCT :
3000K, 4000K, 5700K, 6500K
Luminous Flux :
19500-22500lm
Warranty :
5 years
Description

Product Specification

1. special integrated structure, avant-garde design and stable and reliable quality

  • precision aluminium die-casting process, stable structure, good heat dissipation effect of lamp body.
  • the surface of the lamp body is specially sprayed, resistant to salt spray and corrosion, suitable for harsh and complex environments.
  • high efficiency SMD3030 lamp bead and high-quality constant current driver, reliable performance and long life.
  • the series has 5 different size, power from 50W-500W, wide coverage, high cost performance, and can be widely used to replace other high-power lamps.

2.with high transmittance PC lens, there are various light distribution angles such as 30°/60°/90°/TYPE II/TYPE III, which are suitable for different application scenarios.

Input voltageAC 100V-240V
Freqency range50HZ-60HZ
Power factor＞0.95
Chip brandEPISTAR/bridgelux/
Power brand/MeanWell/inventronics
LED quantity (3030 PLAN)30W (SLFR03-13)48PCS8S6P(16H1)
40W (SLFR03-13)48PCS8S6P(16H1)
50W (SLFR03-13)48PCS8S6P(16H1)
50W (SLFR03-15)64PCS8S8P(16H1)
60W (SLFR03-15)96PCS8S12P(6H1)
100W (SLFR03-110)144PCS8S18P(16H1)
150W (SLFR03-110)216PCS8S27P(6H1)
200W (SLFR03-120)256PCS8S32P(16H1)
240W (SLFR03-120)320PCS8S40P(6H1)
300W (SLFR03-140)432PCS8S54P(16H1)
400W (SLFR03-140)576PCS8S72P(16H1)
460W (SLFR03-140)720PCS8S90P(6H1)
LED quantity (5050 PLAN)30W (SLFR03-13)12pcs2S6P(6H1)
40W (SLFR03-13)12pcs2S6P(6H1)
50W (SLFR03-13)12pcs2S6P(6H1)
50W (SLFR03-15)24pcs2S12P(6H1)
60W (SLFR03-15)24pcs2S12P(6H1)
100W (SLFR03-110)54pcs2S27P(6H1)
150W (SLFR03-110)54pcs2S27P(6H1)
200W (SLFR03-120)96pcs2S48P(6H1)
240W (SLFR03-120)96pcs2S48P(6H1)
300W (SLFR03-140)144pcs2S72P(4H1)
400W (SLFR03-140)216pcs2S108P(6H1)
460W (SLFR03-140)216pcs2S108P(6H1)
16in1 lens Angle type:20*60°/20°/T1/T2/T3/T4/T5/30°/60°/90°/P50
6in1 lens Angle type:30°(5050)/60°/90°/ T2/T3
DRIVER Match with FR03-13XLG-25/XLG-50 EUC- 35/EUC-060
DRIVER Match with FR03-15SS-50U/SS-50H/SS-60H/XLG-50/XLG-75/EUC-60
DRIVER Match with FR03-110SS-100VA/SS-150VA/
EUM-100/EUM-150/XLG-100/XLG-150
DRIVER Match with FR03-120XLG-200/XLG-240/SS-200VA/EUM-200
DRIVER Match with FR03-1402PCS XLG-150/2PCS XLG-200/2PCS XLG-240
2 PCS SS-200VA / 2PCS SS-240VA
2PCS EUM-200 /2PCS EUM-240
System light effect120-130 lm/W
Power efficiency>90%
Color temperature2700-6500K
Color rendering indexRa≥70
Light distributionBats airfoil light distribution
Light designLens light distribution
LED Junction temperature≤ 90℃
Working temperature-30℃ — +50℃
Storage temperature-30℃ — +50℃
IP GradeIP66
Working life-span＞50,000H
Power connection lineBrownL
BlueN
Yellow/GreenG
Color of lamp shellBlack / Silver/Grey
Beam angle30/60/90/120/type II/type III/P50
