Diecasting Mould Ip65 Aluminium Led Street Light High Lumen
Diecasting Mould Ip65 Aluminium Led Street Light High Lumen
Diecasting Mould Ip65 Aluminium Led Street Light High Lumen
Diecasting Mould Ip65 Aluminium Led Street Light High Lumen
Specifications
Brand Name :
Die Casting Man
Model Number :
YASL-19-30
Certification :
CE, RoHs, ENEC, CB
Place of Origin :
NINGBO,CHINA
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
140000PCS/Month.
Delivery Time :
7-30 days base on order quantity
Packaging Details :
Carton box with foam
model no. :
YASL-19-30
power :
25w 35w 40w
body material :
diecasting aluminium
glass :
tempered glass 4mm
cable gland :
metal
screws :
stainless steel
Description
2021 High Lumen Custom Wholesale Diecasting Mould Ip65 Aluminium Led Street Light
Manufacturer custom wholesale die knife mould Aluminium led street light

Product description:

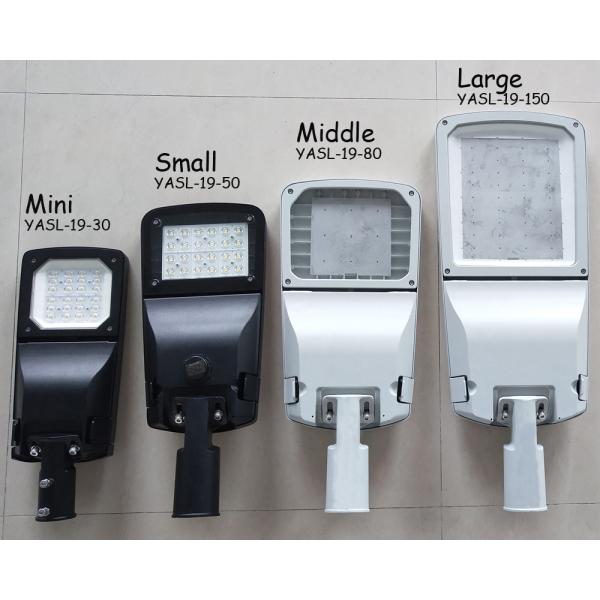

Product Code

YASL-19-30

YASL-19-50

YASL-19-80

YASL-19-150

Input Wattage

30W

50W

80W

150W

Color Temperature

3000-6500K

3000-6500K

3000-6500K

3000-6500K

Luminous Flux

3300-3750 lm

5500-6250 lm

9200-10400 lm

17250-19500 lm

Input Voltage

AC90-305V

AC90-305V

AC90-305V

AC90-305V

Frequency Range

50/60Hz

50/60Hz

50/60Hz

50/60Hz

Power Factor

PF≥0.95

PF≥0.95

PF≥0.95

PF≥0.95

Color rendering index

Ra≥70

Ra≥70

Ra≥70

Ra≥70

Temperature of Working Condition

-40-50℃

-40-50℃

-40-50℃

-40-50℃

Humidity of Working Condition

20%-90%RH

20%-90%RH

20%-90%RH

20%-90%RH

LEDLifetime

50000h

50000h

50000h

50000h

Protection Grade

IP66

IP66

IP66

IP66

Installation Pipe Diameter

⌀60mm

⌀60mm

⌀60mm

⌀60mm

Installation Height

4-6m

4-6m

6-10m

8-12m

Net Weight

3.0Kg

3.7Kg

6.0Kg

7.4Kg

Gross Weight

3.5Kg

4.2Kg

6.5Kg

8.0Kg

Packing Size(mm)

510×236×150

620×270×155

670×310×155

810×340×155



Product Adavantage
Model YASL-19 LED lamp is a sample and efficient product that significantly reduces energy,maintenance costs.
One of the features of this lamp is that it does not need tools to replace parts to upgrade it. Another feature of this lamp is the ability to install horizontally and vertically. Model YASL-19 LED light is available in four sizes and eight light distribution curves from 4500 to 27000 lumen. The YASL-19 LED lamp with an optical gain of up to 130 lumen per watt has a long life of more than 100,000 hours.The useful life of this lamp is at least 20 years.

Diecasting Mould Ip65 Aluminium Led Street Light High Lumen

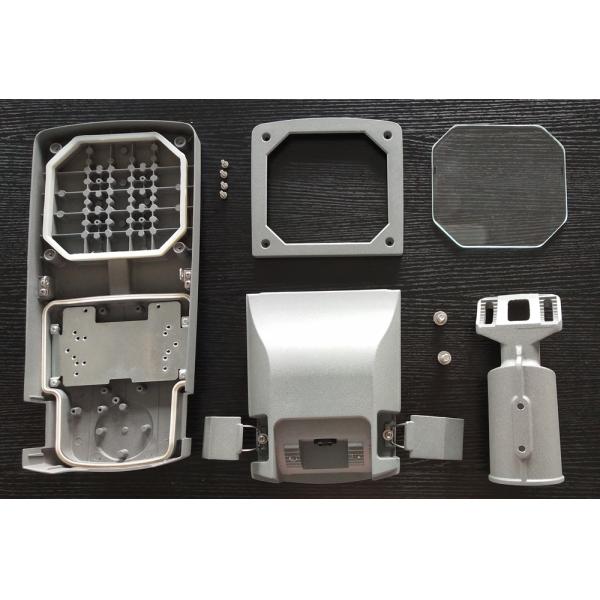

Street light empty housing kit including follow parts
Die casting housing shell, Frame , rotating bracket 60mm and 50 mm availble
silicone gasket x 2 pieces
tempered glass
gear tray or clips
screws and export safety package
Specification of SL19 family for your reference. Kindly notice this information are for your reference only
Diecasting Mould Ip65 Aluminium Led Street Light High Lumen
YASL-19-30M                   YASL-19-50M                         YASL-19-80M                       YASL-19-150M
Wattage could be
20W 30W 40W 50W        50W 60W 80W                     80W 100W 120W              150W 180W 200W 240W
Voltage
AC 100-260V or AC220-240V 50/60Hz
Efficiency
130 lm/W 140lm/W 150 lm/W 160 lm/W depends on your requirement
CRI
70 or 80
Protection Grade
IP65 on gear box and IP66 on led side
IK
IK08 or IK09 depends on your requirement
bracket size
50 or 60 mm available.
installing way
vertical and horizontal -15 degree to 15 degree
Colour tempreture could be
3000K 4000K 5000K 6000K
Driver
We could choice , Osram, Meanwell, Inventronics, Sosen, Moso..
LED
We could use  lumileds 3030, 5050, Osram 3030, 5050,
China local good quality 3030 or 5050
