Area Lighitng Industrial LED Street Light Fixtures Frame Die Casting Aluminum 305V
Area Lighitng Industrial LED Street Light Fixtures Frame Die Casting Aluminum 305V
Area Lighitng Industrial LED Street Light Fixtures Frame Die Casting Aluminum 305V
Area Lighitng Industrial LED Street Light Fixtures Frame Die Casting Aluminum 305V
Specifications
Brand Name :
no brand
Model Number :
YASL-18-30M
Certification :
CE, RoHs, ENEC, CB
Place of Origin :
NINGBO,CHINA
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, L/C, T/T, Western Union
Supply Ability :
10000PCS/Month.
Delivery Time :
7-30 days base on order quantity
Packaging Details :
Carton box with foam
Power :
20W 30W
Color :
Gray, Black, Silver
Input Voltage :
AC90～305V
color rendering index :
Ra≥70
Installation Pipe Diameter :
φ45/60mm
Driver :
3-5 years warranty
Description

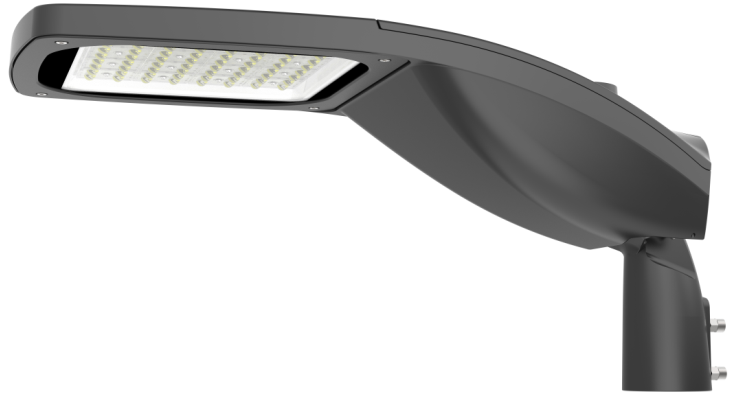

LED Street Light YASL-18-30M

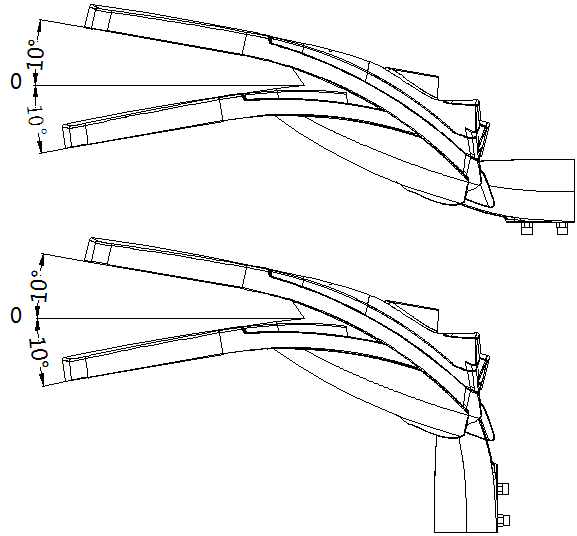

lnstalling Ways:

Both Horizontal and Vertical available and adjustable angle-10°to+10°

Area Lighitng Industrial LED Street Light Fixtures Frame Die Casting Aluminum 305V Area Lighitng Industrial LED Street Light Fixtures Frame Die Casting Aluminum 305V

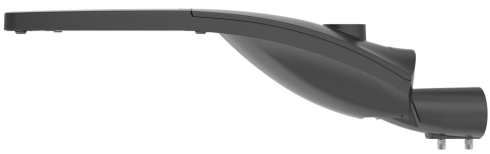

90 degree installation Fron
Area Lighitng Industrial LED Street Light Fixtures Frame Die Casting Aluminum 305V Area Lighitng Industrial LED Street Light Fixtures Frame Die Casting Aluminum 305V

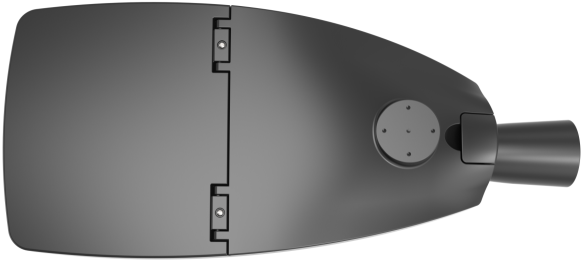

Back Side

Product Specification

Product Code YASL-18-30M
Input Wattage 50W
Color Temperature 2700～6500K
Luminous Flux 6500-7250lm
Input Voltage AC90～305V
Frequency Range 50/60Hz
Power Factor PF≥0.95
color rendering index Ra≥70
Temperature of Working Condition -40～50℃
Humidity of Working Condition 20%～90%RH
LED Lifetime 50000h
Protectin Grade IP66
Protection level IK08/09/10
Installation Pipe Diameter φ45/60mm
Installation Height 4-8m
Net Weight 3.0kgs
Gross Weight 3.5kgs
Packing Size(m m) 620*245*185

Input voltage AC 100V-240V
Freqency range 50HZ-60HZ
Power factor ＞0.95
Chip brand Multiple chip brand choices
Power brand Multiple power brand choices
LED quantity 80W 12H1 108PCS
100W 16H1 144PCS
120W 12H1 192PCS
150W 12H1 192PCS
200W 16H1 256pcs
System light effect 120-130 lm/W
Power efficiency >90%
Color temperature 2700-6500K
Color rendering index Ra≥70
Light distribution Symmetry light distribution
Light design Lens light distribution
LED Junction temperature ≤ 90℃
Working temperature -30℃ — +50℃
Storage temperature -30℃ — +50℃
IP Grade IP65
Working life-span ＞50,000H
Power connection line Brown L
Blue N
Yellow/Green G
Color of lamp shell DOUBLE GRAY /Black / Silver
Beam angle TYPE Ⅰ,Ⅱ,Ⅲ,Ⅳ,Ⅴ

LED Street Light YASL-18M

Product Description

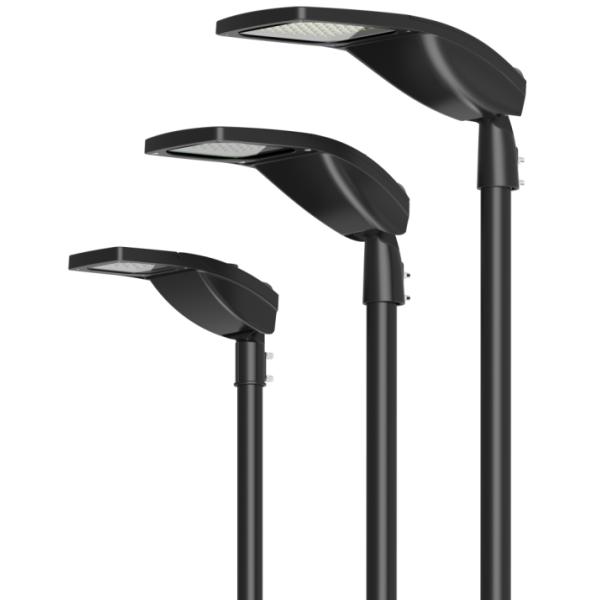

This series is a high-performance street lighting available in three sizes.

The lunimaire is manufactured from high pressure die-casting aluminum.

lt shall have a led efficiency up to 130 lm/w and will be capable of producing.

up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.

IP66 CE ROHS

Area Lighitng Industrial LED Street Light Fixtures Frame Die Casting Aluminum 305V

 Area Lighitng Industrial LED Street Light Fixtures Frame Die Casting Aluminum 305V Area Lighitng Industrial LED Street Light Fixtures Frame Die Casting Aluminum 305V

Photometric

DH-T1 DH-T3-M DH-T4-M DY-T3-M GY-T2-M01 GX-T2-M GX-T4-L HX-T2-S
DH-T2-L DH-T3-MA DH-T5-M GY-T1-M GY-T3-M01 GX-T3-M HY-T2-M HX-T2-M
DH-T2-M DH-T3-MB DY-T2-M GY-T2-M GX-T2-S GX-T4-M HY-T3-M HX-T3-M

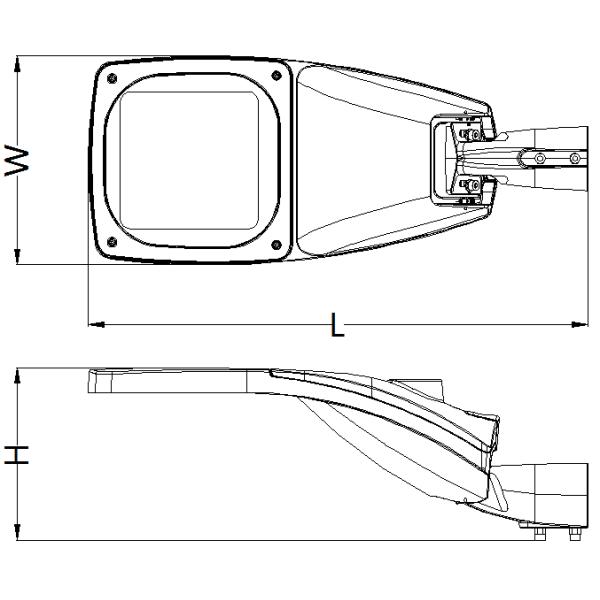

Product Size

Product Code YASL-18-30M
L(mm) 515
W(mm) 182
H(mm) 159

Area Lighitng Industrial LED Street Light Fixtures Frame Die Casting Aluminum 305V

Area Lighitng Industrial LED Street Light Fixtures Frame Die Casting Aluminum 305V
