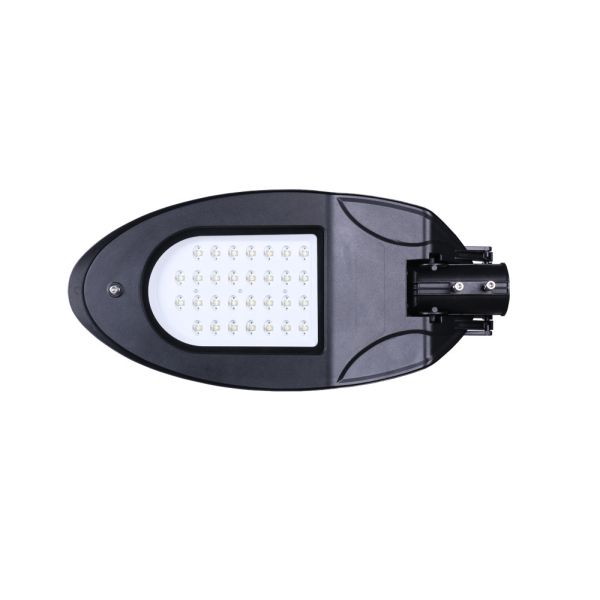

Road / Industrial Area LED Street Light Housing 100w Wattage Die Casting Aluminum Body
Road / Industrial Area LED Street Light Housing 100w Wattage Die Casting Aluminum Body
Road / Industrial Area LED Street Light Housing 100w Wattage Die Casting Aluminum Body
Road / Industrial Area LED Street Light Housing 100w Wattage Die Casting Aluminum Body
Road / Industrial Area LED Street Light Housing 100w Wattage Die Casting Aluminum Body
Road / Industrial Area LED Street Light Housing 100w Wattage Die Casting Aluminum Body
Specifications
Brand Name :
Die Casting Man/OEM
Model Number :
ZHSL-05-80
Certification :
CE,ROHS, UL,SAA
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union
Supply Ability :
10000PCS/Month.
Delivery Time :
7-30 days base on order quantity
Packaging Details :
Carton box with foam
Manufacturer :
Ninghai Zhouhua Die Casting Co.,Ltd
Material :
GB102 Aluminum
Wattage :
100w
Fixture Color :
light grey
LED Color :
WW/NW/CW
CRI :
>70
Input Voltage :
AC85 - 265V
Frequency Range :
50 - 60Hz
Working Ambient Humidity :
10% - 90%
Working Ambient Temperature :
-30℃ - 50℃
Description

Universal Used Die Casting Aluminum LED Street Light Fixtures For Road & Industrial Area three size IP65

ZHSL-06

Installing Ways: Both Horizontal and Vertical available and adjustable angle-10°to 10°
Material:Die casting Aluminum body.
Ultra clear tempered glass

Product Details

Product Code ZHSL-06-40 ZHSL-06-80
Input Wattage 50W 100W
Color Temperature 3000-6500K 3000-6500K
Luminous Flux 5250-5500lm 10500-12500lm
Input Voltage AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70
Temperature of Working Condition 40-50℃ -40-50℃
Humidity of Working Condition 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h
Protection Grade IP66 IP66
Installation Pipe Diameter 50-60mm 50-60mm
Installation Height 4-8m 4-8m
Net Weight 3.7kg 6.5kg
Gross Weight 4.0kg 7.0kg
Packing Size(mm) 560×265×145 700×350×160


Application:

Motorways , Major roads, minor roads, roundabouts, crossings and industrial areas.

Available housing colors: Black, Grey, White.

Note: Additional wattages and configurations available upon request. Specifications are subject to change without notice.

Road / Industrial Area LED Street Light Housing 100w Wattage Die Casting Aluminum Body

Road / Industrial Area LED Street Light Housing 100w Wattage Die Casting Aluminum Body
