SMD Die Casting Aluminum Waterproof Ip66 Outdoor Road Light 150w High Brightness
SMD Die Casting Aluminum Waterproof Ip66 Outdoor Road Light 150w High Brightness
SMD Die Casting Aluminum Waterproof Ip66 Outdoor Road Light 150w High Brightness
SMD Die Casting Aluminum Waterproof Ip66 Outdoor Road Light 150w High Brightness
Specifications
Brand Name :
Die-casting Man
Model Number :
YASL-21
Certification :
CE, RoHs, ENEC, CB
Place of Origin :
CHINA
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability :
30000pcs/month
Delivery Time :
7-10 days based on order QTY
Packaging Details :
1pc/bag/foam/carton, pallet optional
Power :
150W
Material :
Die Casting Aluminium
Color :
Customized
LED Lifetime :
50000h
Ik :
08
Protectin Grade :
IP66
Luminous Flux :
19500-21500lm
Input voltage :
AC90-305V
Power Factor :
PF≥0.95
color rendering index :
Ra≥70
Gross Weight :
9.3kgs
Net Weight :
7.85kgs
Packing Size（m m） :
836*266*155
Description

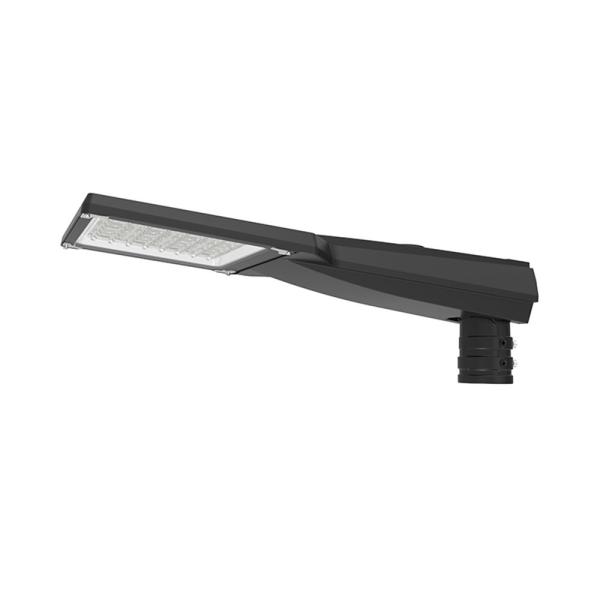

LED Street Light YASL-21

lnstalling Ways:

Both Horizontal and Vertical available and adjustable angle-10°to+15°

This series is a high-performance street lighting available in three sizes.

The lunimaire is manufactured from high pressure die-casting aluminum.

It shall have a led efficiency up to 130 lm/w and will be capable of producing.

Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.

 SMD Die Casting Aluminum Waterproof Ip66 Outdoor Road Light 150w High Brightness

Product Specification

Product Code YASL-21-40 YASL-21-80 YASL-21-150
Input Wattage 20W 30W 50W 60W 80W 100W 120W 150W 180W 200W 240W
Color Temperature 2700K 3000K 4000K 5000K 5700K 6500K
Luminous Flux 7800-8400lm 13000-15000lm 26000-28000lm
Input Voltage AC90~305V AC90~305V AC90~305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
color rendering index Ra≥70 Ra≥70 Ra≥70
Temperature of Working Condition -40~50ºC -40~50ºC -40~50ºC
Humidity of Working Condition 20%~90%RH 20%~90%RH 20%~90%RH
LED Lifetime 50000h 50000h 50000h
Protectin Grade IP66 IP66 IP66
Protection level IK08 IK09 IK10
Installation Pipe Diameter φ45/60mm φ45/60mm φ45/60mm
Installation Height 4-8m 6-12m 10-14m
Net Weight 3.3kgs 6.2kgs 7.6kgs
Gross Weight 3.8kgs 6.9kgs 8.0kgs
Packing Size(m m) 660*230*170 770*280*180 890*320*190
  SMD Die Casting Aluminum Waterproof Ip66 Outdoor Road Light 150w High Brightness

Photometric Data

SMD Die Casting Aluminum Waterproof Ip66 Outdoor Road Light 150w High Brightness

Our company exhibition

SMD Die Casting Aluminum Waterproof Ip66 Outdoor Road Light 150w High Brightness

Payment Terms:

1. Samples: Bank TT, 100% payment in advance;
2. Bulk order: Bank TT, 30% deposit and balance 70% settled before shipment.
Warranty: 5 years warranty

Delivery:

  • By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
    2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery;
    3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose this way

FAQ:

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 5-7 days.

Q3. Do you have any MOQ limit for led light order?

A: Regular 100 MOQ and we accept small order quantity from beginning.

Q4. Do you supply OEM and ODM service

A: Yes. we are.

Q5: Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to our products.

Q6: Do you supply empty house only without LED and driver.

A: Yes, we are.

SMD Die Casting Aluminum Waterproof Ip66 Outdoor Road Light 150w High Brightness

SMD Die Casting Aluminum Waterproof Ip66 Outdoor Road Light 150w High Brightness

SMD Die Casting Aluminum Waterproof Ip66 Outdoor Road Light 150w High Brightness
