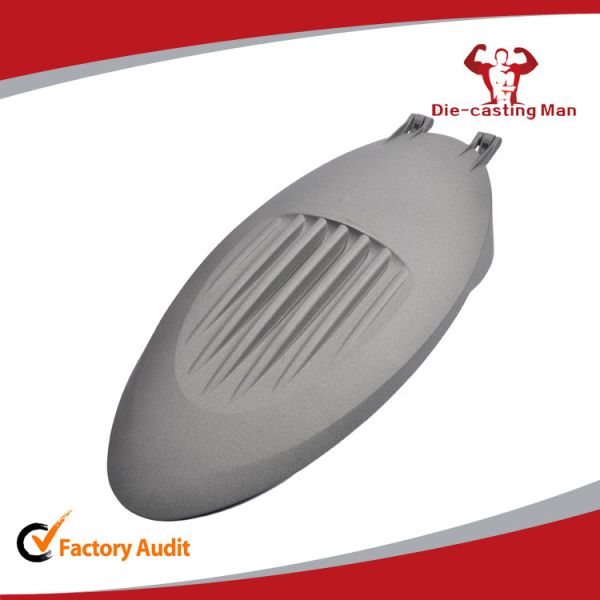

Universal Used Die Casting Aluminum LED Street Light Fixtures For Road & Industrial Area three size IP65
Universal Used Die Casting Aluminum LED Street Light Fixtures For Road & Industrial Area three size IP65
Universal Used Die Casting Aluminum LED Street Light Fixtures For Road & Industrial Area three size IP65
Universal Used Die Casting Aluminum LED Street Light Fixtures For Road & Industrial Area three size IP65
Universal Used Die Casting Aluminum LED Street Light Fixtures For Road & Industrial Area three size IP65
Universal Used Die Casting Aluminum LED Street Light Fixtures For Road & Industrial Area three size IP65
Universal Used Die Casting Aluminum LED Street Light Fixtures For Road & Industrial Area three size IP65
Universal Used Die Casting Aluminum LED Street Light Fixtures For Road & Industrial Area three size IP65
Specifications
Brand Name :
Die Casting Man/OEM
Model Number :
ZHSL-05-40 / 60
Certification :
CE,ROHS, UL,SAA
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union
Supply Ability :
10000PCS/Month.
Delivery Time :
7-30 days base on order quantity
Packaging Details :
Carton box with foam
Manufacturer :
Ninghai Zhouhua Die Casting Co.,Ltd
Material :
GB102 Aluminum
Wattage :
40W-60W
Fixture Color :
light grey
LED Color :
WW/NW/CW
CRI :
>70
Input Voltage :
AC85 - 265V
Frequency Range :
50 - 60Hz
Working Ambient Humidity :
10% - 90%
Working Ambient Temperature :
-30℃ - 50℃
Description

Universal Used Die casting Aluminum LED Street Light Fixtures For Road & Industrial Area

Part Number:

ZHSL-05-40 /60

Production Lead Time:

7-30 Days

Shipping:

EXW / FOB NINGBO

Quantity:

10pcs

Finish Color: Light Gray (Standard) , White, Black.

Features:

  1. Shell is made of cast aluminum alloy, with enough strength and good shock resistance.
  2. Shell surface is spraying with high voltage electrostatic plastics, has beautiful appearance and good corrosion resistance.
  3. Using high transparence glass lens, which is sturdy and durable.
  4. IP Rating: IP65
  5. Anti-electric shock Rate: Class I.
  6. Adopt import LED, such as Cree, Bridgelux, Epistar, with stable performance and long lifetime.
  7. The complete lamp passed GS, TUV, SEMKO, FIMKO and CE certification test.

Technical Specifications

Product Dimension:

Item NO. ZHSL-05-40 ZHSL-05-60 ZHSL-05-120
LED Quantity 18pcs 54pcs 80pcs
Rated Power 30W 80W 120W
Color Temperature 2700-6500K 2700-6500K 2700-6500K
Initial Luminous Flux 3000LM 8000LM 12000LM
Input Voltage AC100-240V AC100-240V AC100-240V
Frequency Range 50-60Hz 50-60Hz 50-60Hz
Power Factor PF>0.95 PF>0.95 PF>0.95
Color Rendering Index Ra>70 Ra>70 Ra>70
Temperature Working Condition -40℃ - 50℃ -40℃ - 50℃ -40℃ - 50℃
Humidity of Working Condition 20-90% 20-90% 20-90%
LED Lifetime 50000h 50000h 50000h
Protection Grade IP65 IP65 IP65
Installation Pipe Diameter 60mm 60mm 60mm
Installation Height 6-8m 6-8m 6-8m
Net Weight 2.9kgs 5.5 kgs 9.5 kgs
Gross Weight 3.3kgs 6 kgs 10.5kgs
Packing Size 52*28*14 cm 71*35*16 cm 91.5 x42x19 cm


Application:

Motorways , Major roads, minor roads, roundabouts, crossings and industrial areas.

Available housing colors: Black, Grey, White.

Note: Additional wattages and configurations available upon request. Specifications are subject to change without notice.
