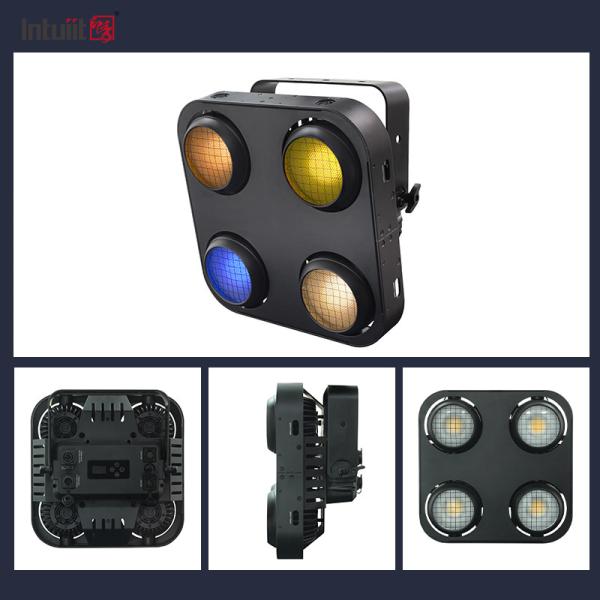

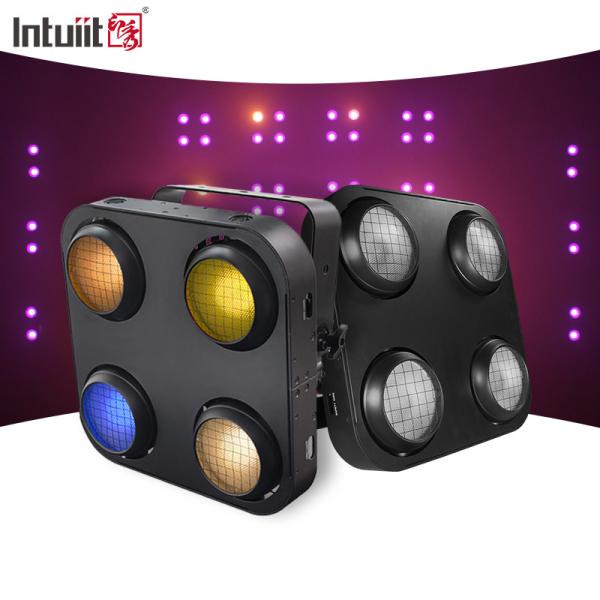

FX-300P LED Blinder Effect Light Overview
Key Features
- Versatile Applications: Designed for professional stage performances, live shows, and TV stations.
IP Rating
- Water and Dust Protection: IP65 rating ensures the fixture is dust-tight and protected against water jets, making it suitable for outdoor use in various weather conditions.
LED Configuration
- Four Eyes: Each equipped with a 90W RGB 3-in-1 Amber/Warm White COB LED.
- Color Mixing: Offers versatile color mixing options to create a wide range of vibrant and dynamic lighting effects.
Pixel Control
- Individual LED Control: Enables intricate and customized lighting patterns, allowing for creative and visually stunning designs.
Beam Angle
- 40-Degree Coverage: Distributes light evenly, ensuring well-distributed lighting effects across the stage or set.
Adjustable Color Temperature
- Range: 1800K to 5000K, providing flexibility to create warm or cool lighting effects tailored to specific needs.
Connectivity
- DMX and RDM Functionality: Allows integration into lighting control systems for seamless synchronization with other fixtures.
- Reliable Connectors: IP-rated 5-pin (3-pin) Seetronic DMX and PowerCon connectors minimize the risk of accidental disconnections.
User Interface
- OLED Display: Provides a clear visual interface for easy access to settings.
- 4-Touch Button Control Panel: Facilitates quick configuration and customization of light settings.
Summary
The FX-300P LED Blinder Effect Light combines powerful performance with versatile color options and user-friendly controls. Its weather resistance and advanced features make it an ideal choice for professional lighting applications in outdoor settings, ensuring reliable and dynamic lighting for stage performances, live shows, and TV stations.
Technical Data
Item No. | FX-300P |
Light Source | 4Pcs*90W Amber+Warm white 2-in-1 LED (Prolight) |
Max.Power | 468W |
Work voltage | 100-250V |
Beam angle | 40Degree |
Luminous flux | 18446LM |
Control Protocal | DMX/RDM |
DMX Channels | 7/9/20/23/27CH |
IP Grade | IP65 |
Product's dimension | 398*398*218MM |
Net Weight | 11KG |
Gross Weight | 13.2KG |





Light Distribution Data

Dimension

Installation Diagram
