High Power (400W):
Features 40 pieces of 10W RGBW 4-in-1 LEDs, providing significant brightness ideal for large areas and stages.
Excellent Color Mixing:
The RGBW configuration offers a wide range of vibrant colors and white tones, enabling dynamic lighting effects for various settings.
Multiple Beam Angles (8°, 20°, 40°):
Adjustable focus and coverage area suitable for diverse applications and spaces.
IP65 Weather Resistance:
Protects against dust and water splashes, making it perfect for both indoor and outdoor use.
OLED Display and Touch Button Control:
User-friendly interface for easy navigation, with clear information on light settings for efficient management.
The MYLED-150 is widely used in:
Technical Data
| Item No. | MYLED-150 |
| Light Source | 40Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 400W |
| Work voltage | AC100-240V, 50-60Hz |
| Luminous flux | 9380lm |
| Control Protocol | DMX512, WDMX |
| DMX Channels | 4,6.8CH |
| IP Grade | IP65 |
| Product's dimension | 532*319*141MM |
| Net Weight | 12.3KG |







Light Distribution Data

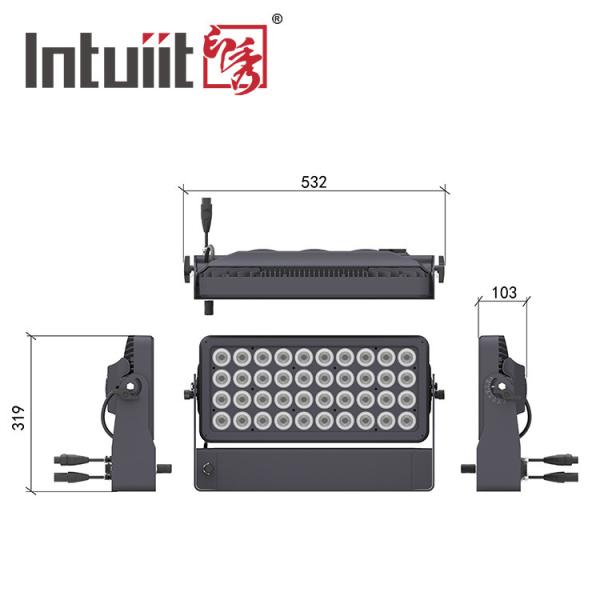

Product's Dimension

Installation Diagram
