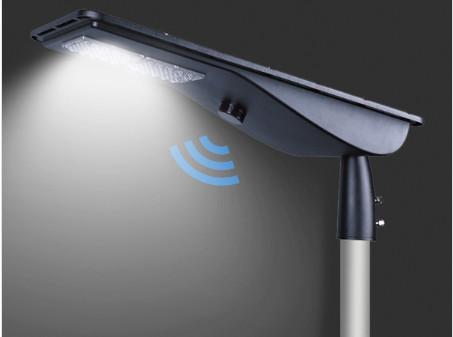

SSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum Housing
SSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum Housing
SSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum Housing
SSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum Housing
SSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum Housing
SSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum Housing
Specifications
Brand Name :
Dualrays SSL5 Solar Street Light
Model Number :
DR-ST030-DGXP
Certification :
CE ROHS SAA LM79 ENEC
Place of Origin :
China
MOQ :
50pcs
Price :
USD155.68 to USD203.58
Payment Terms :
T/T
Supply Ability :
50000 per month
Delivery Time :
5-8 work days
Packaging Details :
Neutral packing
System Efficiency/LPW :
130LPW/160LPW Optional
System Watts/W :
20W-30W-40W
Rated Input Voltage/V :
AC100~277V 50/60Hz
LEDs Light Source :
SMD3030/SMD5050 Optional
SDCM :
<6
CCT/K :
3000K/4000K/5000K/5700K/6500K
CRI/Ra :
>70Ra (>80Ra for Option)
Power Factor :
>0.95
LED Driver :
Meanwell ELG/HLG,Sosen
IP Rating :
IP66
Dimming(Optional) :
0/1-10V/PWM/DALI/Zigbee
Material :
Aluminum+PC+Toughened Glass
Description

Dualrays 40W 5000K IP66/IK08 160LPW All In One Solar Outdoor Led Street Light

SSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum Housing

SSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum Housing

Options:
  > Efficiency: 130LPW / 160LPW;    > Lens: 120°/TypeⅡ(Medium)/TypeⅢ(Small)/TypeⅣ / TypeⅤ (Small);    > Power: 20W / 30W /40W;    > CCT: 3000K/ 4000K / 5000K / 5700K;    > Light pole adapter for different poles optional;    > Customized supported for special projects.

SSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum Housing

> Roadways,Sidewalk;
> Fence & Pathway;
> Campus & Garden;
> Farm & Ranch;

SSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum Housing

Model No. DR-SSL020-EGXP DR-SSL030-EGXP DR-SSL040-EGXP
System Watts/W 20W 30W 40W

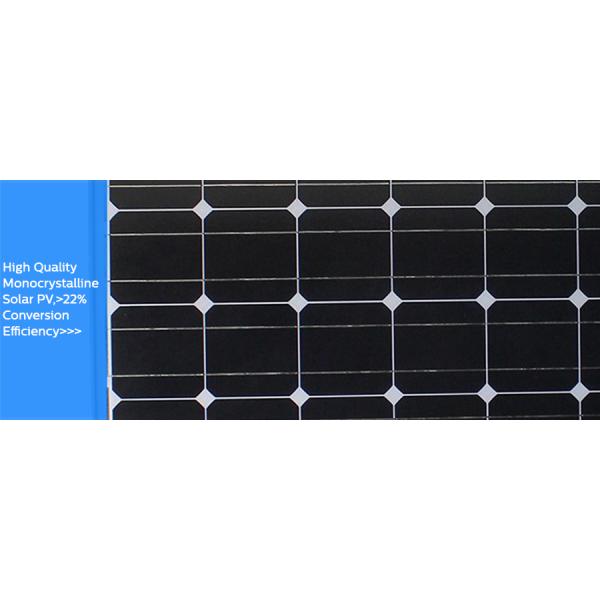

Solar PV (Monocrystalline) 21W 33W 40W
Battery (Lithium Iron Phosphate) 12.8V/20A 12.8V/30A 12.8V/40A
System Efficiency/LPW 130LPW / 160 LPW Optional
Lumen Output/lm 2.600/3.200±5% 3.900/4.800±5% 4.800/6.400±5%
LEDs Light Source SMD3030/SMD5050 Optional
Back UP (Intelligent Model) 4~5 Days
Back UP (Full Power) >12 Hrs
SDCM <6
CCT/K 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra >70Ra (>80Ra for Option)
Installation Height 4~8m
THD <10%
Beam Angle(Optional) 120°/TypeⅡ(Medium)/TypeⅢ(Small)/TypeⅣ /TypeⅤ (Small) Optional

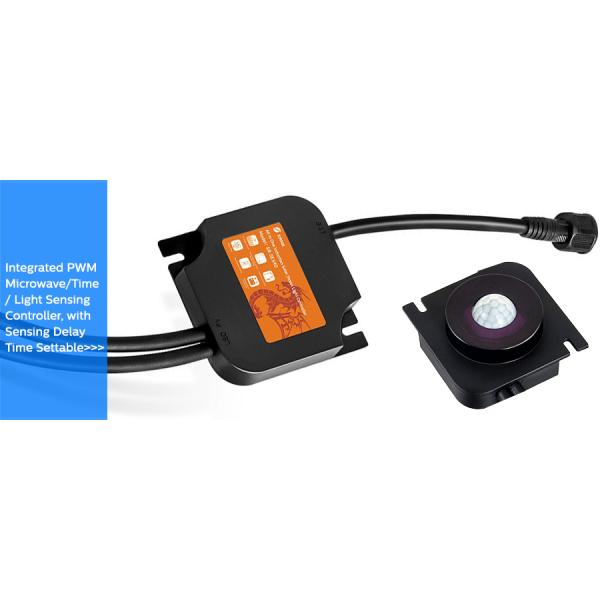

Control Mode Light Control + Microwave Sensor
IP Rating IP66
Finishing Color(Optional) Black RAL9017(Standard) / White RAL9016 Optional
Material Aluminum+PC+Toughened Glass
Lifespan/hrs 60.000 Hrs (Ta=30℃@L70)
Operation Temp/℃ -15°C to + 50°C(5°F to 122°F)
Storage Temp/℃ - 15°C to + 65°C(5°F to 149°F)
Pipe Diameter φ60mm
Certificate CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

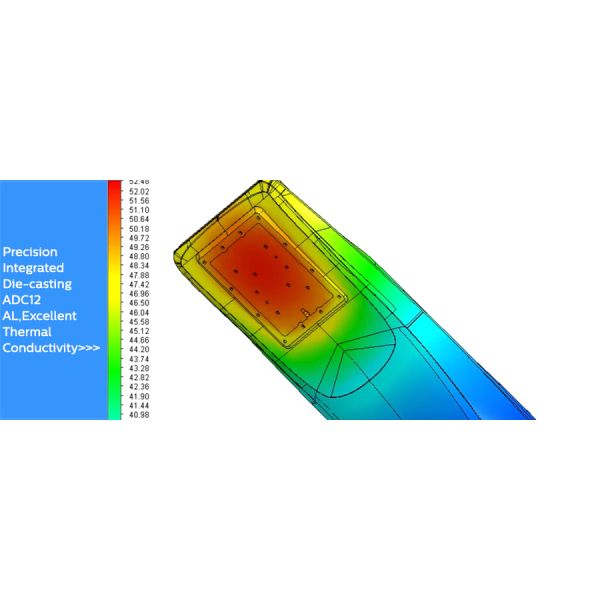

      > BASELine Version:    > STANDARDLine Version:    > PROLine Version: 130LPW    > PRIMELine Version: 160LPW    > No UV or IR and completely mercury free;    > L70/B20 @ 60.000h;    > Customized supported for special projects;    > LUMILEDS LUXEON SMD3030 LEDs: LM80/TM-21 Available;    > LM79/TM21/ISTMT/LCP and IES/LDT files available;    (150W S4 LED Street Light)    > Europe Market: CE(EMC+LVD),RoHS,TUV/GS,CB Pending,D-Mark;    > North American Market: ETL/CETL,DLC Premium Pending;    > Oceania Market: SAA,C-Tick,RCM      > High brightness LUXEON SMD3030/SMD5050 LEDs,energy efficient - up to 150 LPW;    > Die-casting Al for excellent heat dissipation;    > Superior PC reflector-optic for low glare applications, and toughened glass protection;    > IP66 and IK08 for road lighting application;    > Driver and housing separated by spacers;    > Professional TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ/TypeⅤ (Medium) optic    for option;    > ±15°/-90° lamp head adjustable;;    > No UV or IR and completely mercury free;    > L80/B10 @ 60.000h;    > 5 years warranty,7 years warranty negotiated;

SSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum HousingSSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum HousingSSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum Housing

SSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum Housing

SSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum Housing

SSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum HousingSSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum HousingSSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum HousingSSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum HousingSSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum HousingSSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum Housing

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.

SSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum HousingSSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum Housing

Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　

SSL5 Series Outdoor Solar Led Street Lights , 30W 160LPW P66,Aluminum Housing

(Partnership)

Contact person :Cila Zhang

E-mail:Sales08@dualrays.com

Wechat/whatsapp/Skype:+86-15710833783
