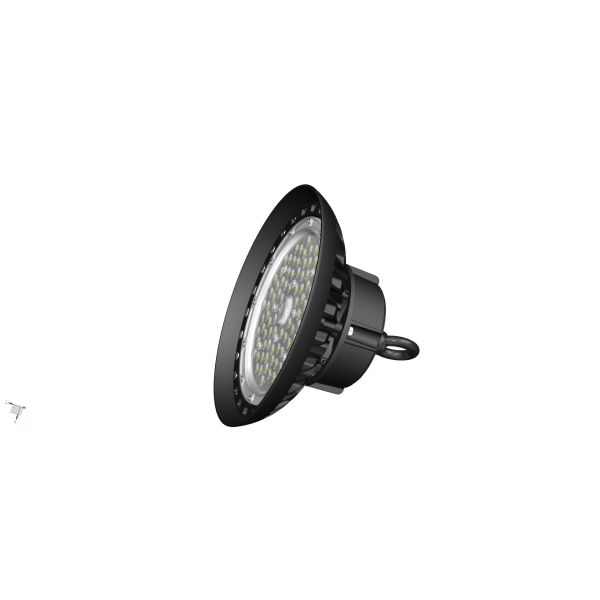

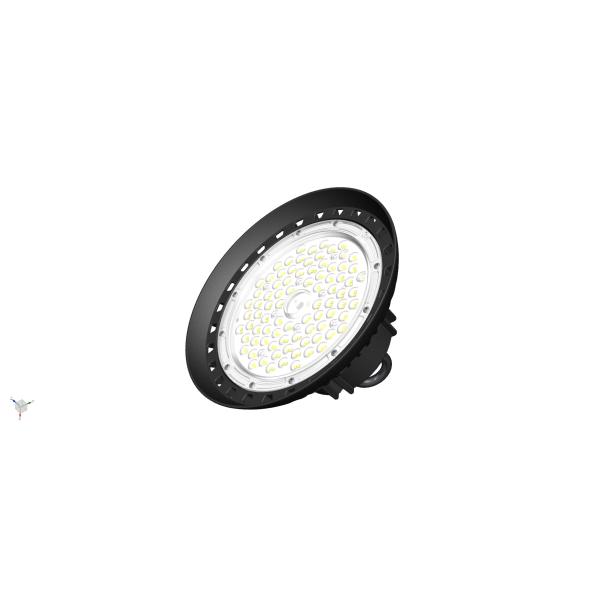

Dualrays LED UFO high bay light with 140LPW luminous efficacy best quality
Dualrays LED UFO high bay light with 140LPW luminous efficacy best quality
Dualrays LED UFO high bay light with 140LPW luminous efficacy best quality
Dualrays LED UFO high bay light with 140LPW luminous efficacy best quality
Dualrays LED UFO high bay light with 140LPW luminous efficacy best quality
Dualrays LED UFO high bay light with 140LPW luminous efficacy best quality
Dualrays LED UFO high bay light with 140LPW luminous efficacy best quality
Dualrays LED UFO high bay light with 140LPW luminous efficacy best quality
Specifications
Brand Name :
Dualrays
Model Number :
DR-HB100- CHGXP
Certification :
CE,RoHS,,D-Mark
Place of Origin :
China
MOQ :
2ps
Price :
USD35
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
7 days
Packaging Details :
Carton
Material :
Aluminum Alloy+PC
Power :
100W
Input Voltage :
AC200~240V 50/60Hz
LED quantities :
160pcs
Description

Dualrays LED UFO high bay light with 140LPW luminous efficacy best quality

High Brightness SMD2835 LEDs (1W), DUALRAYS Own-developed Driver;
> ADC12 Die-castign Al,Integrally Mold Forging,Excellent Thermal Conductivity；
> IP65 / IK08 Protection;
> 60°/90° /120° beam angle optional;
> Corrosive Resistant Powder Coated Finish;
> Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting;
> Various intelligent control: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;
> L70/B20 @ 60.000h;
> Customized supported for special projects;
Dualrays LED UFO high bay light with 140LPW luminous efficacy best quality
Model No.
DR-HB100-CGXP
DR-HB150-CGXP
DR-HB200-CGXP
System Watts/W
100W
150W
200W
System Efficiency/LPW
140LPW / 160LPW Optional
Lumen Output/lm
14.000 / 16.000±5%
21.000 / 24.000±5%
28.000 / 32.000±5%
Rated Input Voltage/V
AC100~277V, 50/60Hz
LEDs Light Source
SMD2835 (1W)
SDCM
<5
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>70Ra (>80Ra for Option)
Power Factor
>0.95
THD
<10%
Beam Angle(Optional)
60°/90°/120° Optional
UGR
<25
Surge Protection
3.75~4KV SPD built in Driver
LED Driver
DUALRAYS Own-developed High PF Non-isolated Driver
IP Rating
IP65
Dimming(Optional)
0/1-10V/Zigbee
Sensor(Optional)
Motion Sensor,Daylight Sensor
Emergency(Optional)
Available (30W @ 3Hrs for Standard)
Protection Class
ClassⅠ
Finishing Color(Optional)
Black RAL9017(Standard) / White RAL9016 Optional
Material
Aluminum+PC (Toughened Glass Cover Optional)
Lifespan/hrs
60.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)
Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
Dualrays LED UFO high bay light with 140LPW luminous efficacy best quality
